Io Hvac Controls Motor-LED Led Pcb for 3-wire Dampers

Product Description

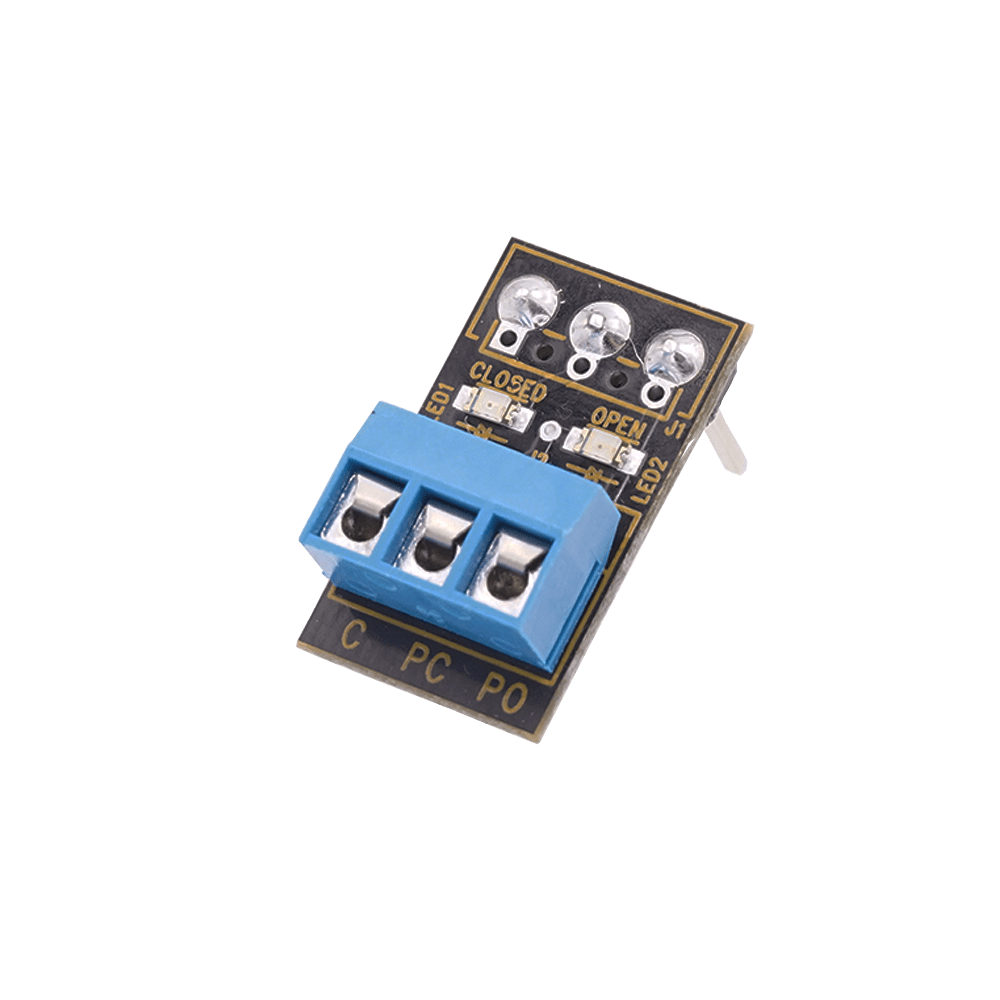

The IO HVAC CONTROLS Motor-LED is a compact LED printed circuit board designed as a status-indicator replacement for iO 3-wire zone dampers. The board mounts directly within the damper actuator assembly and provides a visual LED signal that allows technicians to confirm damper position and operational status at a glance during commissioning and service calls. Its small form factor - 0.625 inches wide by 1.125 inches tall by 1.125 inches deep - fits precisely within the iO damper housing without modification. At 0.01 pounds, the board adds negligible weight to the assembly. HVAC technicians performing zone control maintenance or actuator rebuilds will find this a straightforward component-level replacement.

The Motor-LED board is intended for use with iO 3-wire zone dampers in residential and light commercial zoning systems. These dampers are commonly installed in ducted forced-air HVAC systems where multiple zones are controlled independently via a zone control panel. The board is a field-replaceable component that restores LED status-indication functionality without replacing the entire actuator assembly, reducing material cost and downtime on a service call.

Key Features

• Direct LED status indication for iO 3-wire damper actuators
• Compact dimensions: 0.625 inches wide x 1.125 inches tall x 1.125 inches deep
• Lightweight at 0.01 pounds for easy in-place installation
• Component-level replacement reduces the need for full actuator swap-out
• Designed to fit iO damper housing without modification

Compatibility

Designed as an OEM-style replacement LED printed circuit board for iO 3-wire zone damper actuators.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage zone control systems. Disconnect power to the zone control panel and all associated damper actuators before handling any circuit board components. Take standard ESD precautions when handling the PCB to avoid damage to sensitive components. Verify damper actuator operation and LED function after reinstallation before returning the system to service.
