Io Hvac Controls LD-1212 Zone Damper 12x12 3 Wire

Product Description

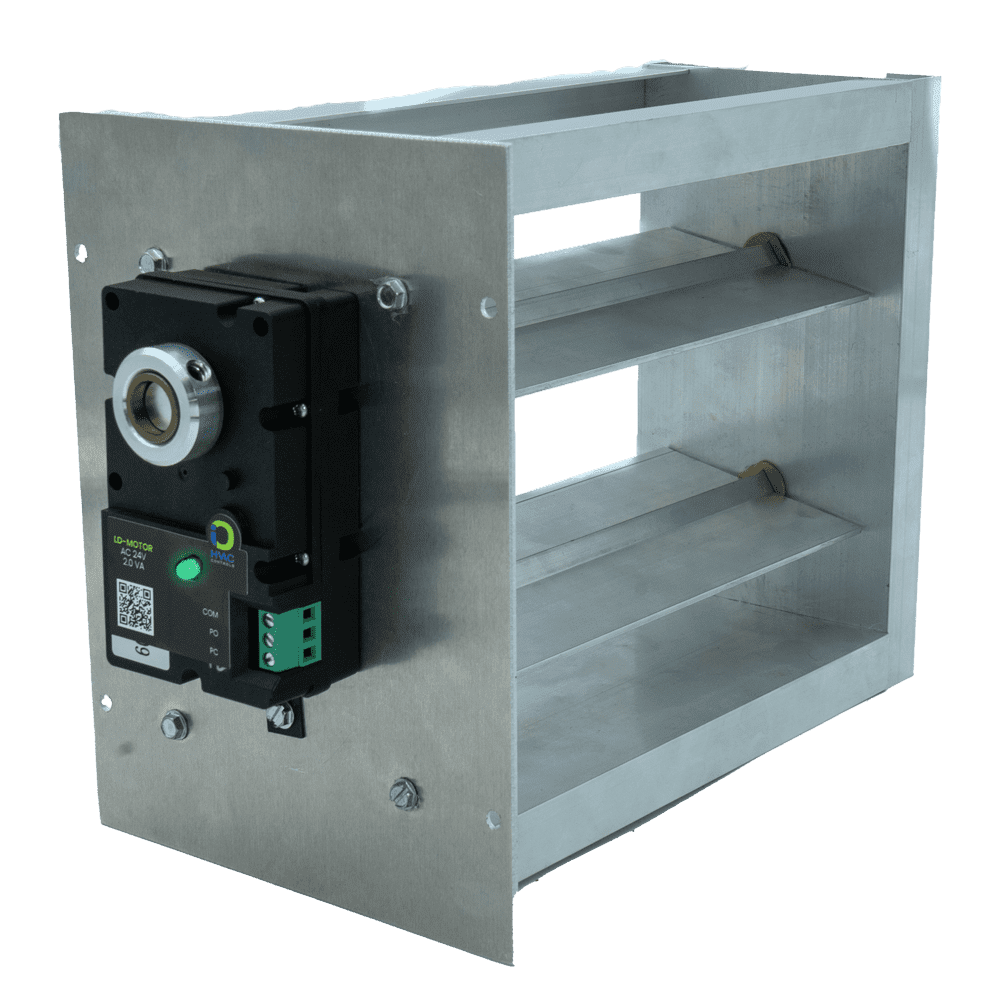

The IO HVAC CONTROLS LD-1212 is a 12-inch by 12-inch rectangular two-position zone damper designed for forced-air HVAC zoning systems. It ships with a 3-wire actuator and an integrated LED indicator, giving technicians a quick visual confirmation of blade position without removing an access panel. The damper opens and closes fully in response to a zone controller signal, directing conditioned air to the correct zone. Licensed HVAC technicians and mechanical contractors install this type of component when adding or servicing residential or light commercial zoning systems.

The LD-1212 fits a standard 12-inch by 12-inch rectangular duct opening, making it a practical fit for main trunk branches or larger branch ducts in residential forced-air systems. It is suited for new zoning installations as well as retrofit applications where an existing duct needs to be divided into independently controlled zones. The 3-wire actuator configuration is compatible with most two-position zone control boards that provide a common, open, and close signal.

Key Features

• 12-inch by 12-inch rectangular blade sized for standard duct openings
• Two-position operation - fully open or fully closed for accurate zone control
• 3-wire actuator included for direct connection to zone control boards
• Integrated LED indicator provides on-damper position status at a glance
• Rectangular construction compatible with rectangular sheet metal duct systems

Compatibility

Designed as an OEM-style replacement or new-installation zone damper for rectangular forced-air duct systems requiring two-position control with a 3-wire actuator interface.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with low-voltage zoning systems. Shut down the air handler and de-energize the zone control board before wiring the actuator. Secure the damper body to the duct per standard sheet metal practices and verify blade orientation relative to airflow before energizing. Refer to the zone controller manufacturer wiring diagram to confirm common, open, and close terminal assignments before making low-voltage connections.
