Io Hvac Controls D-Z1-1612 Zone Damper Assembly 16x12

Product Description

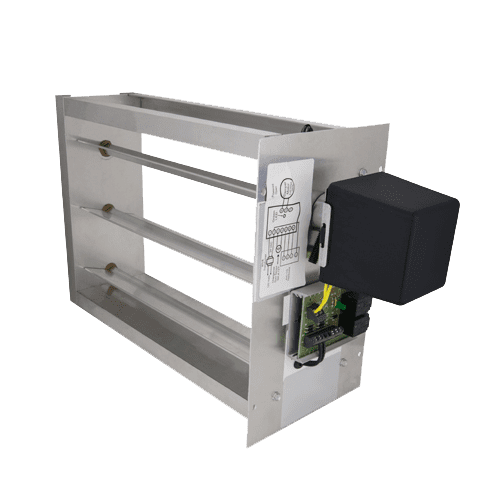

The IO HVAC CONTROLS D-Z1-1612 is a two-position zone one damper assembly designed for use in residential and light commercial HVAC zoning systems. The damper controls airflow through a duct section by switching between fully open and fully closed positions, allowing zone controllers to direct conditioned air only where it is needed. At 16 inches wide and 12 inches tall with a depth of 6 inches, this assembly fits standard rectangular duct applications. It is installed by licensed HVAC technicians as part of a multi-zone forced-air system and weighs 7.5 pounds.

This damper assembly is intended for zone one designation in a zoned forced-air HVAC system. It is suited for rectangular duct runs in residential new construction and retrofit zoning projects, as well as light commercial applications where two-position airflow control is required. The 16 x 12 inch face size accommodates common trunk and branch duct configurations. Installation is typically coordinated with a zone control panel and compatible thermostat circuits to achieve room-by-room temperature management.

Key Features

• Two-position operation: fully open or fully closed for precise zone airflow control
• 16 x 12 inch face dimensions fit standard rectangular duct sections
• 6 inch depth accommodates typical duct clearance requirements
• 7.5 pound assembly weight supports secure mounting in vertical or horizontal duct runs
• Zone one designation for use with multi-zone HVAC control systems

Compatibility

Designed as an OEM-style replacement or new-installation damper for rectangular duct zoning systems requiring a two-position zone one damper assembly.

Installation Notes

Installation should be performed by a qualified HVAC technician. Shut down the air handler and disconnect power to the zone control panel before installing or servicing this damper. The assembly must be secured to the duct with appropriate fasteners and sealed to prevent air bypass. Low-voltage wiring connections to the zone control board should follow the zone panel manufacturer's wiring diagram and applicable NEC guidelines.
