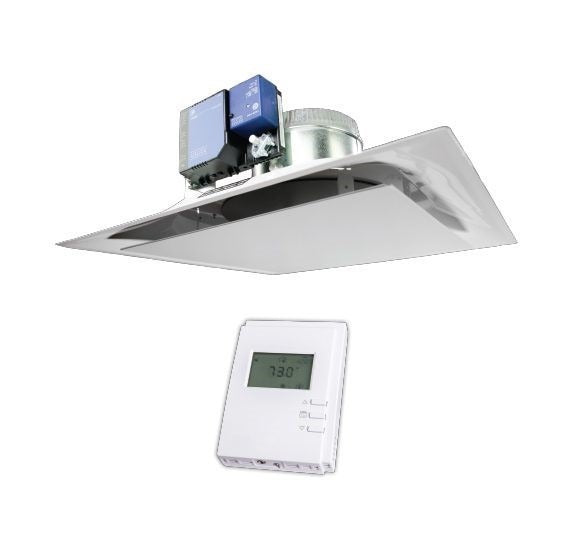

Io Hvac Controls BN-06 Bacnet Vav Diffuser 6 Inch Neck

Product Description

The IO HVAC CONTROLS BN-06 is a BACnet-compatible variable air volume (VAV) diffuser designed for direct integration into building automation systems. The unit ships complete with a 6-inch neck size diffuser, an onboard VAV controller, and a PC-25 programming cable, eliminating the need to source components separately. At 7.5 pounds and measuring 24.5 inches wide by 12.25 inches tall by 25.25 inches deep, this is a full-assembly solution built for ceiling installation in commercial and light-commercial HVAC zones. HVAC controls technicians and mechanical contractors are the primary installers.

The BN-06 is suited for commercial and light-commercial variable air volume applications where BACnet MS/TP or BACnet IP network integration is required. It is designed for use in VAV zone control scenarios where a ceiling diffuser, controller, and communication interface must work as a coordinated assembly. The included PC-25 cable allows direct connection to a laptop or building automation workstation for commissioning and configuration without additional interface hardware.

Key Features

• BACnet-compatible communication protocol for integration with standard building automation systems
• 6-inch neck size for compatibility with standard 6-inch VAV duct connections
• Onboard VAV controller included - no separate controller purchase required
• PC-25 programming cable included for field commissioning
• Complete factory assembly reduces field installation and wiring time

Compatibility

Designed as an OEM-style VAV diffuser assembly for commercial ceiling installations requiring BACnet-compatible zone control with a 6-inch neck duct connection.

Installation Notes

Installation should be performed by a licensed HVAC technician or mechanical contractor familiar with VAV systems and BACnet network configuration. De-energize the air handling unit and associated control circuits before beginning installation. Follow local mechanical codes and the project engineer's sequence of operations when configuring the controller via the included PC-25 cable. Verify duct neck alignment and secure all electrical connections before restoring power and commissioning the zone.
