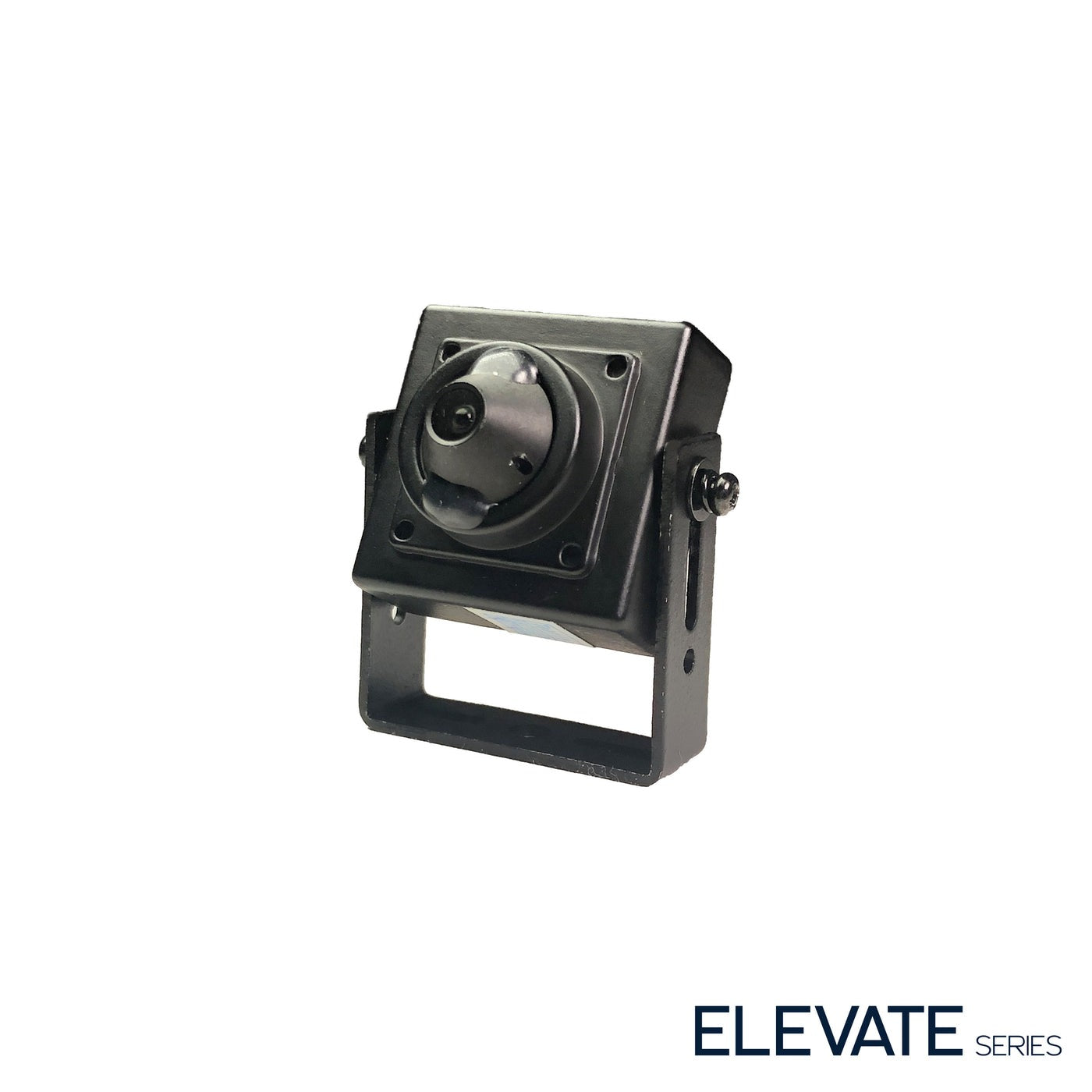

Invid Tech elev-all5mip 5MP Pinhole Camera Tvi Ahd Cvi Cvbs

Product Description

The INVID TECH elev-all5mip is a 5-megapixel covert pinhole camera designed for discreet fixed surveillance installations. It supports four analog video formats: TVI, AHD, CVI, and CVBS, making it compatible with a wide range of existing DVR systems without requiring a signal-matched recorder. The camera features a 2.8mm fixed lens and built-in infrared illumination for low-light and nighttime performance. Digital Wide Dynamic Range (D-WDR) processing handles scenes with mixed lighting conditions. Rated for operation down to -40 degrees C, this unit is suited for both indoor and outdoor covert deployments. Security installers and integrators are the primary trade audience for this product.

The elev-all5mip is intended for installations where a standard dome or bullet camera form factor would be conspicuous or impractical. Typical applications include retail loss prevention, office monitoring, and residential or light commercial security where the camera must be concealed within a ceiling tile, wall panel, or custom housing. The quad-signal output allows a single unit to serve across TVI, AHD, CVI, or CVBS systems, reducing the need for system-specific SKUs on a job site.

Key Features

• 5-megapixel resolution with TVI, AHD, CVI, and CVBS multi-format output
• 2.8mm fixed lens for wide-angle covert coverage
• Built-in infrared illumination for low-light imaging
• D-WDR for balanced exposure in high-contrast lighting environments
• Cold-rated operation down to -40 degrees C for demanding environments
• 12VDC power input compatible with standard security power supplies

Compatibility

Designed as a multi-format analog replacement or addition for DVR-based security systems supporting TVI, AHD, CVI, or CVBS signal standards.

Installation Notes

Installation is typically performed by a licensed security or low-voltage technician. Power down the DVR and disconnect all power to the camera circuit before wiring. The camera requires a 12VDC power source; verify polarity before connecting. Conceal the camera body within an appropriate housing or panel cutout and ensure the pinhole lens aperture is unobstructed and properly aimed before securing.

Technical Specifications

• Resolution: 5 Megapixels
• Video Formats: TVI, AHD, CVI, CVBS
• Lens: 2.8mm Fixed
• Dynamic Range: D-WDR
• Power Input: 12VDC
• Minimum Operating Temperature: -40 degrees C

Standard Information

• Brand: INVID TECH
• Manufacturer Part Number: elev-all5mip
