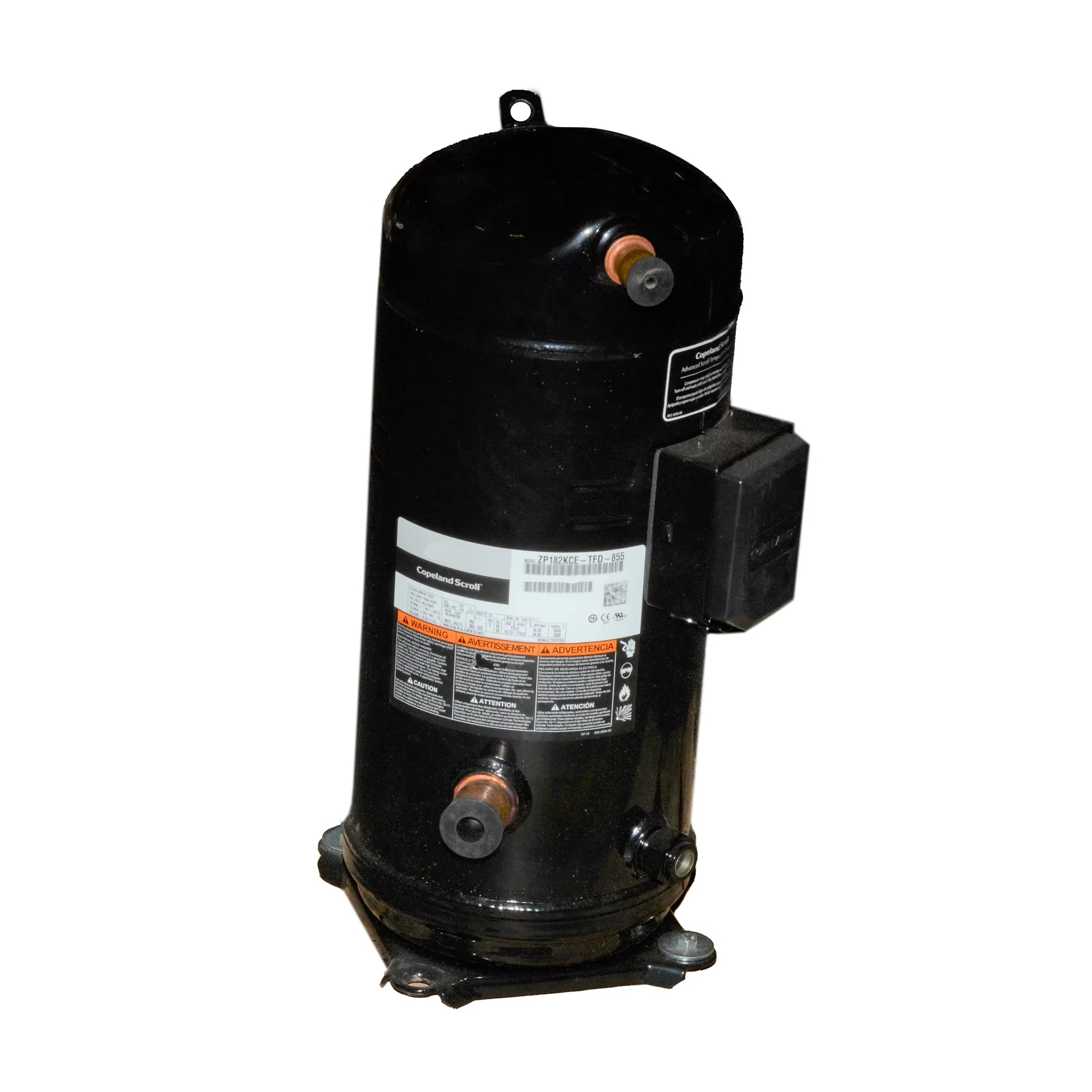

Copeland ZP182KCE-TFD-855 Scroll Compressor 183,000 Btu (10.20 in3/rev) ZP182KCE-TFD-855

Product Description

The Copeland ZP182KCE-TFD-855 is a scroll compressor for high-capacity HVAC applications rated at 183,000 Btu and compatible with R-410A and R-410B refrigerants. It is a three-phase hermetic unit with an input voltage range of 380-420/460 VAC, displacement of 10.20 in3/rev, and polyolester (POE) oil charge of 110 oz. Electrical ratings include a rated load amp of 29.3 and locked rotor amp of 179; sound level is 82–87 dBA.

• Electrical: three-phase, 380-420/460 VAC, 50/60 Hz; rated load amps 29.3; locked rotor amps 179.
• Refrigeration and lubrication: compatible with R-410A/R-410B refrigerants, uses polyolester (POE) oil; initial oil charge 110 oz; displacement 10.20 in3/rev; mass flow up to 2,690 lbs/hr.
• Construction and connections: hermetic scroll compressor, discharge stub 7/8" OD, suction line 1-3/8" OD, mounting dimensions 7.5" x 7.5" x 23.03"; sound level 82–87 dBA; UL listed.

Product Highlights

Three-phase hermetic scroll compressor; 183,000 Btu; 380-420/460 VAC; compatible with R-410A/B; 10.20 in3/rev.

Product Information

Standard Information

• Brand: COPELAND
• Manufacturer Part Number: ZP182KCE-TFD-855
• Country of Origin: USA
