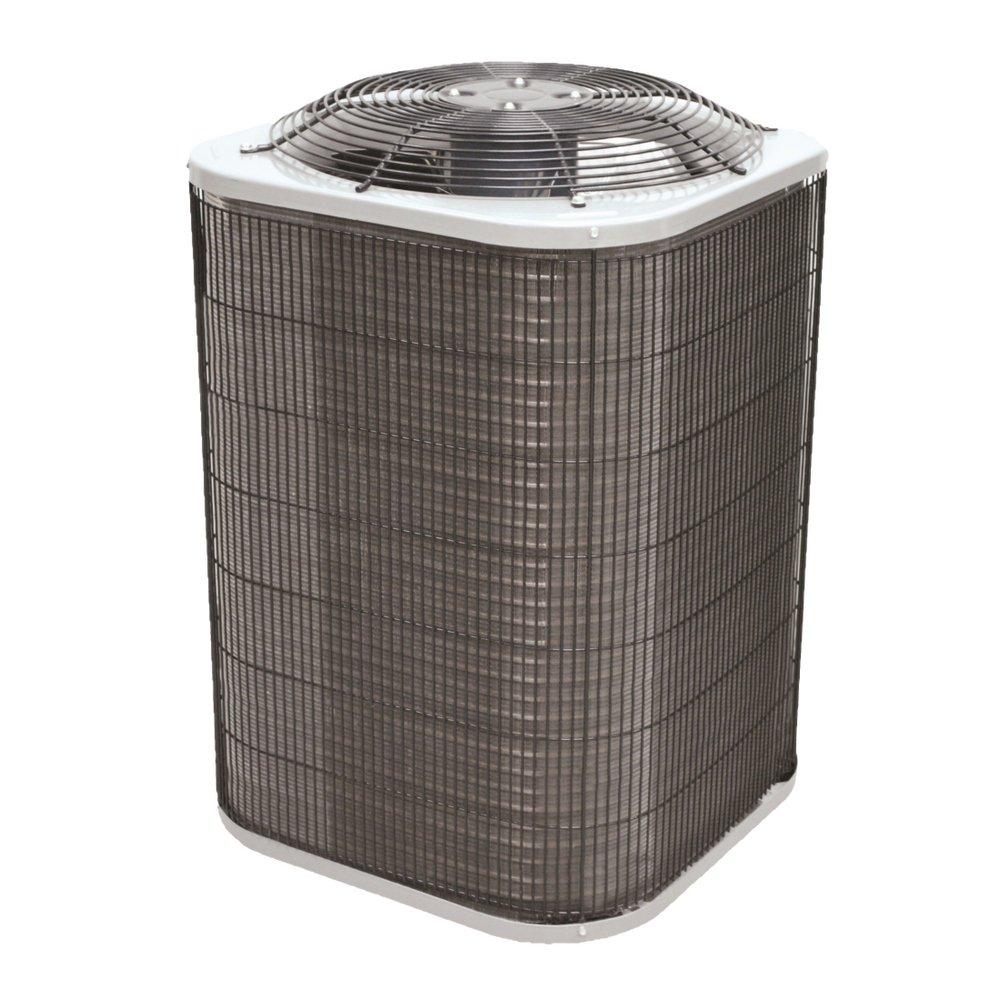

International Comfort Products R4A4S48AKANA Air Conditioning Condensing Unit Performance Series 4 Ton

Product Description

The International Comfort Products R4A4S48AKANA is an air conditioning condensing unit from the Performance Series with a 4-ton capacity. It features a scroll compressor and uses R-410A refrigerant, which is environmentally sound. The unit is constructed with durable sheet metal and a dense wire coil guard for protection.

• Environmentally sound R-410A refrigerant
• Durable sheet metal construction
• Dense wire coil guard

Product Highlights

This air conditioner provides reliable comfort with a budget-friendly design, featuring a single-stage scroll compressor for quiet operation.

Product Information

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: R4A4S48AKANA

Technical Specifications

• Refrigerant Type: R-410A
• SEER2 Rating: 16
• Manufacturer: International Comfort Products
• Manufacturer #: R4A4S48AKANA
• Number of Stages: 1
• Series: R-Series
• Voltage Rating: 208 / 230 V
• Domestic / Import: Domestic
• A2L Compatible: No
• AMP: 24.5
• BTU: 48000
• BTU Cooling Rating: 48000 Btu/h
• CFM: 3850
• Coil Type: Aluminum Fin
• Collection: R4A4 Series
• Communicating: Non-Communicating
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Decibel Rating (dB): 76 dB
• EER: 14.5
• EER2: 13.5
• EER2 Range: 11.7 - 23.0
• Energy Star Compliant: No
• Factory Std. Refrigerant Charge: 142.4
• Horsepower: 1/4 hp
• Liquid Line (OD): 3/8
• MBH: 48
• Max CFM: 3850
• Max Fuse Size: 40
• Phase: Single Phase
• RPM: 1100
• Refrigerant: R-410A
• Refrigerant Control: TXV
• Refrigeration Control Type: TXV
• SEER: 16.5
• Suction Line (OD): 7/8
• Tonnage: 4 Ton
• UL Listed: Yes
• Volts: 208/230V
