International Comfort Products cclv-6 A2L Charging Hose Kit

Product Description

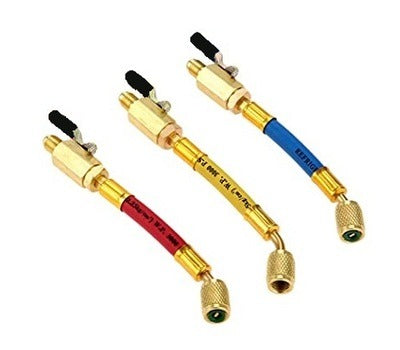

The INTERNATIONAL COMFORT PRODUCTS cclv-6 is a three-hose A2L Kobra charging hose kit designed for refrigerant system service on equipment using next-generation low-GWP refrigerants. The kit includes red, blue, and yellow hoses, each measuring 1/4 inch x 6 inches, fitted with integrated ball valves for positive shutoff during manifold gauge operations. The yellow hose features left-hand thread connections to comply with A2L refrigerant handling standards, preventing accidental cross-connection with standard fittings. Rated to 800 psi, these hoses are built to handle the higher working pressures associated with A2L refrigerants. Licensed HVAC technicians performing system charging, evacuation, or refrigerant recovery on A2L equipment will find this kit purpose-built for the task.

This charging hose kit is suited for residential and light commercial HVAC service work involving A2L classified refrigerants. The left-hand thread yellow hose is specifically intended for use with R454B and R32 refrigerant circuits, where industry safety standards require differentiated fittings to reduce misconnection risk. The red and blue hoses cover high-side and low-side manifold connections respectively. This kit is appropriate for use during system commissioning, refrigerant charging, and recovery operations on split systems, mini-splits, and heat pumps that use A2L refrigerants.

Key Features

• Three-hose kit: red (high side), blue (low side), and yellow (A2L service) included
• Hose size: 1/4 inch x 6 inches per hose
• Integrated ball valves on each hose for positive shutoff
• 800 psi working pressure rating for A2L refrigerant compatibility
• Left-hand thread on yellow hose per A2L refrigerant service requirements
• Compatible with R454B and R32 refrigerants

Compatibility

Compatible with R454B and R32 refrigerant systems. The left-hand thread yellow hose meets A2L refrigerant handling requirements. Designed for use with standard 1/4-inch manifold gauge sets used in A2L-rated HVAC service applications.

Installation Notes

Installation and refrigerant service must be performed by an EPA Section 608 certified HVAC technician. Always recover refrigerant and verify system pressure is at safe service levels before disconnecting or connecting hoses. Confirm left-hand thread fittings are used only on the designated A2L refrigerant port to prevent misconnection. Follow all applicable local codes and refrigerant handling regulations when servicing A2L equipment.

Technical Specifications

• Hose Size: 1/4 inch x 6 inches
• Working Pressure: 800 psi
• Hose Colors: Red, Blue, Yellow
• Thread Type (Yellow Hose): Left-hand thread
• Compatible Refrigerants: R454B, R32
• Refrigerant Classification: A2L
• Valve Type: Ball valve

Standard Information

• Brand: INTERNATIONAL COMFORT PRODUCTS
• Manufacturer Part Number: cclv-6
