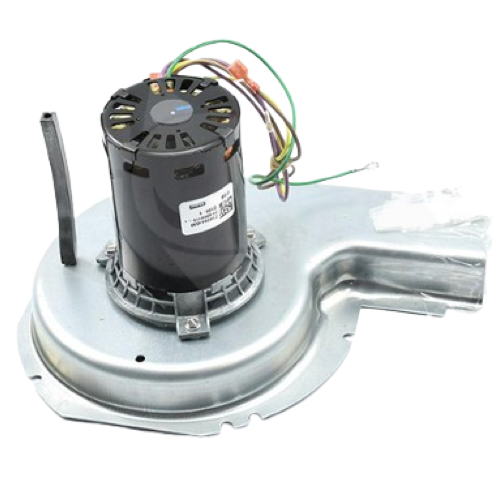

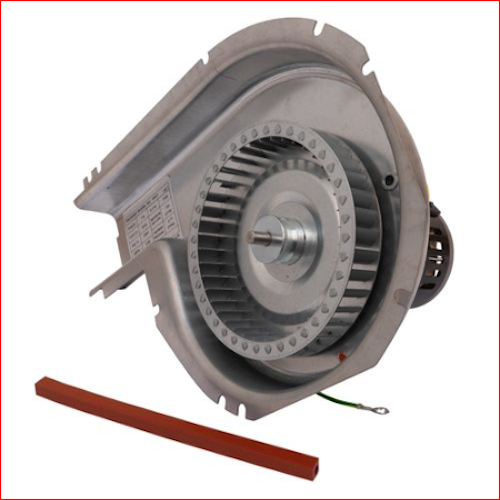

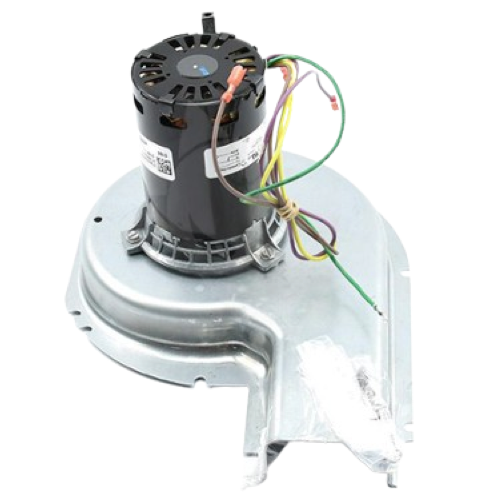

International Comfort Products 1178421 Draft Inducer Motor Assembly

Product Description

The International Comfort Products 1178421 Draft Inducer Motor Assembly is designed for use in various heating systems. This component serves as a direct replacement for International Comfort Products models such as Heil, Comfortmaker, Tempstar, Arcoair, and others. It replaces part numbers including 1178421, 1192142, 71626445, and 7162-6445.

• Operates at 208-230 volts and 60 Hz
• Includes a red pressure tube for easy installation
• Features automatic overload protection

Product Highlights

This motor assembly features a single-phase PSC motor with a counter-clockwise, standard efficiency rotation and ensures reliable performance for HVAC applications.

Product Information

Standard Information

• Brand: International Comfort Products
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/15
• RPM: 3180
• Amps: 0.68
• Insulation Class: B
• Lead Length: 15.75 inches
• Motor Rotation: CCWSE
• Overload Protection: Automatic
• Weight: 8.79 pounds
• Dimensions: 10.2 inches length x 13.6 inches width x 13.55 inches height
