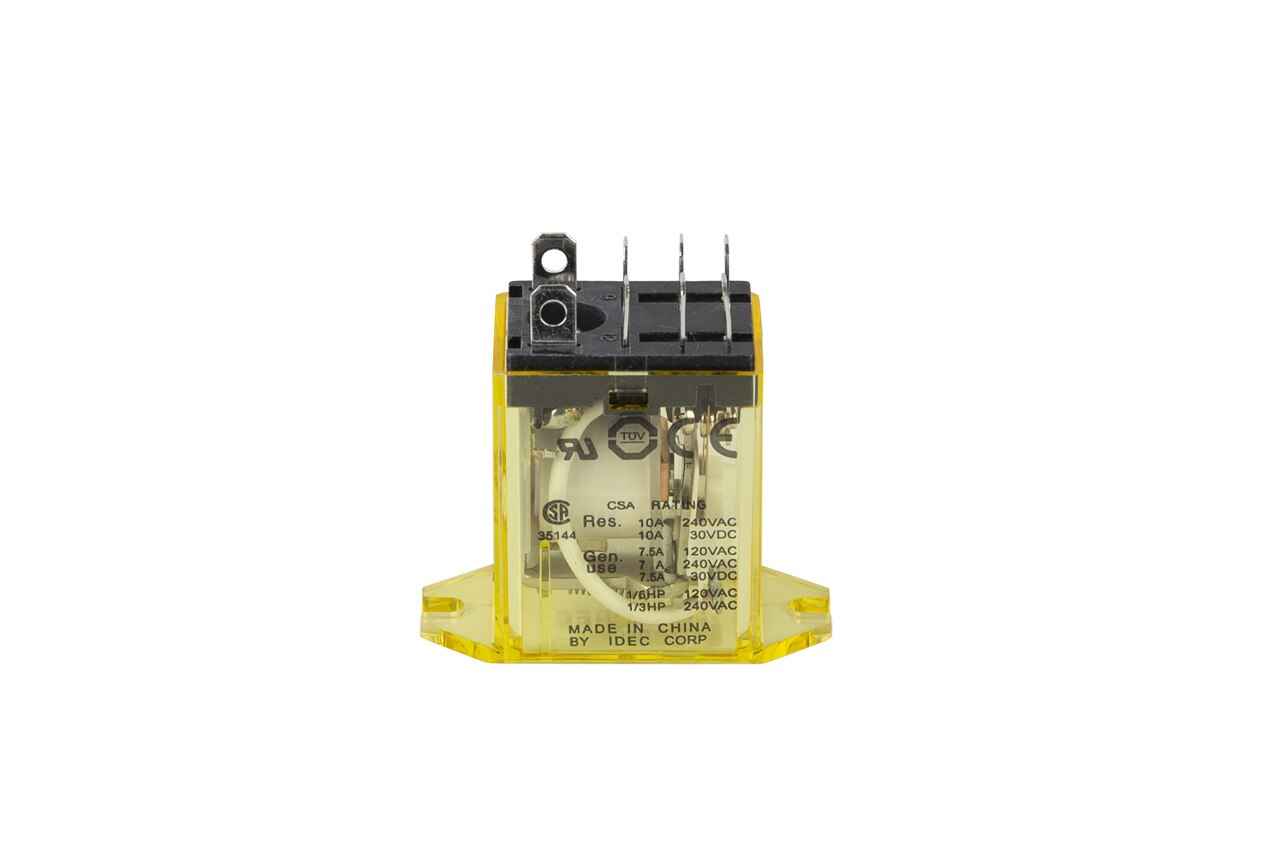

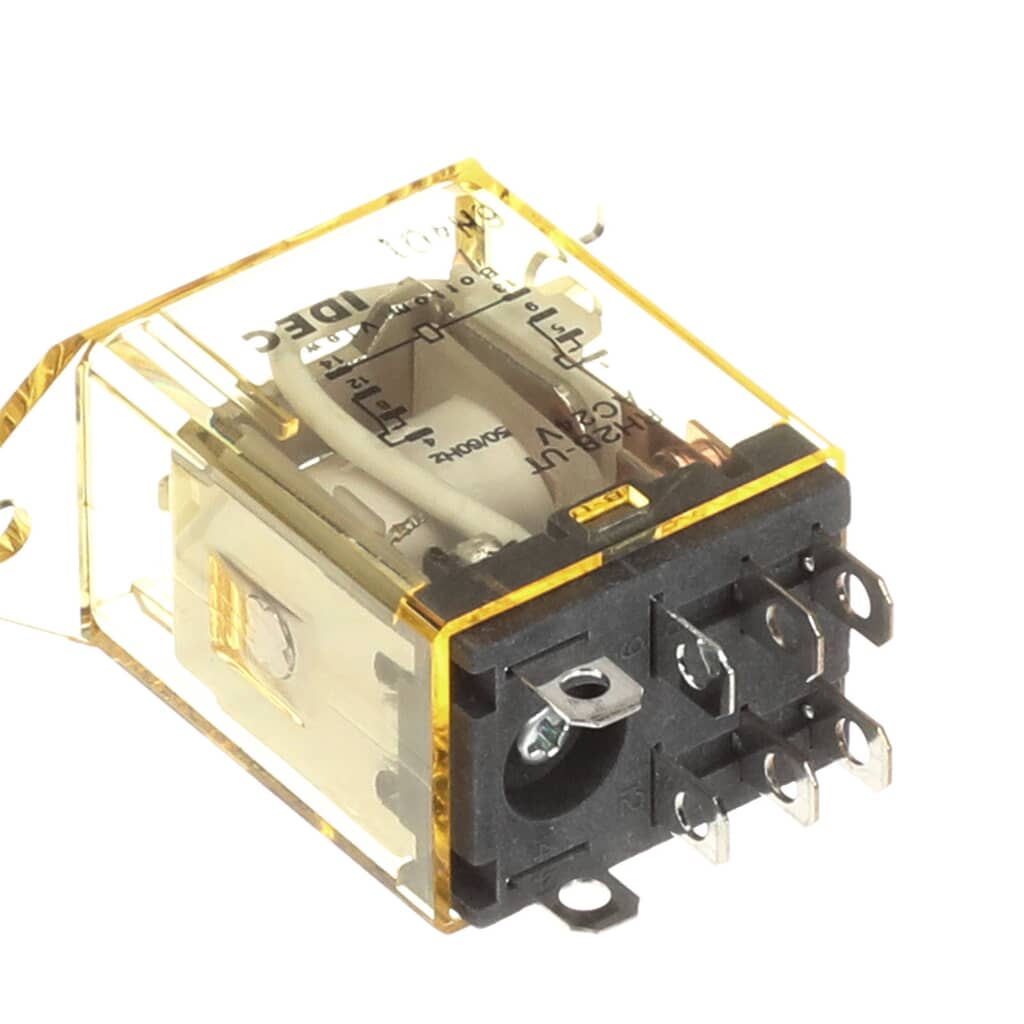

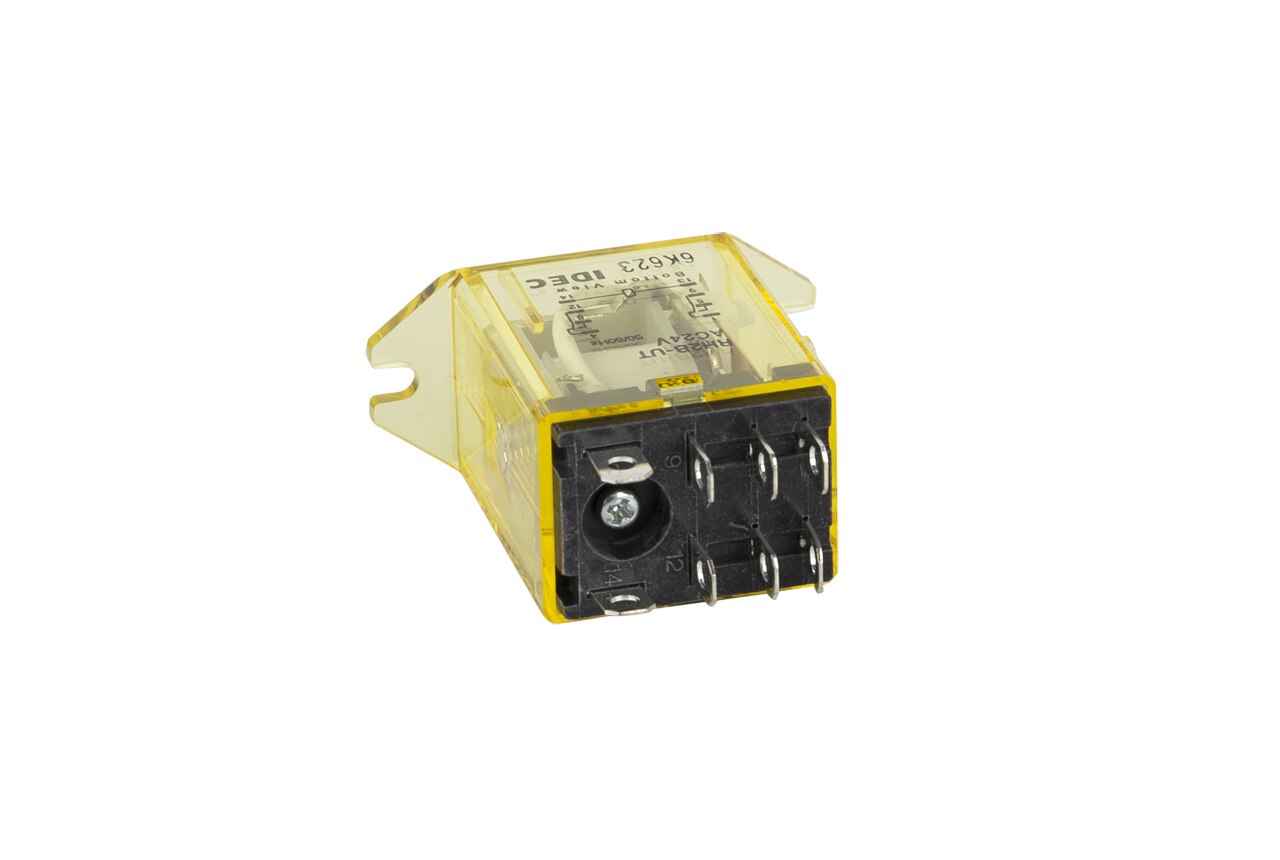

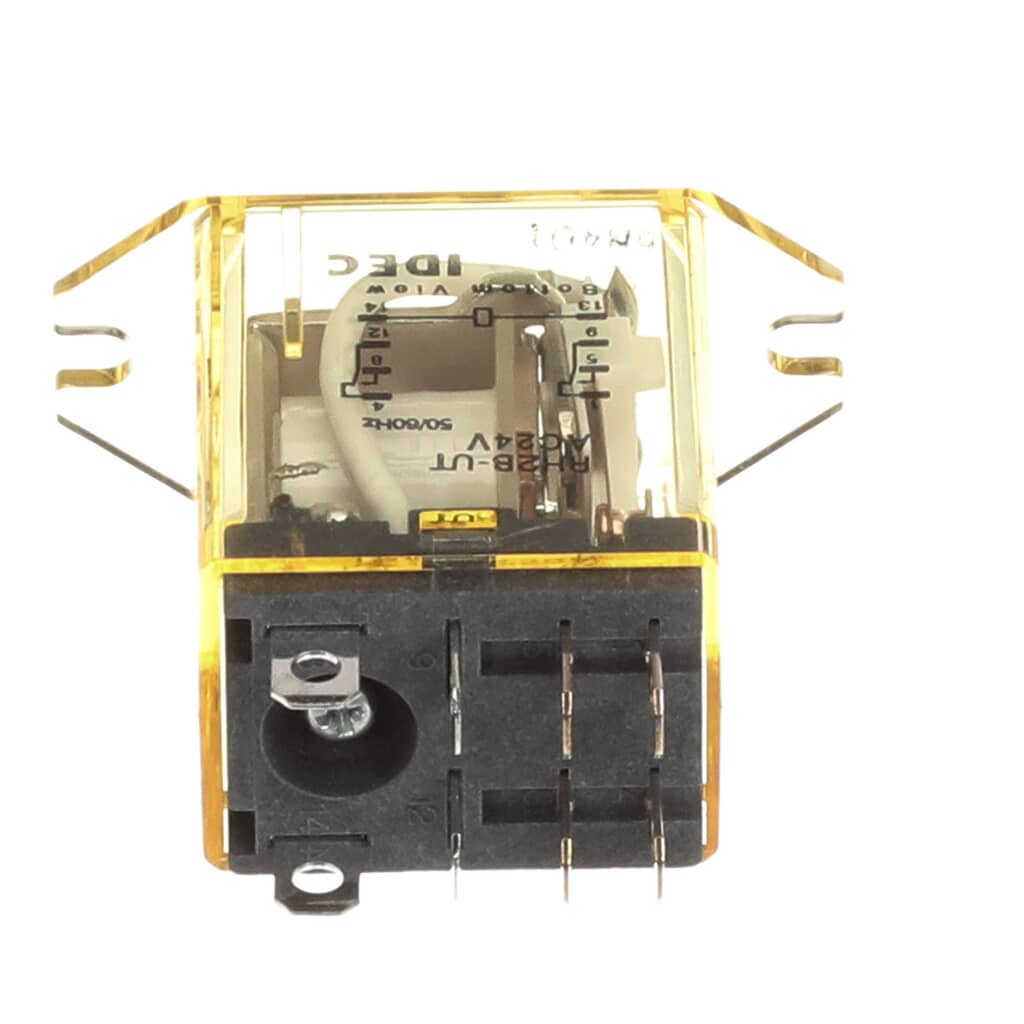

International Comfort Products 1000742-CL DPDT COMBSYSTEMRELAY 24V

Product Description

The International Comfort Products 1000742-CL is a DPDT (Double Pole Double Throw) COMBSYSTEMRELAY designed specifically for HVAC systems. This relay operates on a 24V control voltage and is compatible with various heating and cooling applications. It functions as a switch, controlling high-power circuits using a low-power signal, which optimizes the performance of HVAC systems. This relay serves as an OEM replacement part, ensuring both compatibility and reliability.

• DPDT COMBSYSTEMRELAY operates on 24V.
• Controls high-power circuits with a low-power signal.
• Ideal for use in furnaces and HVAC systems.

Product Highlights

This relay is essential for efficiently managing blower fan operations in furnaces thereby enhancing system performance.

Product Information

Standard Information

• Country of Origin: JPN
• UPC: 8.2396E+11

Technical Specifications

• Control Voltage: 24 VAC
• Relay Type: Multi-Purpose
• Voltage: 24
• Hertz: 50/60
• Resistance: 10 Amps @ 240 VAC; 10 Amps @ 30 VDC
• General Use: 7.5 Amps @ 120, 240 VAC; 7.5 Amps @ 30 VDC
• HP: 1/6 HP @ 120 VAC; 1/3 HP @ 240 VAC
