Internal Tool 57-1040-C Woodruff Keyseat Cutter Solid Carbide

Product Description

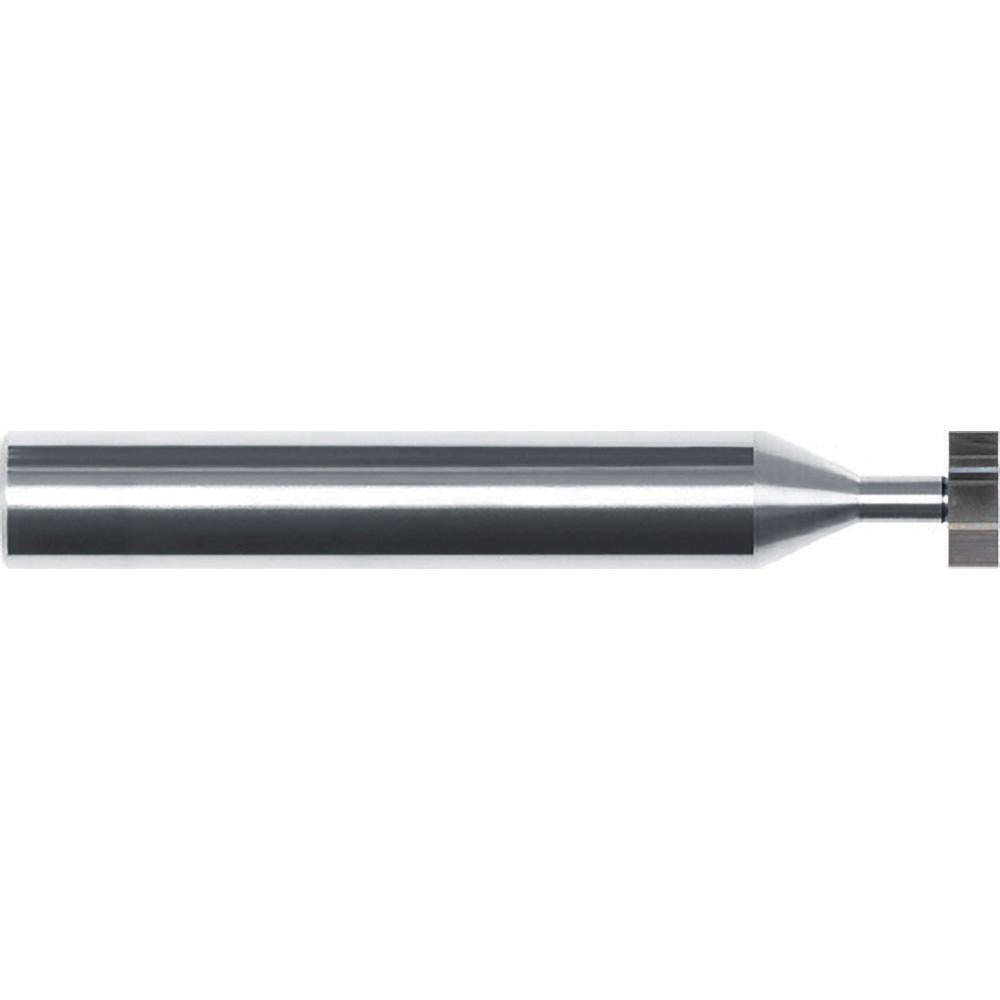

The INTERNAL TOOL 57-1040-C is a solid carbide Woodruff keyseat cutter designed for milling semicircular keyseats in shafts and mating components. Built from micrograin solid carbide with an AlTiN coating, it delivers extended tool life and heat resistance during demanding cutting operations. The cutter measures 0.25 inches in diameter with a cutting width of 5/64 inches (0.0781 inches) and runs on a 1/4-inch shank. Its straight tooth configuration and 6-tooth design produce clean, accurate keyseat profiles. Machinists and toolroom professionals working in job shops, maintenance facilities, and production environments are the primary users of this tool.

This keyseat cutter is suited for use on CNC machining centers and manual milling machines where precise keyseat slots are required. It is intended for cutting into steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. The compact neck diameter of 0.07 inches and neck length of 0.125 inches allow access to close-tolerance keyseat locations. Overall tool length is 2.5 inches, providing adequate reach for most standard shaft and bore configurations encountered in production and repair work.

Key Features

• Micrograin solid carbide construction for rigidity and wear resistance
• AlTiN coating provides thermal protection and extends tool life in hard and abrasive materials
• Straight tooth configuration for consistent keyseat profile accuracy
• 6-flute design balances chip clearance with surface finish quality
• 0.07-inch neck diameter enables access to tight keyseat locations
• Compatible with steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium workpieces

Compatibility

Designed for use in standard 1/4-inch shank toolholders on CNC machining centers and manual milling machines. Suitable for keyseat milling operations in steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium workpieces.

Installation Notes

Installation and use should be performed by qualified machinists familiar with rotating cutting tool safety. Ensure the spindle is fully stopped and the machine is powered down before loading or removing the cutter from the toolholder. Verify shank seating and toolholder runout before cutting, as excess runout accelerates wear on carbide tools. Follow the machine tool manufacturer guidelines and applicable shop safety standards when setting speeds, feeds, and depth of cut.
