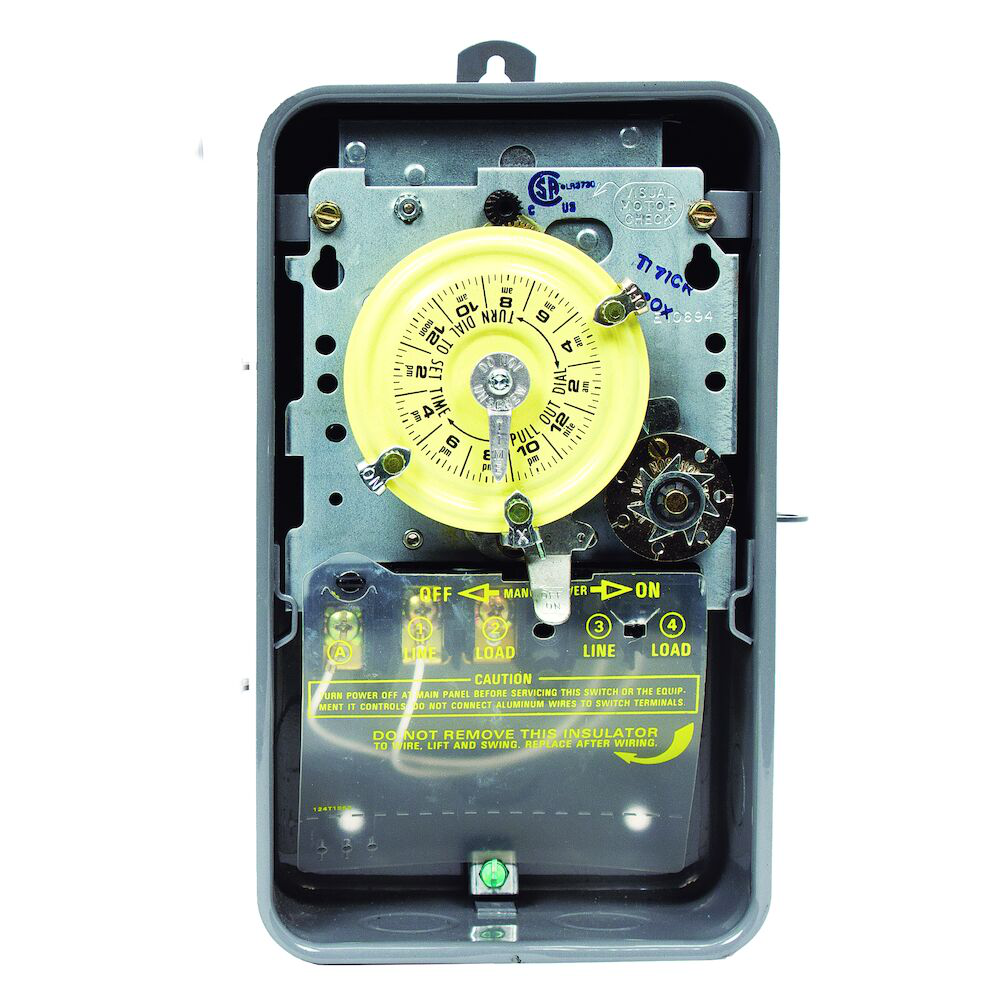

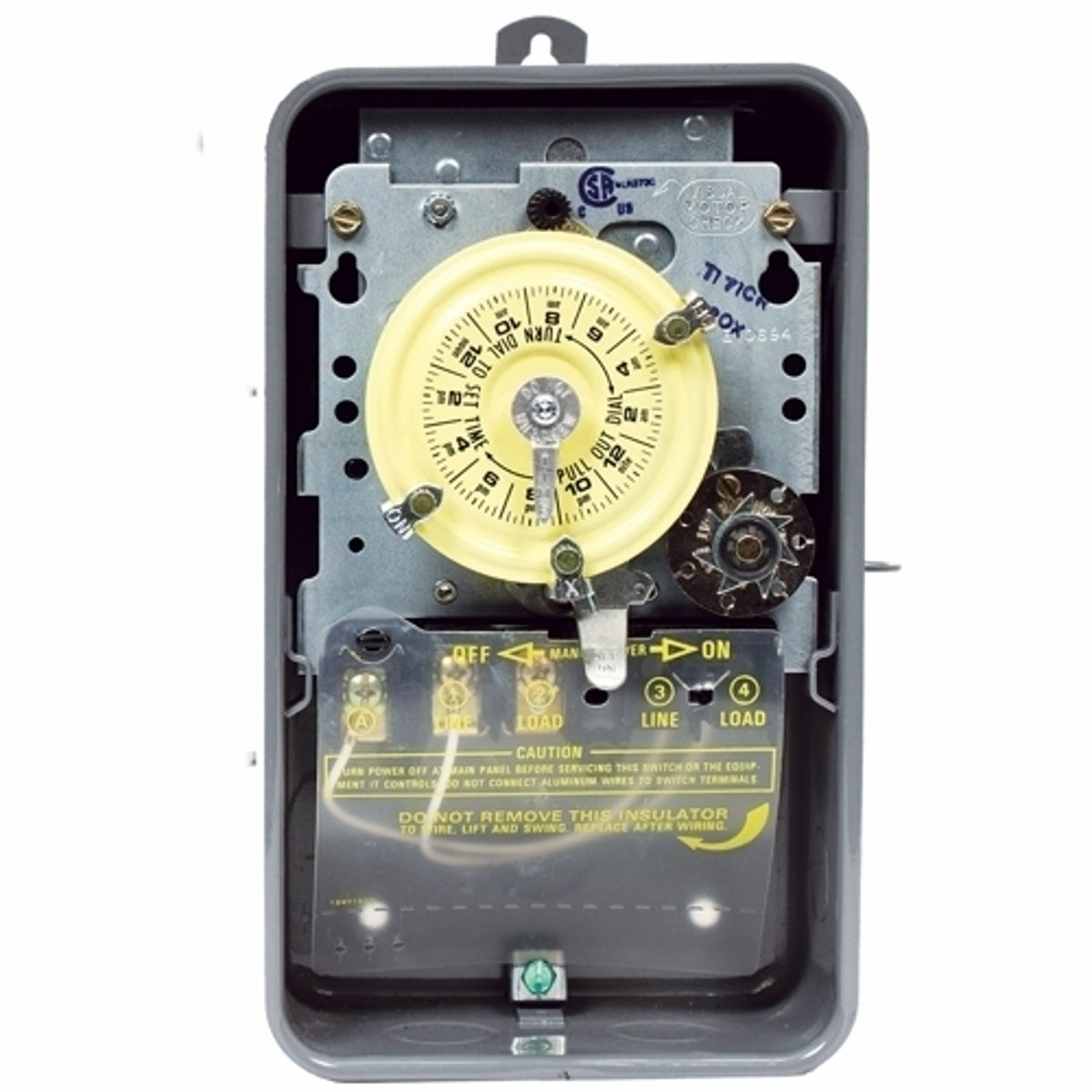

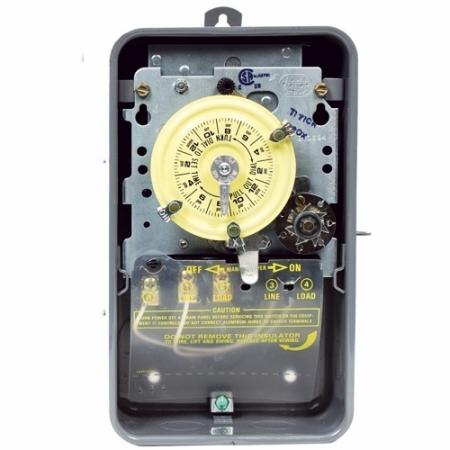

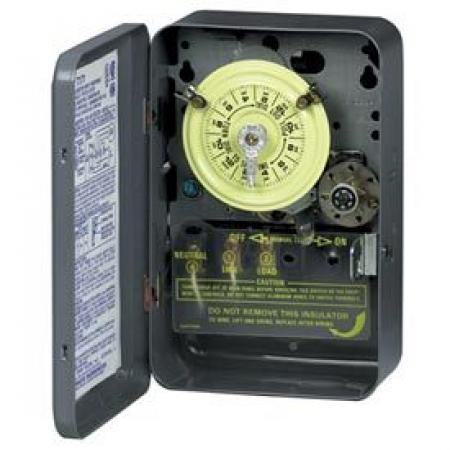

Intermatic T171CR NEMA 3R Steel Case 125 VAC 60 Hz 40 Amp SPST Electromechanical Time Switch

Product Description

The Intermatic T171CR is a time switch designed to handle electrical loads up to forty amps per pole. This model can be set for up to ten ON/OFF operations each day and allows for the skipping of days when the load operation is not needed. Each T171CR comes with a set of ON/OFF trippers and three day-skipper screws, providing flexibility for various scheduling needs.

• Controls loads up to forty amps per pole.
• Offers direct control over operations within a twenty-four-hour period.
• Supports up to ten ON/OFF settings daily.

Product Highlights

This time switch is suitable for commercial, residential, and industrial applications. It features a sturdy NEMA 3R steel enclosure and is ideal for outdoor usage as it withstands various environmental conditions.

Product Information

Standard Information

• Brand: Intermatic
• Country of Origin: France

Technical Specifications

• Voltage: 125 Volt
• Amperage: 40 Amp
• Contact Rating: 40 AMP @ 120-480 VAC
• Enclosure Type: NEMA 3R Steel
• Frequency: 60 Hz
• Operating Temperature: -40 to 130 degrees Fahrenheit
• Dimensions: 10-1/8 inches high, 6-1/2 inches wide, 3-5/8 inches deep
• Mounting Type: Wall Mount
