Intermatic L5F13Y2DG1 DEVICE PROT SRG 277/480 WYE V 50/60HZ 3

Product Description

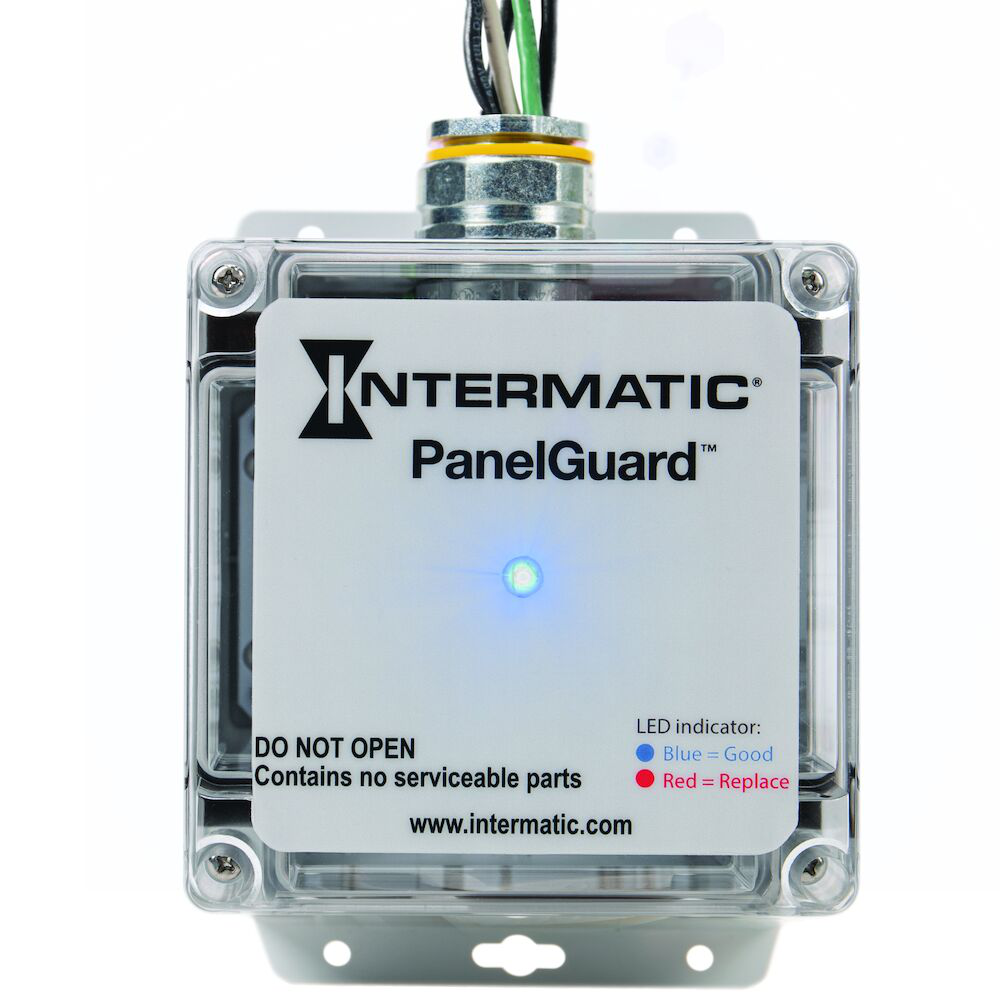

The Intermatic L5F13Y2DG1 Surge Protective Device is designed to safeguard electrical systems from damaging surges. This device supports a three-phase configuration at 277/480 volts and operates at a frequency of fifty to sixty hertz. It is suitable for commercial and industrial applications.

• Type 1 surge protection
• NEMA 4X enclosure for indoor/outdoor use
• Four modes of protection: L-G, L-L, L-N, N-G

Product Highlights

The PanelGuard series provides reliable surge protection, essential for industrial facilities. Its fast response time minimizes damage to downstream equipment, ensuring operational safety.

Product Information

Standard Information

• Brand: Intermatic
• Model Number: L5F13Y2DG1

Technical Specifications

• Electrical Ratings: 277/480 Wye V
• Peak Surge Current: 50 kA
• Short Circuit Current Rating: 200 kA
• Nominal Discharge Current: 20 kA
• Clamping Voltage: 320 V (L-N), 320 V (L-G), 640 V (L-L), 320 V (N-G)
• Environmental Conditions: -40 to 176 deg F
• Dimensions: 4.81 in W x 3.54 in D x 6.46 in H
• Indicator Type: Blue/Red LED
• Modes of Protection: L-G/L-L/L-N/N-G
• Number of Wires: 4+G
• Enclosure Type: NEMA 4X/IP65
• Terminal Type: Lead Wire
