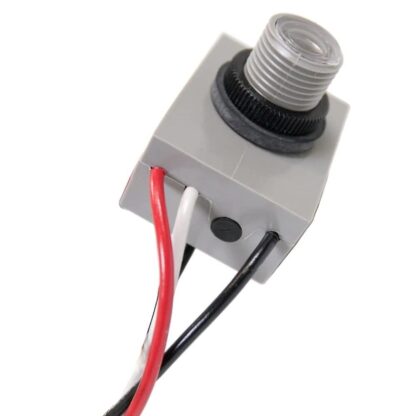

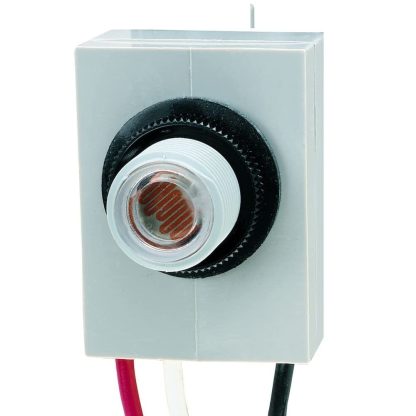

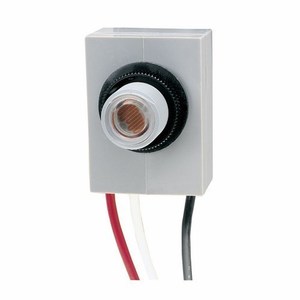

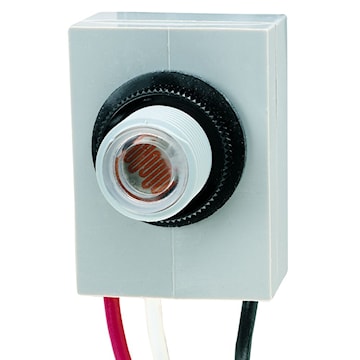

INTERMATIC K4021C70 Thermal Photocontrol

Product Description

The INTERMATIC K4021C70 is a thermal photocontrol for dusk-to-dawn lighting. This unit operates at 120V and is ideal for many outdoor lighting environments. It has a cadmium sulfide photocell and a durable polycarbonate enclosure. The delay feature helps to stop unwanted switching from nearby light sources. The product has nine-inch wire leads for easy installation.

• Thermal-type photocontrol provides dusk-to-dawn operation.
• Includes a 5/8 inch-18 TPI threaded side for mounting.
• Temperature tolerance from -40 to 158 degrees Fahrenheit.

Product Highlights

Efficient and reliable for various outdoor lighting applications.

Product Information

Standard Information

• Brand: Intermatic
• MPN: K4021C70

Technical Specifications

• Voltage Rating: 120 V
• Tungsten Load Rating: 1800 W
• Ballast Load Rating: 1000 VA
• Amperage Rating: 15000 mA
• Frequency Rating: 50/60 Hz
• Mounting Type: Fixed
• Terminal Type: 9 inch wire lead
• Operating Temperature: -40 to 158 degrees Fahrenheit
• Enclosure Material: Sonic welded polycarbonate
• Applications: Parking lot lighting, area lighting, car lot lighting, security lighting, billboard lighting, municipal lighting, roadway lighting, street lighting
• Turn On Light Level: 1 to 5 foot candles
• Turn Off Light Level: 3 to 15 foot candles

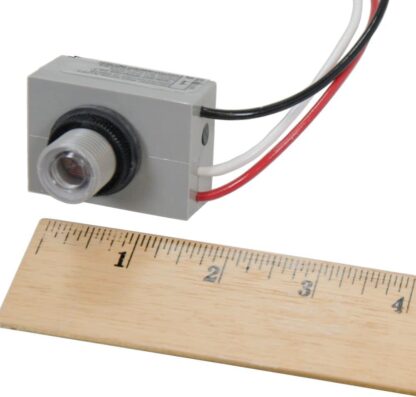

• Dimensions: 46 mm L x 33 mm W x 40 mm H
• Color: Gray
• Approval: UL 773-A, CSA C22.2
