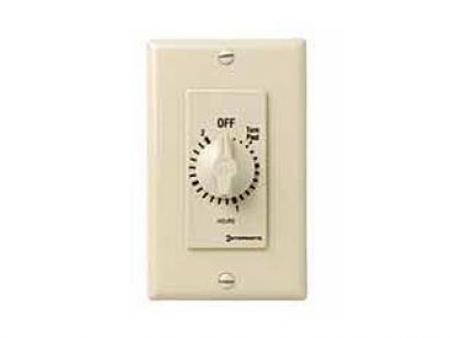

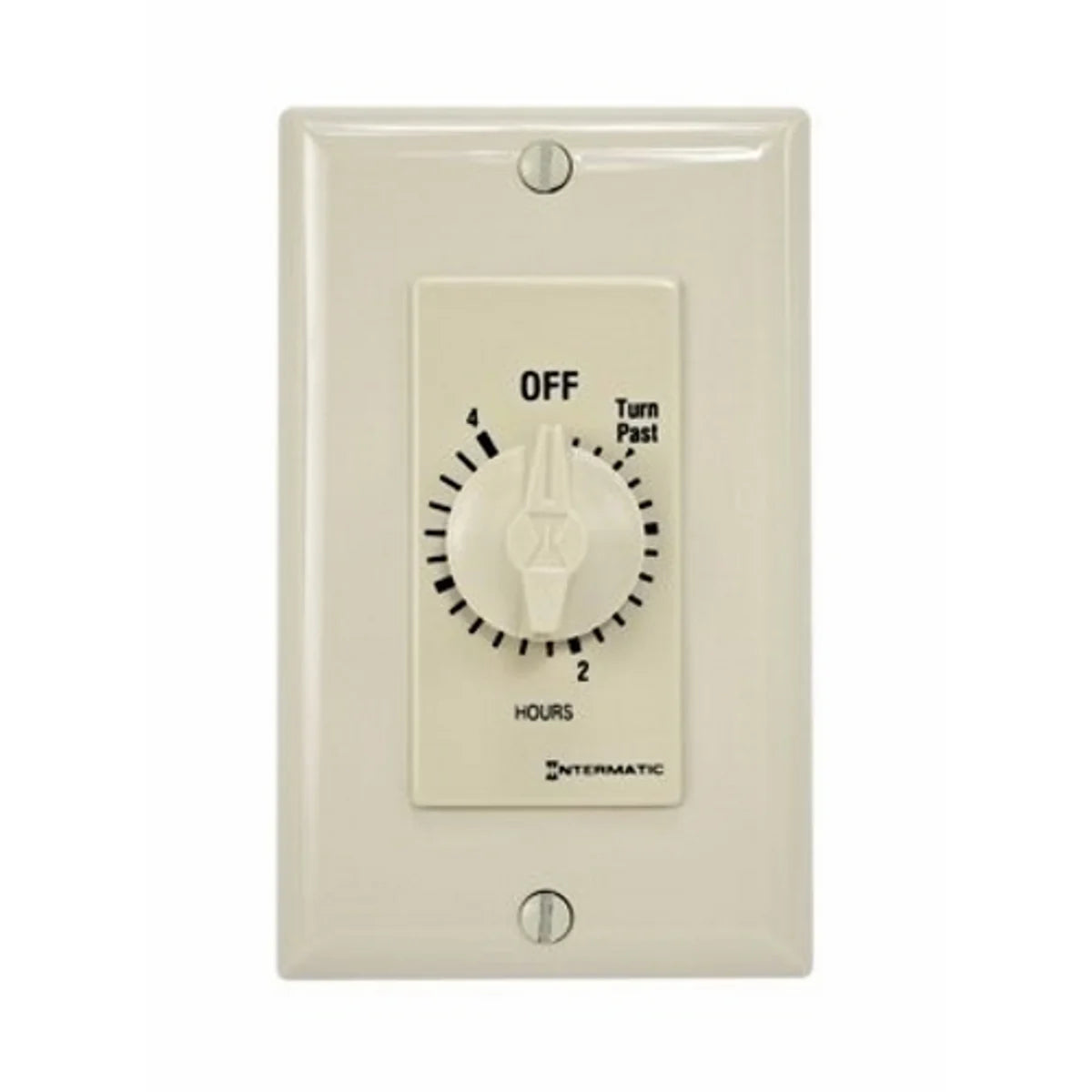

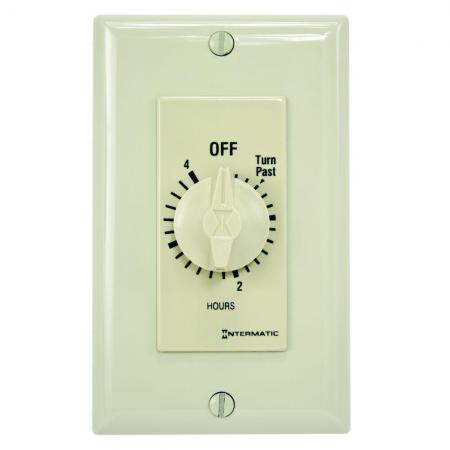

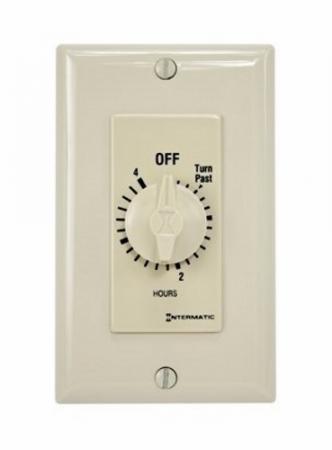

Intermatic FD34H Spring Wound Countdown Timer 125-277 VAC 4 Hour Max

Product Description

The Intermatic FD34H is a spring wound countdown timer, designed to replace standard wall switches in both single and multi-gang installations. This timer operates without electricity and is suitable for controlling lighting, fans, and motors. It features a maximum timing capability of four hours.

• Mounts easily on the wall, compatible with incandescent, fluorescent, and LED lights.
• Automatic ON time limits for energy efficiency.
• SPDT contact form allows flexibility in usage.

Product Highlights

Ideal for indoor applications, this timer is easy to install with a press-on knob design. It includes a spiral time scale for straightforward time setting and operates within a temperature range of negative forty to one hundred four degrees Fahrenheit.

Product Information

Standard Information

• Catalog Number: FD34H
• Manufacturer: Intermatic

Technical Specifications

• Voltage Rating: 125 - 277 VAC
• Amperage Rating: 15 A
• Horsepower Rating: 1 hp, 2 hp
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Operating Temperature: -40 to +104 degrees Fahrenheit
• Timing Range: 4 hours
• Contact Configuration: 1 NO/1 NC
• Mounting Type: Wall
• Standards: UL Listed, cCSAus Certified
