Intermatic FD12HHW TIMER WND SPR 12HR 125/257VAC 1NO-SPST 1

Product Description

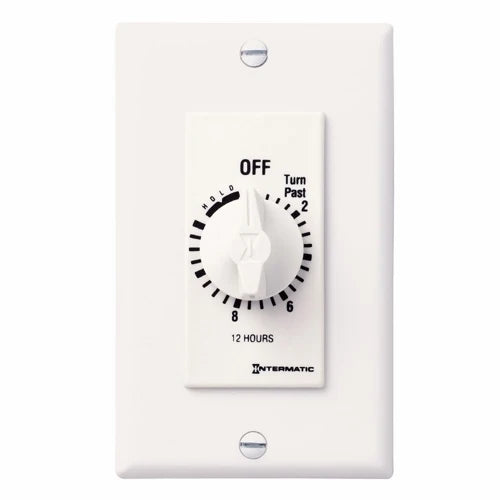

The Intermatic FD12HHW is a mechanical spring wound timer. It operates on a voltage range of one hundred twenty-five to two hundred fifty-seven VAC. This timer is designed for applications that require timed control of electrical loads without needing a neutral connection.

• Holds time settings up to twelve hours
• Single-pole single-throw (SPST) contact form
• No external power source required for operation

Product Highlights

This timer is ideal for controlling fans, lighting, and motors, effectively limiting their ON time. Its mechanical design ensures reliable performance without the need for electrical power.

Product Information

Standard Information

• Manufacturer: Intermatic
• MPN: FD12HHW

Technical Specifications

• Voltage Rating: 125 - 277 VAC
• Amperage Rating: 15 A
• Dimensions: 2.79 in H x 1.6 in W x 1.19 in D
• Operating Temperature: -40 to 104 deg F
• Horsepower: 1 hp, 2 hp
• Mounting Type: Wall
• Number of Poles: 1
