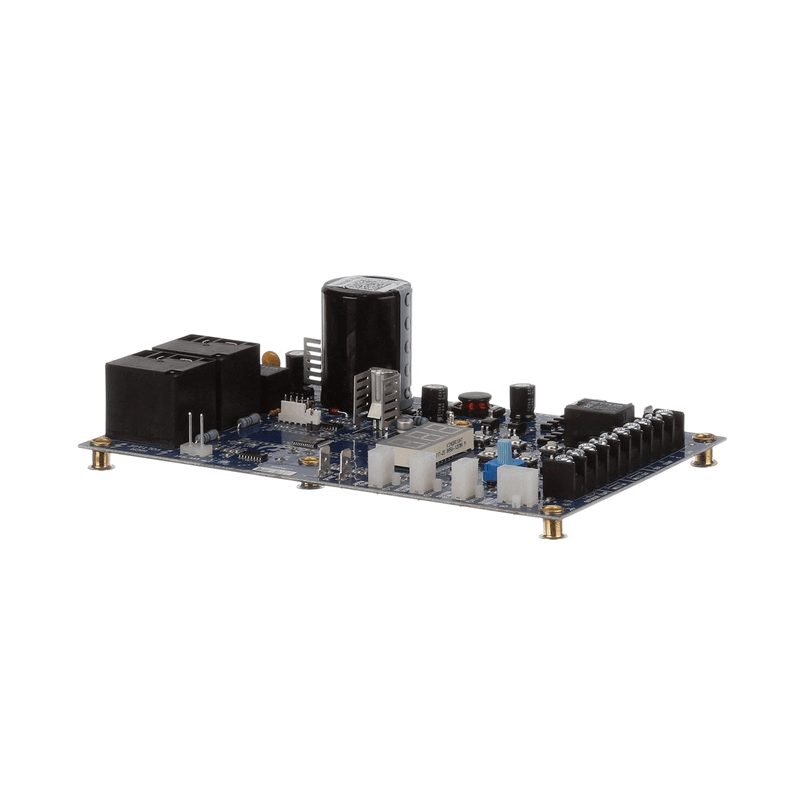

Interlink 28910103 Control Board Beacon Ii

Product Description

The INTERLINK 28910103 is a Beacon II control board designed to manage and coordinate integrated functions across compatible refrigeration and HVAC equipment. The board handles communication between system components, providing centralized control over operating sequences, safeties, and system diagnostics. At 0.955 pounds and a compact footprint of 8.5 inches by 5.5 inches by 2 inches, it is a direct OEM-style replacement suited for technicians performing board-level component service on Beacon II platform units. Licensed refrigeration and HVAC technicians are the primary installers for this type of control board.

The 28910103 control board fits within the Beacon II system platform, which is found in commercial refrigeration and HVAC equipment manufactured under the Heatcraft family of brands. This board handles the logic and communication functions that keep the unit operating within designed parameters. Typical installations involve walk-in cooler and freezer evaporator or condensing units where Beacon II controls are specified. Technicians replacing a failed or damaged board will find the physical form factor and connector layout consistent with the original equipment design.

Key Features

• OEM-style replacement for Beacon II platform control systems
• Manages integrated system communication and operating logic
• Compact board dimensions: 8.5 inches x 5.5 inches x 2 inches
• Lightweight at 0.955 pounds for easy handling during service
• Supports board-level replacement without full controller assembly swap

Compatibility

Designed as an OEM-style replacement control board for Heatcraft Beacon II platform refrigeration and HVAC equipment.

Installation Notes

Installation should be performed by a licensed HVAC or refrigeration technician. Disconnect and lock out all power to the unit before removing or installing the control board. Handle the board carefully to avoid damage to connectors or surface-mount components, and follow applicable electrical codes including NEC guidelines for low-voltage control wiring. Verify all wiring connections are secure and correct before restoring power to the system.

Technical Specifications

• Length: 8.5 inches
• Width: 5.5 inches
• Height: 2 inches
• Weight: 0.955 pounds

Standard Information

• Brand: INTERLINK
• Manufacturer Part Number: 28910103
