Intellinet 561952 Ultra Long Range Outdoor PoE++ Extender Kit

Product Description

The Intellinet Ultra Long Range Outdoor Fast Ethernet PoE++ Extender Kit, MPN 561952, extends connection distance from a PoE source to an output device up to 1,000 m via Cat5e or Cat6 cable. It delivers up to 30 watts, suitable for power-hungry PoE devices and IP surveillance camera deployments. The kit includes two modules for maximum distance capabilities.

• Extremely high PoE range and weatherproof housing ideal for IP camera installations
• IP67-rated, dustproof and waterproof
• Delivers data up to 1000 m (3280 ft.) without packet loss

Product Highlights

This extender kit supports IEEE 802.3bt/at/af-compliant devices, 10/100 Mbps data rates, and features short-circuit, overload, and high-voltage protection. It requires no additional power supply and offers plug-and-play installation.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 561952
• Country of Origin: Taiwan

Technical Specifications

• Standards: IEEE 802.3af (Power over Ethernet) compatible IEEE 802.3at (High-Power PoE+ Power over Ethernet) compatible IEEE 802.3bt (PoE++/4PPoE/Ultra Power over Ethernet) compatible IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet) IEEE 802.3x (Full duplex and flow control)
• Media support: - 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45 - 100Base-TX Cat5/5e/6/6a UTP/STP RJ45
• Certifications: FCC, CE, RoHS, UKCA, NDAA
• Input: Supports IEEE 802.3at/af/bt up to 95.0 W
• PoE Pinout Input: - IEEE Alternative A (pairs 1/2 and 3/6) - IEEE Alternative B (pairs 4/5 and 7/8)
• PoE Pinout Output: - IEEE Alternative A (pairs 1/2 and 3/6)
• Output: Supports IEEE 802.3at/af/bt standards with limited output due to distance, refer to documentation
• Power consumption: 0.4 W (no load) / 0.7 W (full load) max.
• IP Protection: IP67-rated plastic housing (weather-proof)
• Operating temperature: -10 - 55°C (14 - 131°F)
• Storage temperature: -40 - 70°C (-40 - 158°F)
• Operating humidity: 10 - 90% RH, non-condensing
• Storage humidity: 5 - 90% RH, non-condensing
• Extended PoE Range: Extends PoE capabilities up to 1000 meters (3280 feet) with no packet loss
• Outdoor Durability: IP67-rated for dust-proof and waterproof protection, ideal for outdoor use
• Device Compatibility: Compatible with IEEE 802.3bt/at/af-compliant devices like network cameras and wireless access points

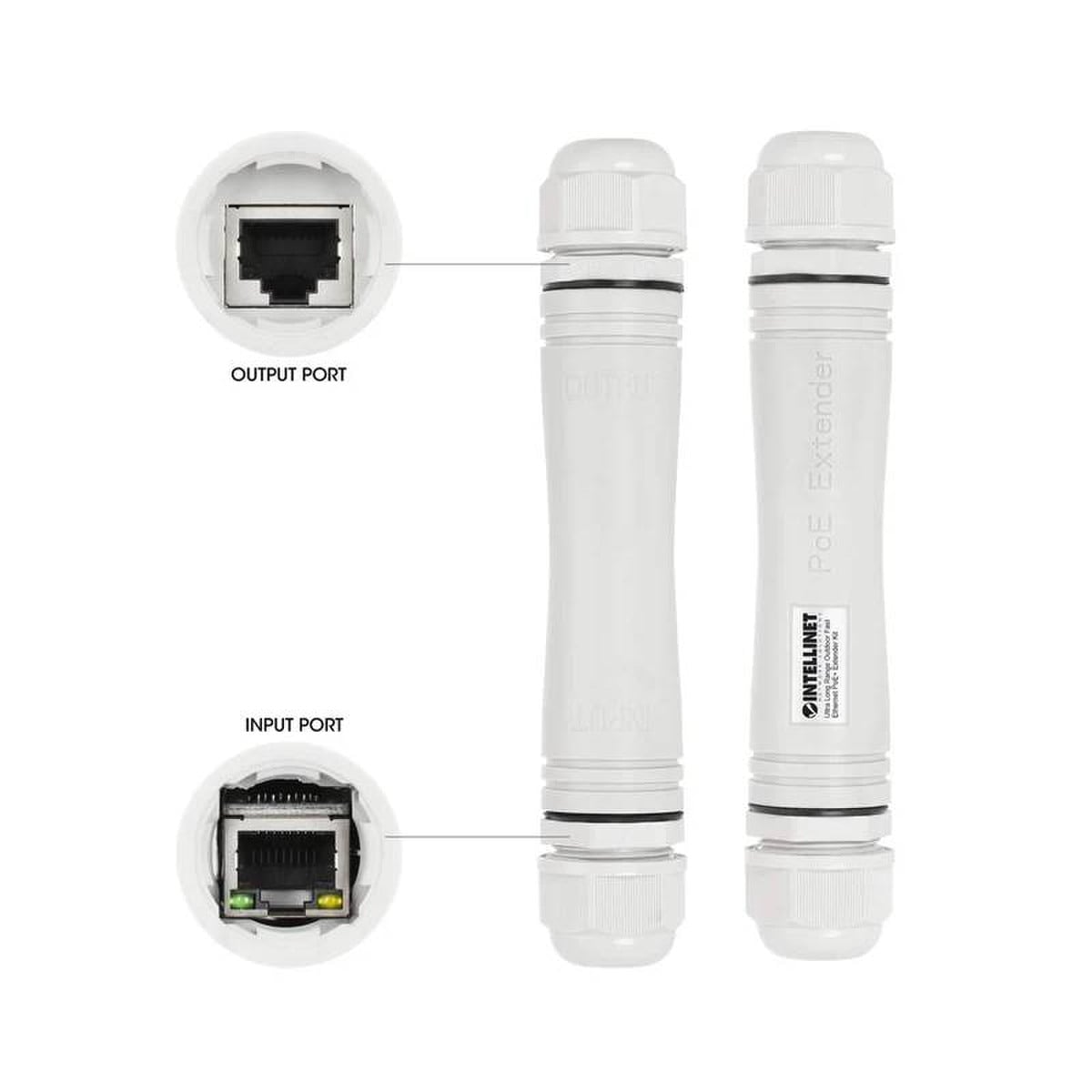

• Modular Design: Includes two modules for maximum distance coverage
• Reliable Connectivity: Supports 10/100 Mbps data rates for reliable connectivity
• Enhanced Safety: Short-circuit, overload, and high-voltage protection for enhanced safety
• Power Efficient: Requires no additional power supply, drawing power directly from the PoE input
• Installation: Easy plug-and-play installation with no configuration needed
• Brand Name: Intellinet
• Manufacturer Part Number: 561952
• Product Type: PoE Extender
• NDAA: Compliant
