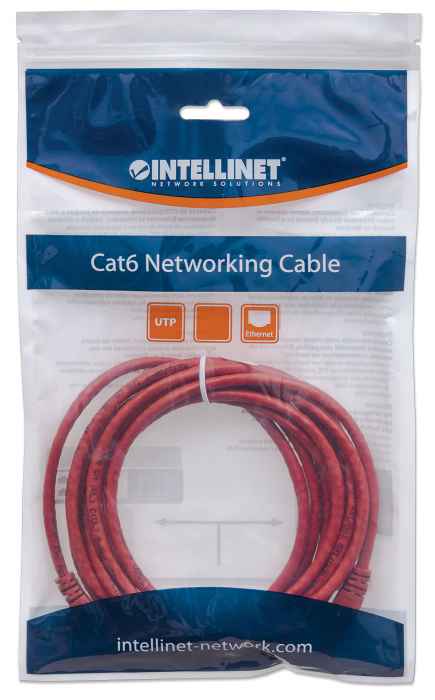

Intellinet 343367 Network Cable Cat6 14 ft

Product Description

The Intellinet 343367 Cat6 Network Patch Cable establishes high-performance network connections. Supporting up to 10 Gbps data transmissions with frequencies up to 250 MHz, this cable is suitable for 10/100/1000BASE-T networks and all PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. It features a rugged PVC sheath and molded strain relief to help reduce cable damage.

• Supports up to 10 Gbps data transmissions with frequencies up to 250 MHz
• Features snag-free boots to protect RJ45 connectors
• Gold-plated contacts for corrosion-free connections

Product Highlights

This Cat6 UTP cable ensures reliable network connections with gold-plated contacts and snag-free design, ideal for demanding environments.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 343367
• Country of Origin: Taiwan R.O.C.

Technical Specifications

• Manufacturer: Intellinet
• MPN: ICI343367
• Model#: 343367
• UPC Code: 766623343367
• Network Cable Type: Patch Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
• Length: 14 feet
• Enclosure Color: Red
• Manufacturer Stock No.: 343367
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Gold-plated contacts: 6 micro-inch
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Net weight: 148 g (0.33 lbs)
• Gross weight: 155 g (0.34 lbs.)
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• NDAA Compliance: Yes
• Wire Type: Cat6
• Side 1: Side 1 RJ-45 Male
• Side 2: Side 2 RJ-45 Male
