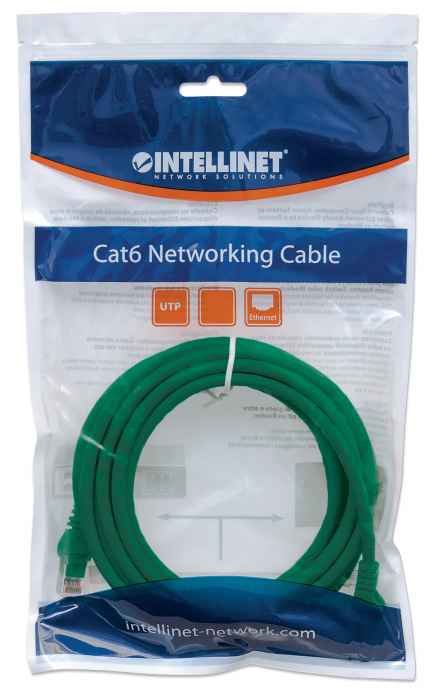

Intellinet 342476 3 ft Cat6 Snagless Patch Cable

Product Description

The Intellinet 342476 Cat6 Patch Cable provides clear and secure data transmissions. This network cable offers a reliable connection from network devices like switches, modems, or routers to infrastructure via patch panels or wall outlets. It is designed to meet TIA/EIA standards and is suitable for 10/100/1000BASE-T networks.

• Gold-plated contacts for best connection
• PVC cable jacket for flexibility and durability
• Snag-free boots protect RJ45 connectors

Product Highlights

Enables reliable network connections with a rugged PVC sheath and molded strain relief to help reduce cable damage.

Product Information

Standard Information

• Brand: INTELLINET
• Manufacturer Part Number: 342476
• Country of Origin: Taiwan

Technical Specifications

• Brand: Intellinet
• Model: 342476
• Manufacturer Stock No.: 342476
• Information: Network Cable Type:Patch Cable
• Cable Technology: Unshielded Twisted Pair (UTP)
• Left Connector Gender: Male
• Right Connector Gender: Male
• Left Connector Type: RJ-45
• Right Connector Type: RJ-45
• Length: 3 feet
• Enclosure Color: Green
• UPC/EAN Code: 766623342476
• NDAA Compliance: Yes
• Wire Type: CAT6
• Side 1: Side 1 RJ-45 Male
• Side 2: Side 2 RJ-45 Male
• Standards and Certifications: ISO/IEC 11801, EN 50288, RoHS, REACH, 1000Base-T/10GBase-T, ANSI/TIA-568.2-D
• Supported transfer speeds: up to 10 Gbps
• Max. operating frequency: 250 MHz
• Supports all PoE standards: up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Mating cycles: ≥750
• Connectors: Two RJ45 male
• Contacts: 6 micro-inch gold-plated
• Cable: 24 AWG
• Shielding: U/UTP
• Jacket: PVC CM jacket
• Wire: CCA
• Jacket OD: 5.5 mm (0.217 in.)
• Conductor type: stranded
• Cable type: round
• Net weight: 40 g (1.41 oz.)
• Gross weight: 45 g (1.59 oz.)
• Operating temperature: 0 - 45°C (32 - 113°F)
• Storage temperature: -10 - 70°C (14 - 158°F)
• Operating humidity (non-condensing): 10 - 90% RH
• MPN: ICI342476
