Inovate DRYERBOX-425 Dryer Vent Box

Product Description

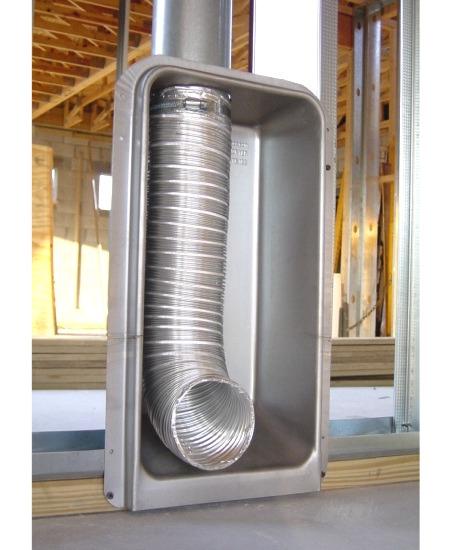

The Inovate DRYERBOX-425 is a recessed dryer vent box built for two by six wall construction. It is also suitable for two by four walls when one-inch furring strips are used. The unit is made from 22 gauge aluminized steel and has a weight of four point fourteen pounds. An important feature is its reversible installation, allowing for both upward and downward venting options, making it compatible with both pedestal and stacked dryer setups. Additionally, the box includes a gas port and features a narrow design that permits plumbing and electrical lines to run inside the wall without obstruction. The top port measures four and one-eighth inches and has a slight oval shape, which allows flexibility in venting configurations.

• Designed for recessed installation to save space.
• Enables upward or downward venting with reversible installation.
• Provides space for routing plumbing and electrical lines.

Product Highlights

The Inovate DRYERBOX-425 optimizes your dryer ventilation and ensures efficient use of space.

Product Information

Standard Information

• Brand: Inovate
• MPN: DRYERBOX-425

Technical Specifications

• Material: 22 gauge aluminized steel
• Weight: 4.14 pounds

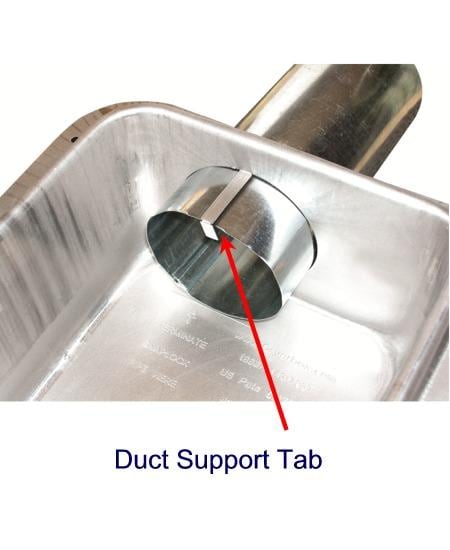

• Top Port Measurement: 4 1/8 inches with slight oval shape
• Depth from Nailing Flange to Rear: 4 1/4 inches
• Overall Height: 21 inches
• Overall Width: 12 1/2 inches
• Overall Depth: 5 1/8 inches
• Inside Width: 9 1/2 inches
• Inside Height: 18 1/4 inches
