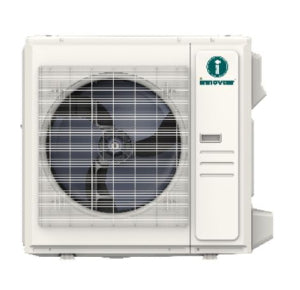

Innovair SHV48H2BA 48000 Btu/h Heat Pump Condenser 230V

Product Description

The INNOVAIR SHV48H2BA is a 48,000 BTU/h inverter-driven heat pump outdoor condenser unit designed for split-system heating and cooling applications. It operates on 230-volt single-phase 60 Hz power and uses R454B refrigerant, a lower-GWP alternative to R410A that meets current regulatory direction for residential and light-commercial equipment. The inverter compressor modulates capacity to match load conditions, reducing energy consumption compared to single-stage systems. Licensed HVAC technicians install and commission this unit as part of a matched split system.

The SHV48H2BA is part of the INNOVAIR Slim4 inverter product line, suited for residential and light-commercial installations where a 4-ton-class heat pump is required. Its slim cabinet profile makes it practical for space-constrained equipment pads or rooftop placements. This condenser pairs with a compatible indoor air handler or fan coil to form a complete split system. Installers should verify indoor unit compatibility and refrigerant line sizing before installation.

Key Features

• 48,000 BTU/h nominal capacity for 4-ton-class split systems
• Inverter-driven compressor for variable-capacity operation and reduced energy draw
• R454B refrigerant — lower global warming potential than R410A
• 230-volt single-phase 60 Hz electrical configuration for standard residential service
• Slim4 cabinet design accommodates space-constrained installations
• Heat pump operation provides both heating and cooling from a single outdoor unit

Compatibility

Designed as part of the INNOVAIR Slim4 inverter split-system product line. Consult the INNOVAIR Slim4 engineering documentation for verified compatible indoor units and system configurations before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician due to the use of regulated refrigerant. Disconnect and lock out all electrical power before servicing or connecting refrigerant lines. Follow local mechanical and electrical codes, including NEC requirements for disconnect sizing and overcurrent protection. Verify line set sizing, refrigerant charge, and indoor unit compatibility per the manufacturer installation instructions before start-up.

Technical Specifications

• Capacity: 48,000 BTU/h
• Voltage: 230 volts
• Phase: 1-phase
• Frequency: 60 Hz
• Refrigerant: R454B
• System Type: Inverter Heat Pump
• Product Height: 26.5 inches
• Product Width: 13.46 inches

Standard Information

• Brand: INNOVAIR
• Manufacturer Part Number: SHV48H2BA
