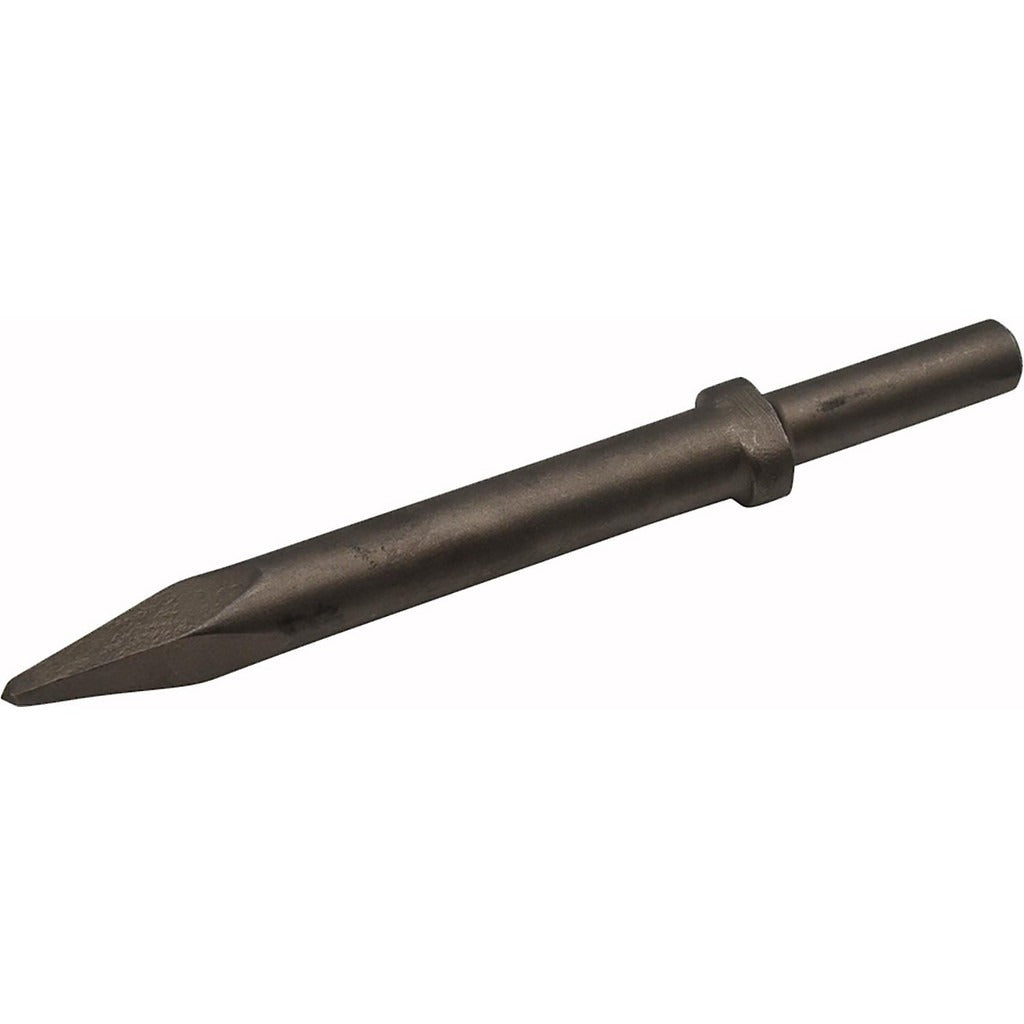

Ingersoll Rand HH1-215M-9 Moil Point Chisel 9 in

Product Description

The INGERSOLL RAND HH1-215M-9 is a moil point replacement chisel designed for use with pneumatic chipping hammers. The moil point tip concentrates force into a narrow contact area, making it effective for breaking, chipping, and gouging concrete, masonry, and similar hard materials. The shank measures 0.7 inches in diameter with a round drive profile and oval collar, allowing secure seating in compatible chipping hammer retainers. At 9 inches overall length and 1.25 pounds, it delivers a balance of reach and control for sustained chipping work. Manufactured from steel for durability under repeated impact loads, this chisel is suited for contractors, ironworkers, and general construction trades.

This chisel is intended for installation in pneumatic chipping hammers used on commercial and residential construction sites, demolition projects, and surface preparation work. Typical applications include removing mortar joints, breaking up concrete patches, and chipping weld slag or surface scale. The 9-inch overall length suits standard chipping hammer tool holders that accept a round shank with 0.7-inch diameter. It is a direct replacement chisel sold individually and is appropriate for any trade professional who runs a compatible chipping hammer on a regular basis.

Key Features

• Moil point tip concentrates impact force for precise chipping, gouging, and breaking
• Round drive shank with 0.7-inch diameter fits standard chipping hammer retainers
• Oval collar shape provides positive retention during operation
• 9-inch overall length offers reach without excess weight
• Steel construction withstands repeated high-impact loads
• Sold individually for single-chisel replacement or multi-tool inventory restocking

Compatibility

Designed as a replacement chisel for chipping hammers that accept a round shank with 0.7-inch diameter and an oval collar. Verify shank diameter and collar shape against your specific chipping hammer model before installation.

Installation Notes

Disconnect the air supply and depressurize the tool before removing or installing any chisel. Insert the shank fully into the tool holder until the collar seats correctly in the retainer. Inspect the chisel for cracks or deformation before each use and replace immediately if damage is found. Chipping hammer operation typically falls under general construction safety guidelines and applicable OSHA standards for pneumatic tool use.
