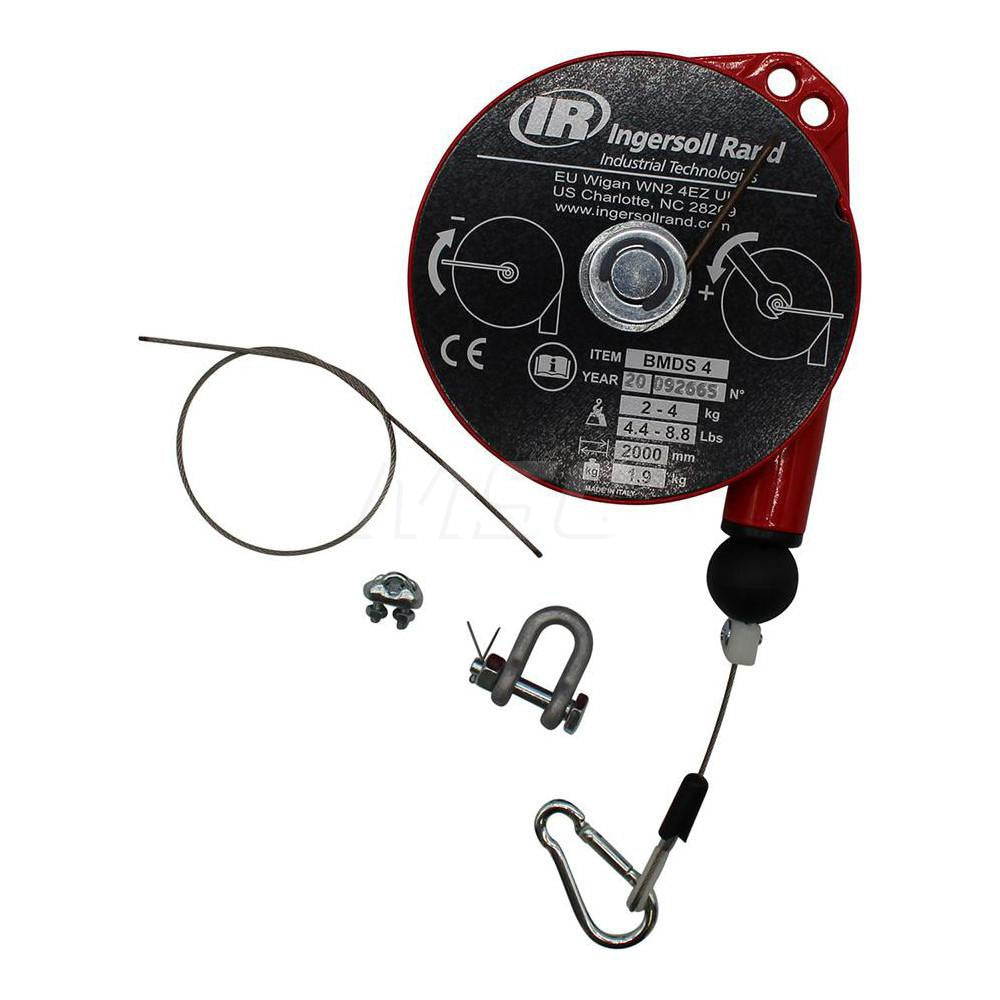

Ingersoll Rand BMDS-4 Tool Balancer 8.8 Lb 6.5 Ft Cable

Product Description

The INGERSOLL RAND BMDS-4 is a medium-duty tool balancer designed to suspend and counterbalance hand tools in assembly, production, and repair environments. It supports a load range of 4.4 to 8.8 pounds and features a 6.5-foot stainless steel retractable cable that keeps tools at the operator's fingertips while reducing fatigue and drop risk. The cast aluminum housing is rugged enough for industrial shop floors and light manufacturing settings. Tension is field-adjustable to match the weight of the suspended tool. Installation is straightforward and the unit mounts overhead to a fixed structure or beam. Licensed mechanics, assembly technicians, and production line workers are the typical end users.

The BMDS-4 suits overhead tool suspension in automotive repair bays, production lines, and maintenance shops where repeated tool retrieval creates ergonomic strain. It is well matched to air tools, electric hand tools, and similar equipment that falls within the 4.4 to 8.8 pound load range. The retractable cable returns the tool to a neutral hover point after each use, keeping the work area clear and the tool ready for the next cycle.

Key Features

• Load range of 4.4 to 8.8 pounds accommodates a wide variety of hand and power tools
• 6.5-foot stainless steel cable resists corrosion and withstands repeated extension cycles
• Cast aluminum die-cast housing provides durability without excessive overhead weight
• Tool-free tension adjustment dials in the correct counterbalance for the suspended tool
• Safety locking device prevents uncontrolled cable retraction
• Medium-duty construction suited for high-cycle industrial and shop environments

Compatibility

Designed for use with hand tools and power tools weighing between 4.4 and 8.8 pounds. Suitable for overhead mounting in industrial, automotive, and production shop applications where tool balancers of this load class are specified.

Installation Notes

Tool balancers of this type are installed by maintenance personnel or qualified tradespeople and must be mounted to an overhead structure rated to support the combined weight of the balancer, cable, and suspended tool with an appropriate safety factor. Verify that the mounting anchor point and hardware meet applicable load requirements before putting the unit into service. Adjust cable tension only when no tool is attached and the cable is fully retracted. Inspect the stainless steel cable periodically for kinking, fraying, or wear and take the unit out of service if cable damage is found.
