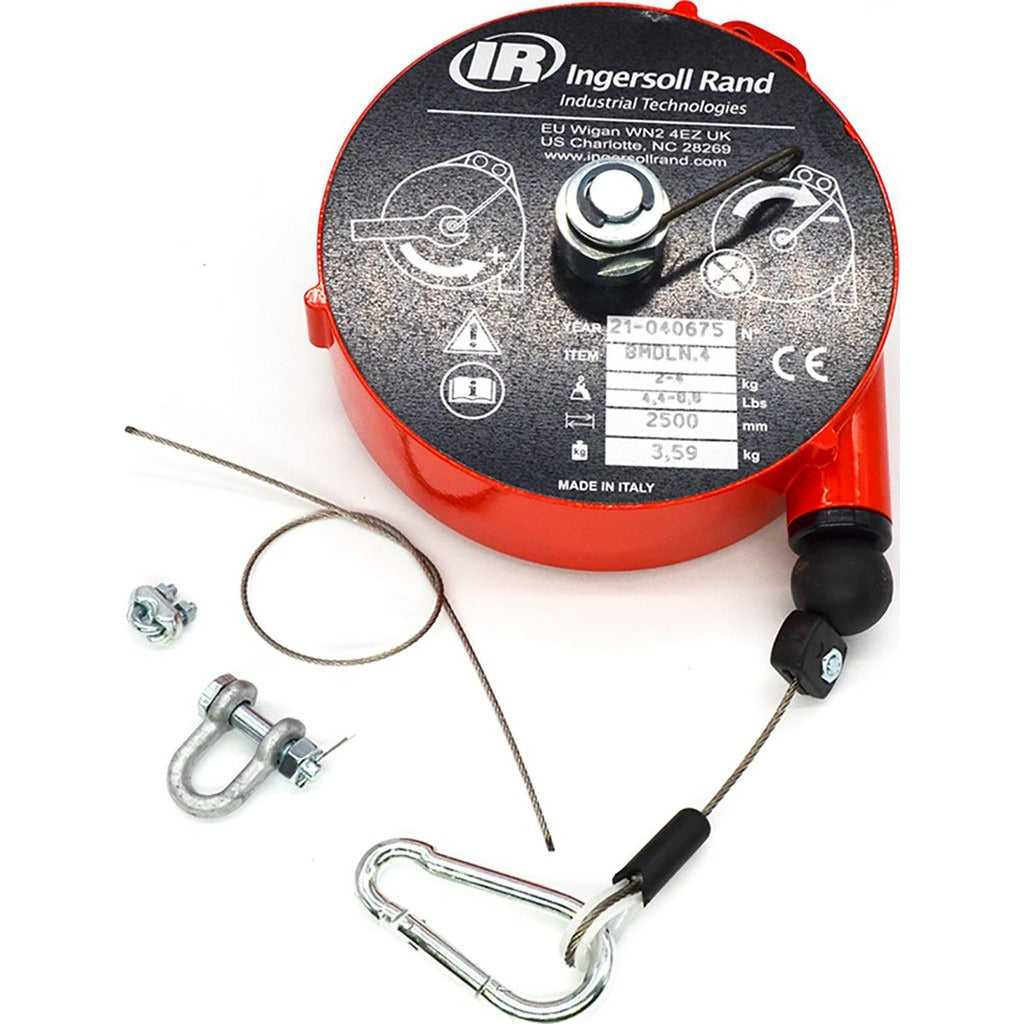

Ingersoll Rand BMDLN-4 Tool Balancer 8.8 Lb 8.2 Ft Cable

Product Description

The INGERSOLL RAND BMDLN-4 is a spring-driven tool balancer designed to suspend and counterbalance tools in assembly, manufacturing, and service environments. It supports loads from 4.4 pounds up to 8.8 pounds and feeds out 8.2 feet of stainless steel cable. The enclosed reel housing is cast aluminum, keeping the mechanism protected from chips, oil, and shop debris. Tension is field-adjustable to match the actual weight of the suspended tool, reducing operator fatigue during repetitive tasks. A fixed ring hanger mounts directly to an overhead structure or tool rail. Licensed trades and assembly technicians install this balancer as a productivity and ergonomics fixture at workstations.

The BMDLN-4 suits light-duty to medium-duty tool suspension in automotive shops, MRO facilities, production lines, and HVAC or electrical service bays. It is appropriate wherever a technician uses the same handheld tool repeatedly and needs it returned to a neutral hanging position automatically. The 8.2-foot cable gives adequate vertical travel for bench-height or overhead-track installations. Because the balancer does not include a ratchet lock, it is intended for continuous-use applications rather than fixed-position holds.

Key Features

• Load range of 4.4 to 8.8 pounds accommodates a wide range of handheld power and pneumatic tools
• 8.2-foot stainless steel cable resists corrosion in wet or chemical-exposed shop environments
• Cast aluminum enclosed reel housing protects the spring mechanism from contamination
• Field-adjustable tension allows tuning to the actual tool weight without disassembly
• Fixed ring hanger provides a straightforward attachment point to overhead rails or beams
• No ratchet lock keeps the cable in free-travel mode for continuous-use workflows

Compatibility

Designed as a general-purpose overhead tool balancer suitable for handheld pneumatic, electric, and cordless tools falling within the 4.4 to 8.8 pound load range.

Installation Notes

Install by a qualified facilities technician or maintenance professional. Confirm that the overhead mounting structure, rail, or beam is rated to support the combined weight of the balancer, cable, and tool before fastening the fixed ring hanger. Verify the anchor hardware is torqued to the structure manufacturer's specification and inspect the mounting point for any signs of fatigue before placing the unit in service. Do not exceed the 8.8-pound maximum load capacity, and re-adjust cable tension any time the suspended tool is swapped for one of a different weight.
