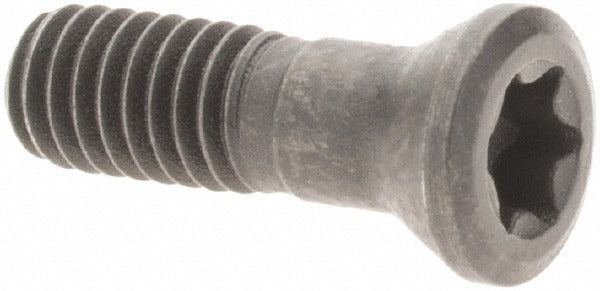

Ingersoll Cutting Tools 7032313 Insert Screw M3.5 Torx T15

Product Description

The INGERSOLL CUTTING TOOLS 7032313 is an insert screw designed to secure indexable cutting inserts in milling, turning, and boring toolholders. The screw features an M3.5 thread and a T15 Torx drive head for positive torque transfer without cam-out during installation and removal. The flat head profile seats flush against the insert pocket, maintaining proper insert positioning under cutting loads. At 11.40 millimeters overall length and 0.02 pounds, this is a precision hardware component used by machinists and tooling technicians in CNC and manual machining environments.

Insert screws are consumable tooling hardware replaced during routine indexable toolholder maintenance. This screw is suited for indexable toolholder assemblies requiring an M3.5 thread and T15 Torx drive. It is a standard hardware item used across production machining, job shops, and maintenance-repair-operations settings where indexable insert tooling is in regular use.

Key Features

• M3.5 thread size for secure insert clamping in compatible toolholders
• T15 Torx drive for positive engagement and reduced cam-out risk
• Flat head type seats flush in insert pocket for accurate insert positioning
• 11.40 millimeters overall length
• Lightweight at 0.02 pounds for easy handling during toolholder setup

Compatibility

Designed as a replacement insert screw for indexable toolholders requiring an M3.5 thread and T15 Torx drive. Confirm thread size, drive type, and overall length against your toolholder specification before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the machine powered down and spindle locked. Use a calibrated T15 Torx driver or torque wrench with the appropriate bit and follow the toolholder manufacturer's specified torque value for M3.5 insert screws. Do not overtighten, as this can strip the thread or crack the insert. Inspect the screw threads and pocket threads for wear or damage before reinstalling.
