Ingersoll Cutting Tools 6163654 Grooving Toolholder Tte

Product Description

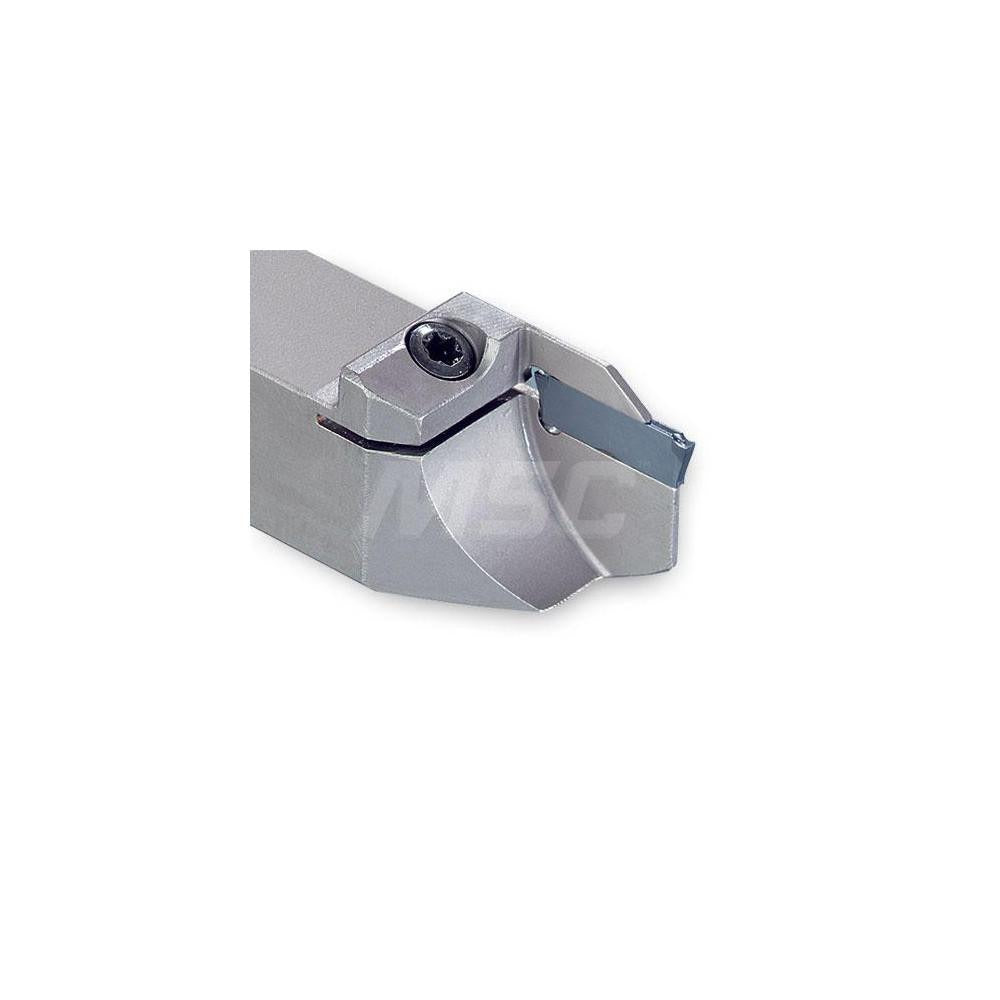

The INGERSOLL CUTTING TOOLS 6163654 is a left-hand, external indexable grooving toolholder in the TTE style, part of the T-Clamp Ultra Plus series. It accepts a wide range of compatible inserts secured by a clamp-type holding method, making insert changes fast and repeatable on the shop floor. The toolholder features a 0.5-inch square shank with a 4.25-inch shank length and an overall length of 5.0 inches. A minimum groove width of 0.069 inches allows work on tight-tolerance grooving and cut-off applications. Machinists and CNC toolroom technicians are the primary installers of this holder.

This toolholder is suited for external grooving and cut-off operations on lathes and turning centers. Its left-hand orientation makes it the correct choice for applications where the tool approaches the workpiece from the left side of the turret or tool post. The TTE-style head geometry and clamp insert-holding method are optimized for stable, vibration-resistant cuts in production turning environments, both in job shop and high-volume manufacturing settings. Coolant-through capability is not included on this holder.

Key Features

• Left-hand, external cutting orientation for left-approach turning setups
• TTE toolholder style from the T-Clamp Ultra Plus series
• Clamp-type insert holding for secure, repeatable seating
• Minimum groove width of 0.069 inches for precision grooving work
• 0.5 x 0.5-inch shank cross-section with 4.25-inch shank length
• Compatible with TDC, TDJ, TDT-RU, TDUF, TDV, TDXU-E, TSC, TSJ, and TST-E insert styles

Compatibility

Compatible insert size codes include TDC, TDJ, TDT-RU, TDUF, TDV, TDXU-E, TSC, TSJ, and TST-E. Full radius inserts are not compatible with this holder.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Before mounting or removing the toolholder, ensure the machine spindle is fully stopped and the control is in an e-stop or locked-out state per your facility lockout/tagout procedure. Secure the toolholder in the turret or tool post according to the machine manufacturer's torque and clamping specifications. Verify insert seating and clamp engagement before resuming cuts.
