Ingersoll Cutting Tools 6163483 Face Grooving Toolholder

Product Description

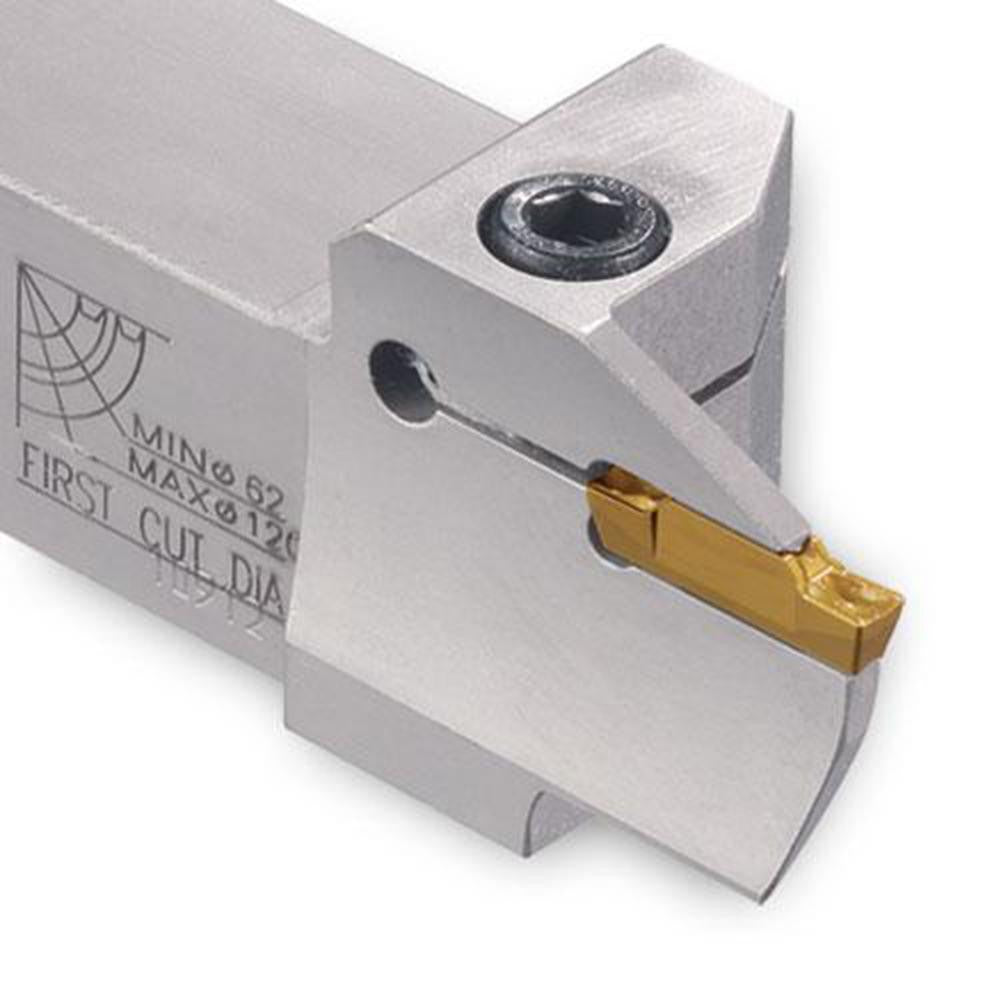

The INGERSOLL CUTTING TOOLS 6163483 is a right-hand face grooving toolholder in the TTFR/L-RN series, designed for indexable insert grooving operations on CNC lathes and turning centers. Built from steel with a clamp-style insert holding method, it accepts TD 6 and TS 6 inserts and handles a maximum workpiece diameter of 7.09 inches. With a maximum depth of cut of 0.98 inches and a shank height of 1.0 inch, this toolholder is suited for demanding face grooving applications across a range of workpiece materials. It is a multi-use tool rated for universal primary workpiece material.

This toolholder is intended for face grooving operations in production turning environments, including both job shop and high-volume machining. The TTFR style and right-hand orientation make it a direct fit for standard turret configurations. The 4.07-inch shank length and 1.93-inch head length allow for adequate reach on facing operations, while the 3.46-inch minimum overhang and minimum hole diameter support proper tool positioning in typical bore and face grooving setups.

Key Features

• Face grooving toolholder style TTFR with right-hand orientation
• Accepts TD 6 and TS 6 indexable inserts via clamp holding method
• Maximum workpiece diameter of 7.09 inches for versatile part coverage
• Maximum depth of cut of 0.98 inches for deep groove capability
• Minimum groove width of 0.236 inches supports fine groove profiles
• Steel construction for rigidity and durability in production turning
• Multi-use tool rated for universal workpiece materials

Compatibility

Compatible with TD 6 and TS 6 series indexable inserts. Designed as an OEM-style fit for TTFR/L-RN series toolholder setups on standard CNC lathe turrets.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine before mounting or indexing inserts or changing toolholders. Verify turret pocket dimensions and shank clearance before mounting. Follow machine tool manufacturer torque guidelines for turret clamping fasteners.
