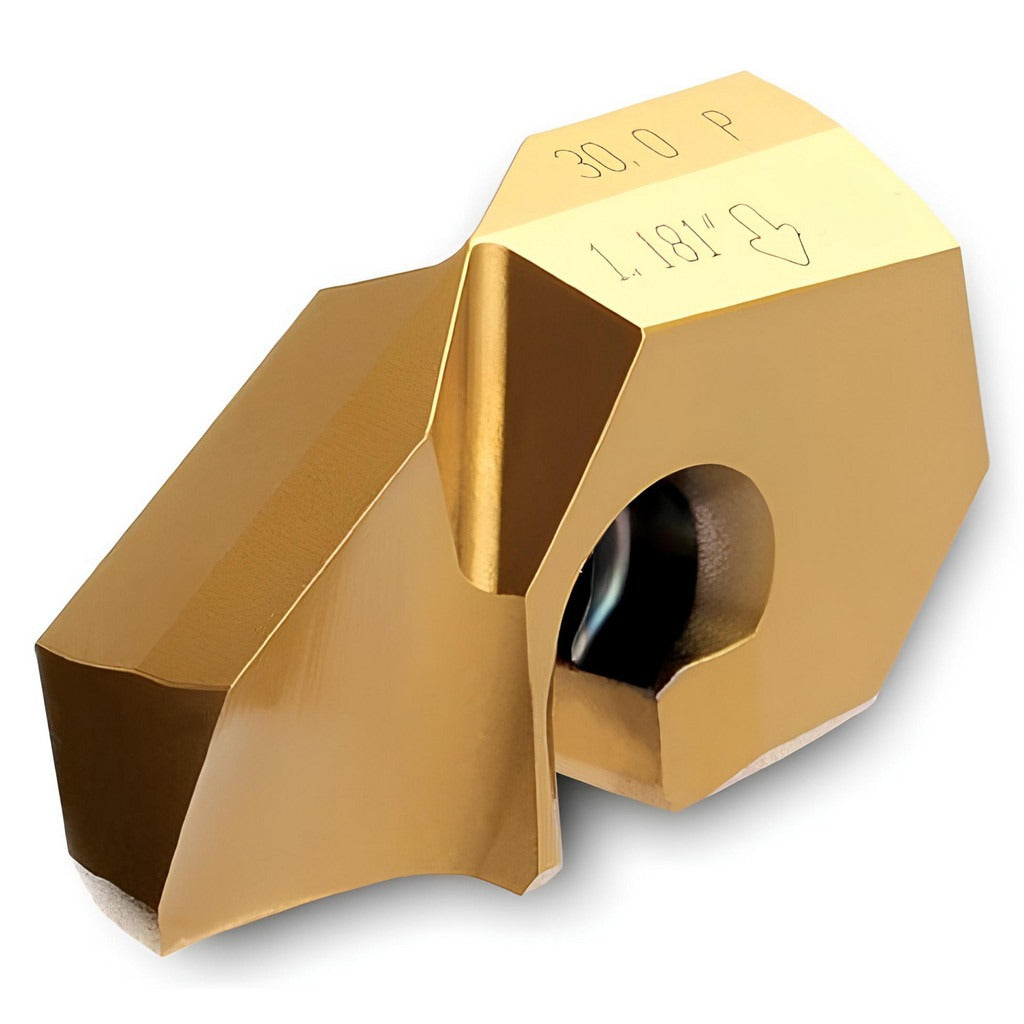

Ingersoll Cutting Tools 6137396 Replaceable Drill Tip 29mm

Product Description

The INGERSOLL CUTTING TOOLS 6137396 is a replaceable drill tip designed for use with LPA-series modular drill bodies. This solid carbide insert features a 29.00 mm cutting diameter, a 140-degree included point angle, and a dual-layer TiAlN/TiN PVD coating applied over a Grade IN2505 carbide substrate. The tip mounts via a clamp-style insert seat (size 28) and includes through-coolant capability to manage heat and chip evacuation at the cutting zone. With a flute length of 7.00 mm, a 2-flute helical configuration, and a regular spiral geometry, it is built for productive drilling in demanding materials. Machinists and tooling technicians working in production or job-shop environments install this tip as part of a modular drill assembly.

This replaceable tip is suited for drilling operations in steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. Material grade coverage includes ISO classifications P15, P30, M15, M35, S05, S20, and H-range materials, making it broadly applicable across aerospace, general machining, and heavy industry. It is also rated for spot drilling applications when used in the appropriate LPA-series holder. The coolant-through design makes it especially effective in deep-hole and high-feed operations where chip packing is a concern.

Key Features

• 29.00 mm cutting diameter with a 140-degree standard point angle for accurate entry and reduced thrust
• Solid carbide construction in Grade IN2505 for wear resistance and edge integrity
• TiAlN/TiN PVD coating improves heat resistance and extends tool life in steel and stainless applications
• Through-coolant channels support chip evacuation and thermal control at the cutting edge
• 2-flute helical geometry with regular spiral promotes stable chip flow
• Clamp-style insert seat (size 28) enables fast tip changes without removing the drill body from the machine
• Rated for coolant-thru drilling, standard drilling, and spot drilling per application data

Compatibility

Designed for use with LPA-series modular drill bodies that accept an Insert Seat Size 28 replaceable tip. ISO designation is LPA2860R01 IN2505. Conforms to ANSI standards. Verify seat size and series compatibility with the drill body before installation.

Installation Notes

This tip is installed and removed by a trained machinist or tooling technician. Ensure the machine spindle is fully stopped and the tool holder is secured in a vise or tool-change fixture before swapping tips. Use the correct torx or clamp screw driver as specified by the drill body manufacturer - do not overtighten. Confirm coolant ports are clear and aligned before returning the assembly to service.
