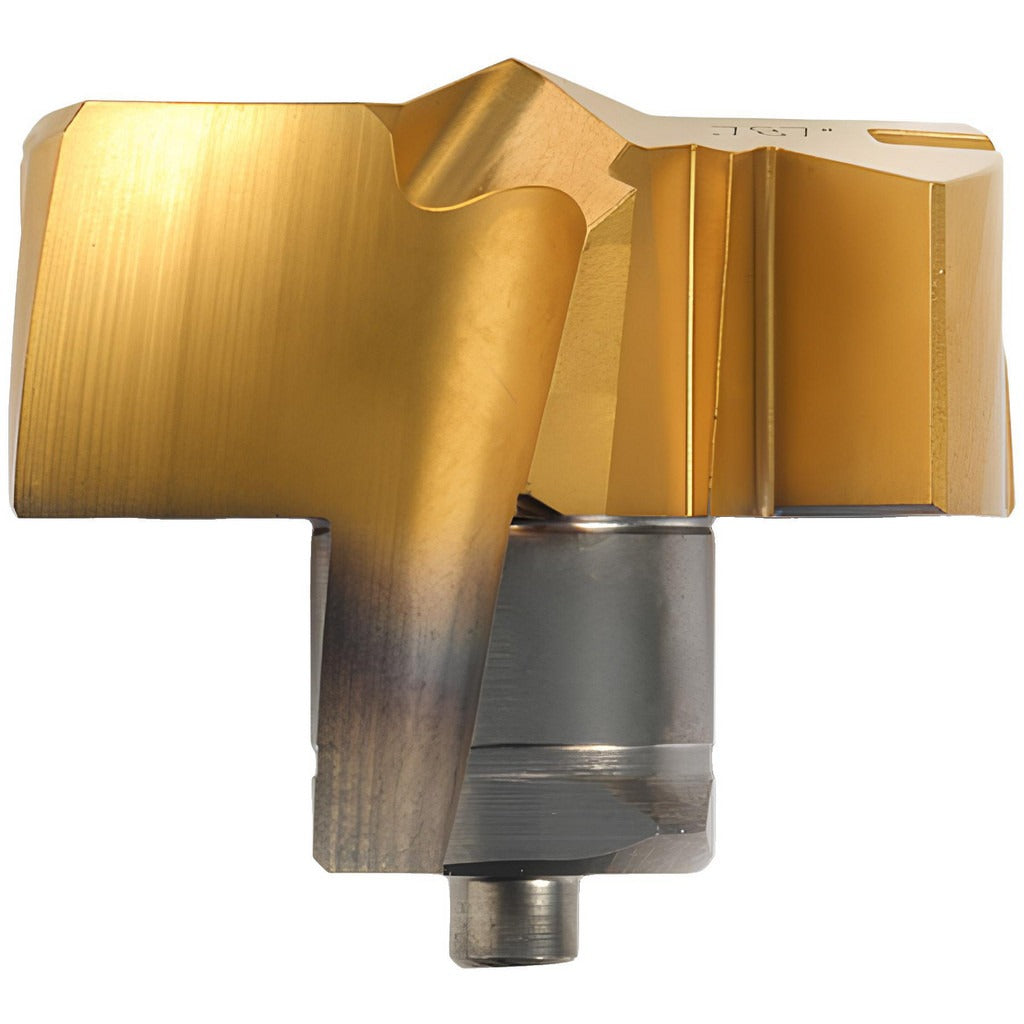

Ingersoll Cutting Tools 6125288 Replaceable Drill Tip 15mm

Product Description

The INGERSOLL CUTTING TOOLS 6125288 is a replaceable drill tip engineered for high-performance hole-making in demanding materials. Manufactured from solid carbide and coated with TiAlN and TiN via a PVD process, this insert delivers thermal resistance and edge durability in applications where tool life and hole quality are critical. It carries a 15.00 mm cutting diameter, a 90-degree drill point angle, and is designed for coolant-through operation to evacuate chips and control heat at the cutting zone. Licensed machinists, CNC operators, and toolroom professionals install and service these tips as part of modular drill systems.

This drill tip is suited for flat-bottom drilling, through-hole drilling, and coolant-through applications across a range of workpiece materials including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. It is classified under material grades P15, P30, M15, M35, S05, and S20, making it a versatile insert for production machining environments. The straight flute and straight spiral geometry support stable chip flow in short-hole drilling operations. It is part of the TPF series and conforms to ANSI standards.

Key Features

• Solid carbide substrate with PVD-applied TiAlN and TiN dual coating for extended tool life
• 90-degree included angle with standard point type for accurate entry and flat-bottom capability
• Coolant-through design channels fluid directly to the cutting edge for heat management and chip evacuation
• Two-flute straight configuration supports consistent chip flow in short-hole drilling
• Grade IN2505 formulated for steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials
• Clamp-style insert holding method for repeatable seating and quick tip changes

Compatibility

Designed for use with TPF series modular drill bodies requiring insert seat size 15. ISO designation TPF1550R01 IN2505 identifies compatible toolholder seats. Confirm seat size and ISO number against the drill body specification before installation.

Installation Notes

This tip is installed and replaced by machinists or CNC toolroom personnel following machine-specific lockout and tool-change procedures. Ensure the drill body seat is clean and free of chips or debris before seating the insert to maintain proper tip engagement and runout. Use the correct clamp torque and tooling per the drill body manufacturer's specification sheet. Do not operate the assembly without confirming coolant-through passages are clear and pressure is within the machine's rated range.
