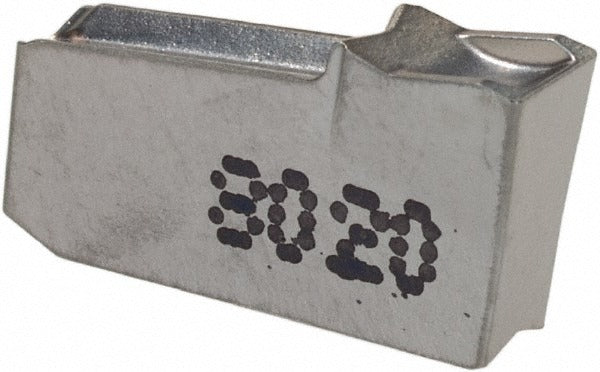

Ingersoll Cutting Tools 6050191 Carbide Cutoff Insert

Product Description

The INGERSOLL CUTTING TOOLS 6050191 is a solid carbide cutoff insert designed for grooving and parting operations on CNC lathes and turning centers. Built to TIMC insert style specifications, it carries the TT8020 manufacturer grade with a PVD coating process for improved wear resistance and edge retention. The insert features a 3.10 mm (0.1220 inch) cutting width, a neutral lead angle, a 7-degree relief angle, and a 0.20 mm corner radius. It is a single-end insert held in place by a clamp-style toolholder. Machinists and tooling technicians working on high-volume turning applications will find this insert suited to demanding material removal tasks.

This insert is intended for use in grooving and parting applications across residential and industrial machining environments. Its primary workpiece material designation covers superalloys as well as ferrous and non-ferrous metals, corresponding to material codes M, P, and S. The TT8020 grade is matched to material grades C1 through C6, making it a versatile choice across a range of workpiece hardnesses. The TIMC series insert seat size is 4, and the insert is compatible with clamp-style toolholders designed for TIMC geometry inserts.

Key Features

• Solid carbide construction with PVD coating for extended tool life in demanding cuts
• 3.10 mm cutting width (0.1220 inch) with a neutral lead angle and neutral hand orientation
• 7-degree relief angle reduces rubbing and supports clean parting cuts
• 0.20 mm corner radius minimizes stress concentration at the cutting edge
• Chipbreaker style C promotes controlled chip evacuation during grooving operations
• Multi-use rated for both grooving and parting on superalloys and common metal grades

Compatibility

Designed for use with clamp-style TIMC series toolholders accepting insert seat size 4. Suitable for grooving and parting operations on workpiece materials classified under material codes M, P, and S, covering superalloys, steel, and non-ferrous metals. Compatible with material grades C1, C2, C3, C4, C5, and C6.

Installation Notes

Installation is performed by a machinist or tooling technician. Before seating the insert, power down the machine and follow lockout/tagout procedures per applicable safety standards. Seat the insert fully in the clamp-style pocket and confirm the clamp torque is within the toolholder manufacturer's specified range before beginning a cut. Inspect the insert edge and corner radius condition at each tool change interval to prevent workpiece damage from a worn cutting edge.
