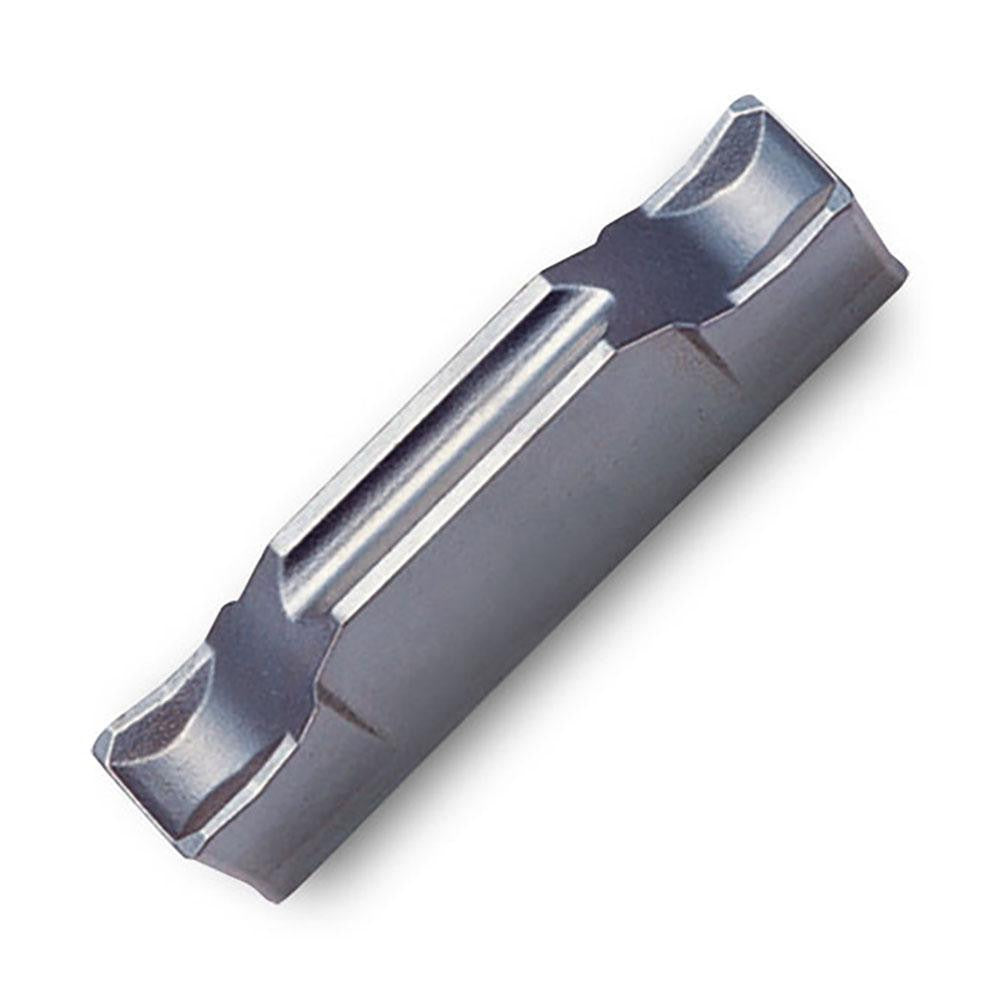

Ingersoll Cutting Tools 6000999 TDC3 Carbide Turning Insert

Product Description

The INGERSOLL CUTTING TOOLS 6000999 is a solid carbide turning insert in the TDC series, designed for grooving and parting operations on CNC lathes and turning centers. It carries a TT9080 grade designation and features a PVD-applied TiAlN and TiN dual coating that supports performance in demanding cutting environments. The insert has a neutral hand and neutral lead angle, making it adaptable across a range of toolholder orientations. At 0.79 inches overall length and 0.118 inches cutting width, it is a compact, single-end insert suited for precision groove profiles and cutoff work.

This insert is intended for use on steel, stainless steel, super-alloys, and titanium as primary workpiece materials, with secondary suitability for cast iron and hard materials. The ISO material codes P, M, and S cover its primary range, with K and H as secondary designations. It fits toolholders designed for TDC3 insert seats and is well suited for production environments where tight groove tolerances and consistent tool life are required. Licensed machinists and CNC operators working in job shops or high-volume turning operations are the typical end users.

Key Features

• PVD-coated with TiAlN and TiN for wear resistance and thermal stability
• Solid carbide construction for rigidity in grooving and parting applications
• Neutral hand and neutral lead angle for flexible toolholder compatibility
• TDC3 insert size with a 60-degree dog bone triangle geometry
• 0.008 inches corner radius for controlled edge definition at groove shoulders
• Multi-use capability across steel, stainless steel, super-alloys, titanium, cast iron, and hard materials
• 7-degree relief angle with C-style chipbreaker geometry

Compatibility

Designed for use in TDC series toolholders accepting a size 3 insert seat per ANSI code TDC3 and ISO code TDC3.

Installation Notes

Installation and replacement of turning inserts should be performed by a qualified machinist or CNC technician with the machine fully powered down and the spindle locked. Use the appropriate torque wrench and clamping hardware specified for the TDC insert seat to secure the insert without over-clamping. Inspect the insert pocket and clamp for wear or debris before seating a new insert. Always verify correct insert orientation and hand before returning the machine to operation.
