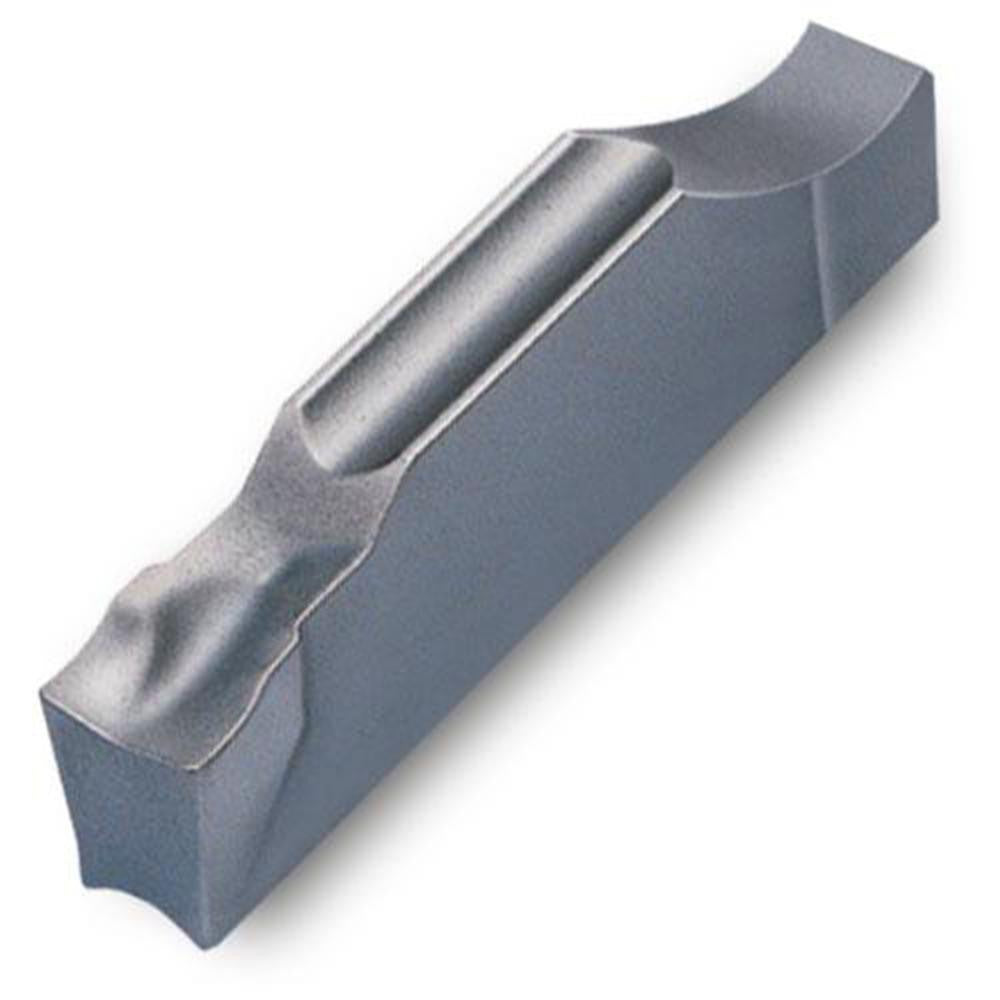

Ingersoll Cutting Tools 6000342 Carbide Cutoff Insert Tsj

Product Description

The INGERSOLL CUTTING TOOLS 6000342 is a solid carbide cutoff and grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It belongs to the TSJ series and features a right-hand cutting direction with a 6-degree lead angle and a 7-degree relief angle. The insert is manufactured in grade K10 uncoated carbide, making it well suited for applications where a bright, uncoated surface finish is preferred. The J-style chipbreaker aids in chip control during interrupted or continuous cuts. This insert is installed by machinists and CNC toolroom technicians working with carbide tooling systems.

This insert is intended for grooving and parting operations on cast iron and non-ferrous metals, corresponding to ISO material codes K and N. The TSJ series clamping system holds the insert securely in compatible TSJ-style toolholders. With a cutting width of 0.1181 inches and a corner radius of 0.0080 inches, it is suited for narrow groove and cutoff work where dimensional accuracy is critical. It is a single-end insert and is not reversible. Typical applications include production turning environments in job shops and manufacturing facilities where consistent groove geometry is required.

Key Features

• Solid carbide K10 grade construction for durability in cast iron and non-ferrous metal cutting
• Bright uncoated finish - no coating process applied, preserving sharp edge geometry
• J-style chipbreaker for reliable chip control in grooving and parting operations
• Right-hand cutting direction with 6-degree lead angle and 7-degree relief angle
• Cutting width of 0.1181 inches with a 0.0080-inch corner radius for precise narrow grooves
• Clamp-style insert holding method for secure seating in TSJ-compatible toolholders

Compatibility

Designed for use with TSJ-series clamp-style toolholders that accept size 3 inserts with an ANSI and ISO code of TSJ3-6R.

Installation Notes

Installation should be performed by a qualified machinist or CNC technician with the machine powered down and the spindle locked before changing inserts. Use the appropriate torx or clamp screw driver specified for TSJ-series toolholders to seat the insert firmly without overtightening. Inspect the insert pocket for chips or debris before seating a new insert. Always confirm cutting direction and lead angle orientation match the toolholder setup before resuming operation.
