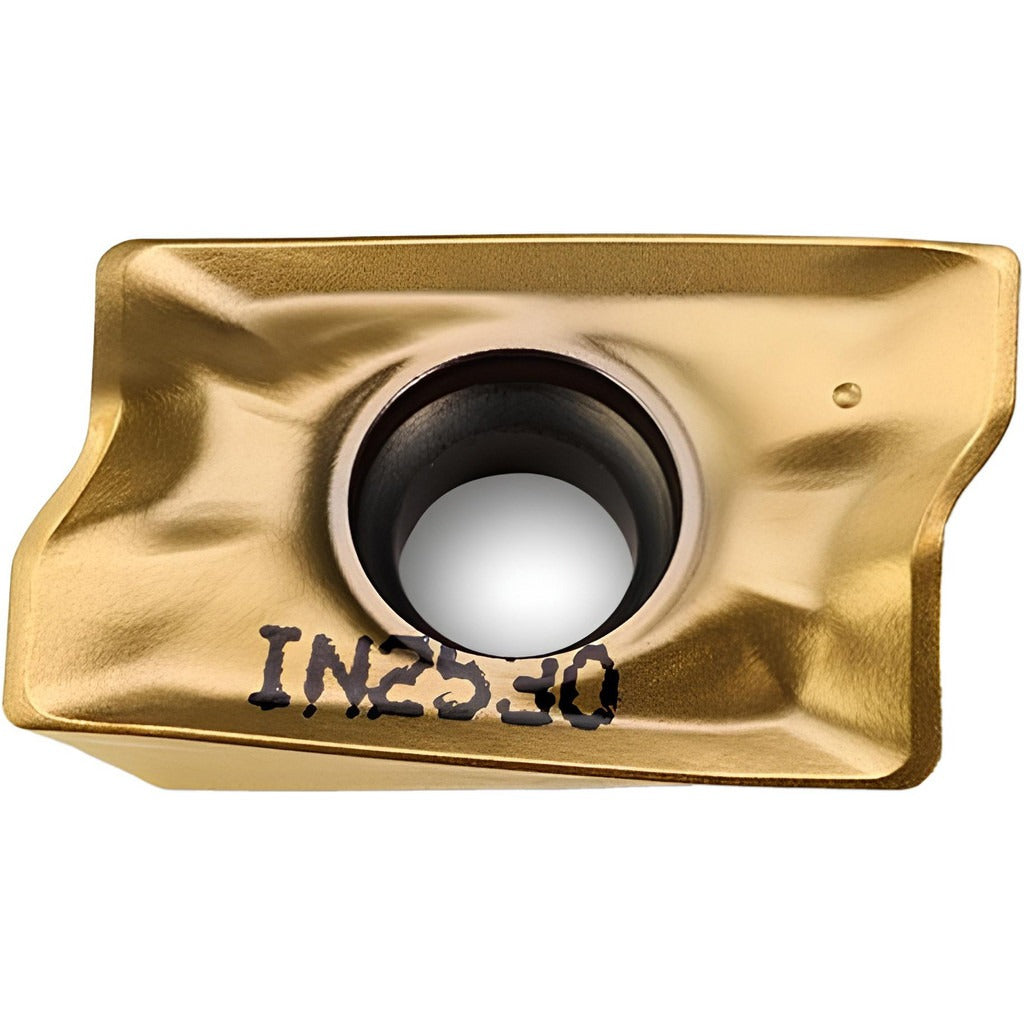

Ingersoll Cutting Tools 5874485 Milling Insert IN2530 Carbide

Product Description

The INGERSOLL CUTTING TOOLS 5874485 is a solid carbide milling insert in the AOMT series, designed for high-performance indexable milling applications. It carries a dual PVD coating - TiAlN and TiN - applied over a coarse-grain carbide substrate in the IN2530 manufacturer grade. The insert features a parallelogram shape with an 85-degree included angle, a sharp cutting edge style, a positive rake geometry, and a 0.0150-inch corner radius. Two cutting edges are available per insert. This style is installed and replaced by machinists and CNC tooling technicians working with indexable milling cutters.

This insert is suited for milling steel, stainless steel, superalloys, and titanium - material application codes P, M, and S. It is a single-sided, right-hand insert held in place by a screw-lock method. The maximum depth of cut reaches 0.633 inches, making it appropriate for medium to aggressive material removal passes in both production and job-shop environments on CNC vertical and horizontal milling machines.

Key Features

• Solid carbide substrate with coarse grain structure in the IN2530 grade for toughness in interrupted cuts
• Dual PVD coating - TiAlN plus TiN - for heat resistance and extended tool life in ferrous and exotic alloys
• Positive rake, sharp cutting edge geometry reduces cutting forces on difficult materials such as superalloys and titanium
• AOMT170504R insert style with 85-degree included angle and 0.0150-inch corner radius for controlled edge engagement
• Right-hand, single-sided design with screw-lock holding method for secure, repeatable indexing
• Conforms to ANSI and ISO standards under code AOMT170504R IN2530

Compatibility

Compatible with the following cutter series: 12J1G, 12L1G, 12N1G, 22J3G, 22J5G, 2J1G, and 2L1G. Designed as an OEM-style replacement insert for indexable milling tool bodies accepting the AOMT170504R insert style.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the appropriate torx or hex key to loosen and re-torque the screw-lock fastener per the tool body manufacturer specifications. Inspect the insert pocket and clamping screw for wear or debris before seating the new insert to ensure proper contact and runout.
