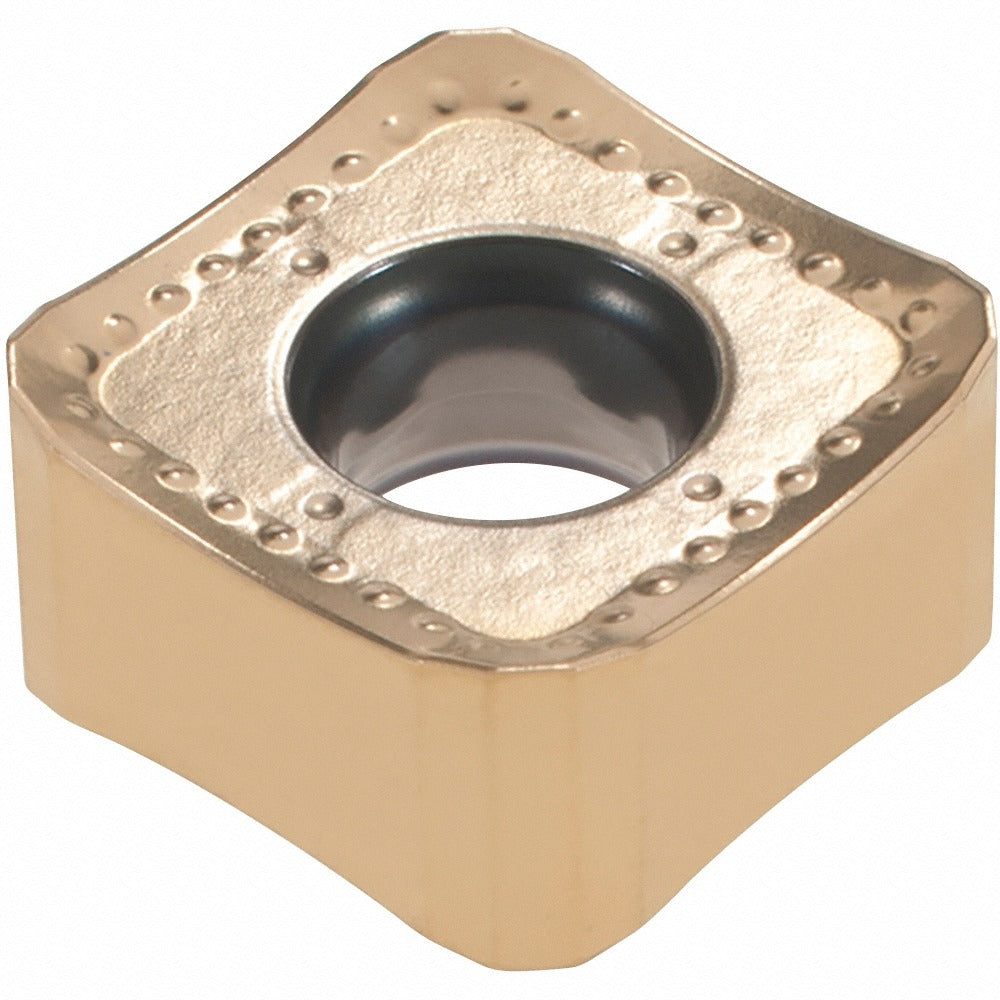

Ingersoll Cutting Tools 5849014 Milling Insert IN2530

Product Description

The INGERSOLL CUTTING TOOLS 5849014 is a square solid carbide milling insert in grade IN2530, designed for high-performance metal removal in demanding machining environments. Featuring a TiAlN and TiN PVD coating applied over a coarse-grain solid carbide substrate, this double-sided insert delivers 8 cutting edges per insert, maximizing tool life and cost efficiency. The SNGU insert style runs with a negative rake and zero relief angle, making it well suited for stable, rigid setups in milling operations on ferrous and exotic workpiece materials. Licensed machinists and CNC tooling technicians install and index this insert in compatible milling cutter bodies.

This insert is built for milling steel, stainless steel, superalloys, and titanium, covering a broad range of production and job-shop applications. The neutral hand orientation allows flexible positioning in compatible cutter assemblies. With a 0.0157-inch corner radius and a rounded cutting edge style, the insert is suited for finishing and semi-finishing passes where surface quality and edge integrity matter. It is appropriate for both horizontal and vertical milling setups in light manufacturing, aerospace component machining, and general metalworking shops.

Key Features

• Double-sided insert with 8 total cutting edges for extended tool economy
• IN2530 grade with TiAlN and TiN PVD coating for heat and wear resistance on steel and superalloys
• Square SNGU insert style, negative rake, zero relief angle for rigid cutting action
• Coarse-grain solid carbide substrate for toughness in interrupted and continuous cuts
• Compatible with 1DD1H, DD6H, DL5H, and DN5H cutter series
• Screw-held insert with neutral hand for straightforward indexing

Compatibility

Designed for use with the following cutter series: 1DD1H, DD6H, DL5H, and DN5H. Conforms to ANSI and ISO standards; ANSI/ISO code SNGU1205ENN J IN2530. Insert size code 1205.

Installation Notes

Insert indexing and replacement is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before indexing or replacing any cutting insert. Use the correct Torx or hex key specified for the cutter body's clamping screw to secure the insert without over-torquing the screw. Inspect the insert seat and clamping screw for debris or damage before seating a new insert.
