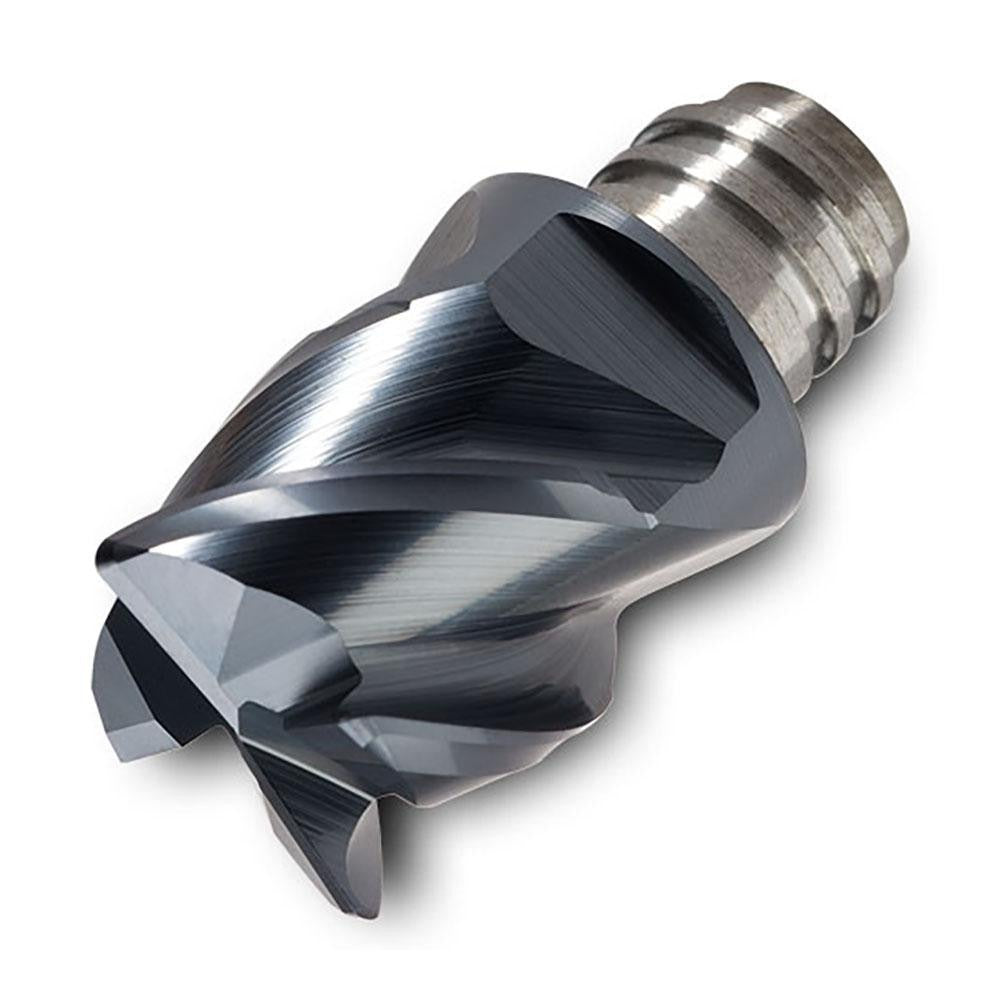

Ingersoll Cutting Tools 5840010 Corner Radius End Mill Tip

Product Description

The INGERSOLL CUTTING TOOLS 5840010 is a carbide corner radius end mill tip designed for use in the Chip Surfer interchangeable-tip milling system. It features a 0.5-inch cutting diameter, a 0.31-inch corner radius, and a TiAlN coating applied via PVD process for extended wear resistance in demanding cutting applications. With 4 flutes and a 45-degree helix angle, this tip is engineered for productive metal removal in steel, stainless steel, cast iron, superalloys, titanium, and hard materials. It threads onto compatible Chip Surfer holders using a T08 thread interface. Manufacturer grade is IN2005, which is suited to the ISO workpiece material groups P, M, K, S, and H.

This end mill tip is intended for professional machining applications in job shops, production environments, and toolrooms. The Chip Surfer system allows quick tip replacement without removing the holder from the spindle, reducing downtime on CNC machining centers and milling machines. The 0.37-inch maximum depth of cut and 0.65-inch functional length make this tip appropriate for profiling, slotting, and contouring operations in ferrous and difficult-to-machine materials.

Key Features

• Carbide substrate with TiAlN PVD coating for heat and wear resistance in steel and hard materials
• 0.5-inch cutting diameter with 0.31-inch corner radius for blend and profile work
• 4 flutes with 45-degree helix angle for smooth chip evacuation and stable cutting action
• T08 thread interface for direct mounting on compatible Chip Surfer system holders
• 0.37-inch maximum depth of cut and 0.65-inch functional length
• Rated for ISO material groups P, M, K, S, and H - covers steel through superalloys

Compatibility

Designed for use with Chip Surfer series interchangeable milling holders that accept a T08 thread interface. Manufacturer catalog number listed in supplier data is 47D-5037T8RD03 IN2005. No additional specific holder model numbers were provided in the product data.

Installation Notes

This tip is installed and removed by a machinist or toolroom technician using the appropriate Chip Surfer torque wrench or spanner tool specified by INGERSOLL CUTTING TOOLS for T08 thread connections. Power down and lock out the machine spindle before changing tips. Do not exceed the recommended axial depth of cut for the holder-tip assembly as specified in the manufacturer's programming guide. Confirm thread engagement is complete before initiating any cutting cycle.
