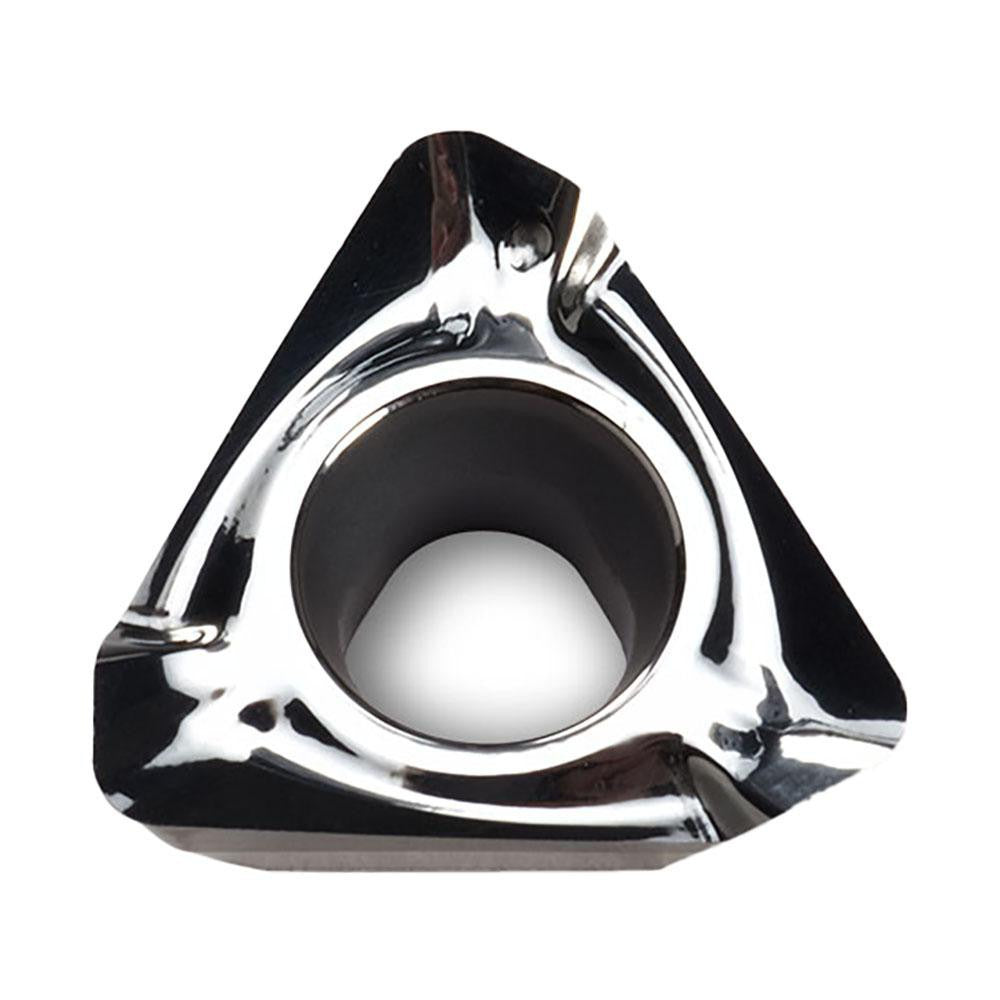

Ingersoll Cutting Tools 5813480 Milling Insert Carbide

Product Description

The INGERSOLL CUTTING TOOLS 5813480 is a solid carbide milling insert designed for precision material removal in milling operations targeting non-ferrous metals. Manufactured to ANSI and ISO standards under the THES series, this insert carries the IN10K fine-grain carbide grade with a bright, uncoated finish. It features a triangular shape with a 60-degree included angle, three cutting edges, and a positive rake geometry that promotes clean, efficient cutting in aluminum, copper, brass, and similar non-ferrous workpiece materials. The insert is single-sided and right-handed, with a corner radius of 0.031 inches and is retained by a screw-type holding method.

This insert is suited for light to moderate milling applications on non-ferrous metals in both shop and production environments. The positive rake and rounded corner geometry make it particularly effective where surface finish and edge integrity matter. It is compatible with specific Ingersoll cutter bodies and is appropriate for use by machinists and tooling specialists operating milling machines in job shops, production facilities, or maintenance environments. The P chip breaker designation indicates it is optimized for controlled chip formation in its primary material class.

Key Features

• Solid carbide, fine-grain IN10K grade for consistent performance in non-ferrous metal cutting
• Triangular insert shape with 60-degree included angle and three usable cutting edges
• Positive rake geometry promotes lower cutting forces and cleaner chip evacuation
• Bright, uncoated finish suitable for non-ferrous materials where coating adhesion is a concern
• Corner radius of 0.031 inches (1/32 inch) for controlled edge rounding and surface finish
• Screw-held, single-sided, right-hand configuration for secure, repeatable seating in compatible cutter bodies

Compatibility

Compatible with Ingersoll cutter series 1K_1D, 1KJ1D, 1KV1D, and KJ5D cutter bodies as specified by the manufacturer. ANSI and ISO code: THES060408FR-P IN10K.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the spindle fully stopped and the machine in a locked-out, de-energized state per applicable machine safety protocols. Seat the insert fully against the pocket locating surfaces before tightening the retaining screw to the cutter body manufacturer's specified torque. Inspect the insert pocket and seating surfaces for chips or debris before each insert change to ensure proper seating and avoid premature edge failure.
