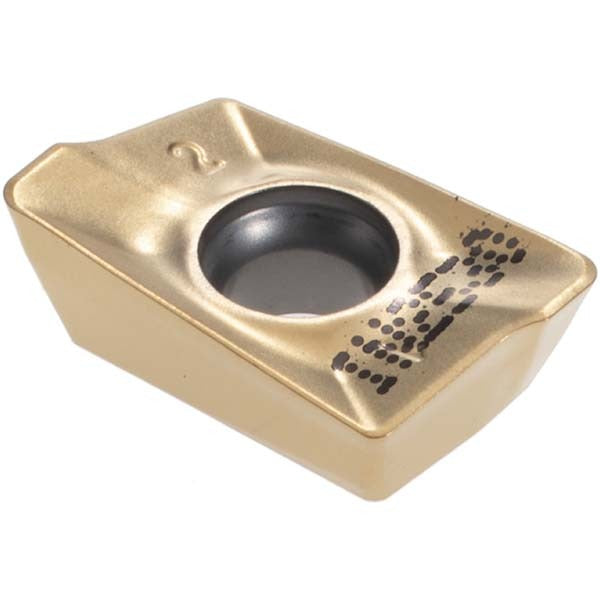

Ingersoll Cutting Tools 5813375 Milling Insert AOMT120408R

Product Description

The INGERSOLL CUTTING TOOLS 5813375 is a solid carbide milling insert in the AOMT series, designed for high-performance face and shoulder milling in demanding industrial applications. The insert carries manufacturer grade IN2530 and features a dual-layer TiAlN and TiN PVD coating applied over a coarse-grain carbide substrate. It has a parallelogram shape with an 85-degree included angle, a right-hand cutting orientation, a sharp cutting edge style, and a positive rake geometry. With an inscribed circle of 0.325 inches and a thickness of 0.190 inches, this is a precision-ground indexable insert held in place by a screw-type clamping system.

This insert is suited for milling steel, stainless steel, superalloys, and titanium in both roughing and semi-finishing passes. It is used in toolholders within the 12J1X, 12S1X, 12V1X, 22J3X, 22N3X, and 2J1X cutter series. Typical applications include face milling, shoulder milling, and contour milling on CNC machining centers in manufacturing and production environments. The insert is classified under ANSI and ISO standard AOMT120408R IN2530 and is rated for a cutting edge effective length of 0.490 inches.

Key Features

• Solid carbide coarse-grain substrate with IN2530 manufacturer grade for strength and wear resistance
• Dual PVD coating: TiAlN and TiN for thermal resistance and extended tool life in steel and superalloy cuts
• Positive rake and sharp cutting edge geometry for reduced cutting forces
• Right-hand orientation, single-sided insert with 2 cutting edges
• Screw-type holding method for secure and repeatable indexing
• Compliant with both ANSI and ISO insert standards

Compatibility

Compatible with cutter series 12J1X, 12S1X, 12V1X, 22J3X, 22N3X, and 2J1X. Intended for use with right-hand toolholders accepting AOMT120408R-style inserts. Primary workpiece materials are steel (P), stainless steel (M), superalloys, and titanium (S).

Installation Notes

Installation is performed by machining technicians or CNC setup personnel. Before indexing or replacing inserts, confirm the spindle is fully stopped and locked out per facility lockout/tagout procedures. Use the appropriate Torx or hex key to seat the clamping screw to the toolholder manufacturer specification. Inspect the insert pocket for chips or debris before seating the insert to ensure proper contact and repeatable runout.
