Ingersoll Cutting Tools 5812006 Milling Insert Solid Carbide

Product Description

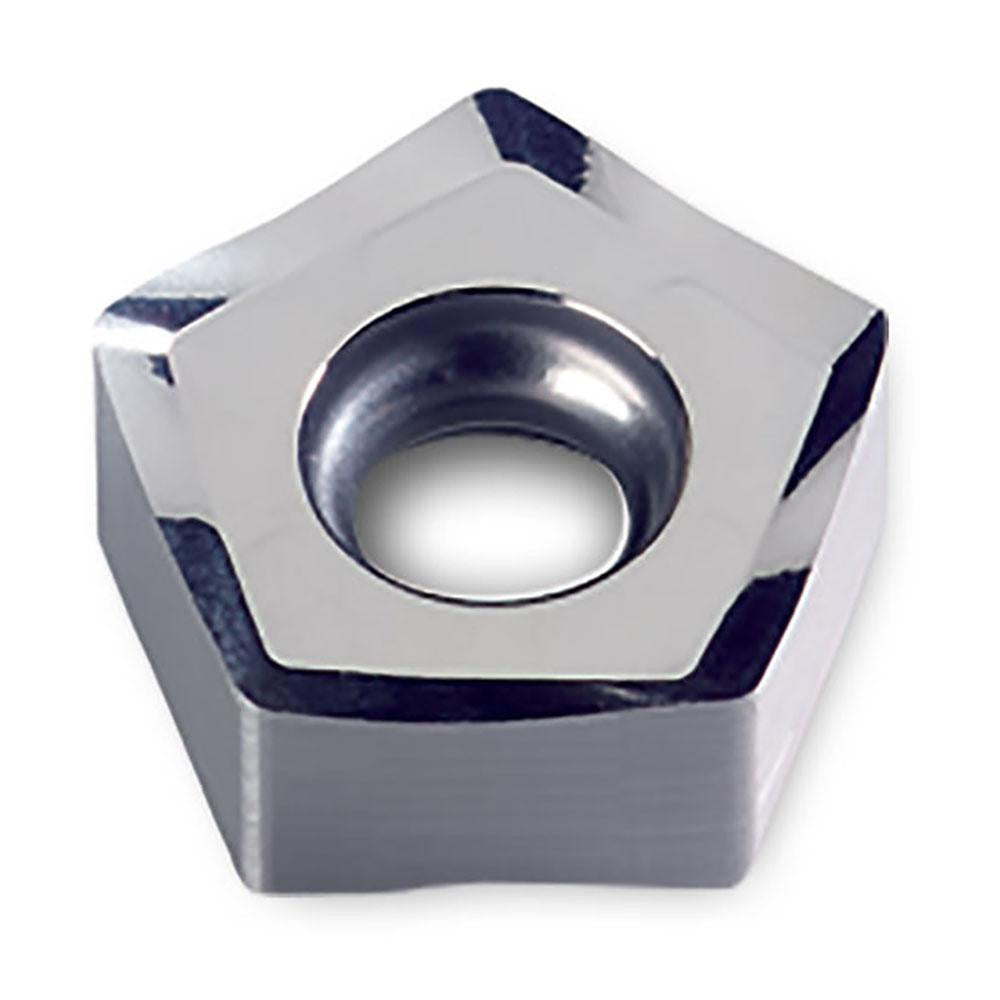

The INGERSOLL CUTTING TOOLS 5812006 is a solid carbide milling insert designed for material removal in non-ferrous metal applications. This PNCU-series insert features a pentagonal shape with 10 cutting edges, a negative rake geometry, and a bright uncoated finish classified as Micrograin grade IN05S. The insert measures 0.45 inches in length and width, with a thickness of 0.217 inches and a corner radius of 0.030 inches. Its double-sided design maximizes the number of usable cutting edges per insert, reducing tooling cost per edge. It is held in place via screw-style clamping and is intended for right-hand cutting direction.

This insert is suited for milling operations on non-ferrous metals such as aluminum and copper alloys. The uncoated Micrograin carbide construction performs well in high-speed finishing and semi-finishing passes where sharp edge retention is critical. It is compatible with the 4W2A and DM5G cutter series and is sized to ANSI and ISO standards under code PNCU0805GNFR-P. Machinists and tooling technicians working in precision milling environments will find this insert appropriate for applications requiring consistent chip control, aided by the P-style chip breaker geometry.

Key Features

• Pentagon insert shape with 10 cutting edges for high edge economy
• Double-sided design maximizes usable cutting edges per insert
• Micrograin solid carbide grade IN05S optimized for non-ferrous metal cutting
• Bright uncoated finish suitable for high-speed passes on aluminum and similar materials
• P-style chip breaker for controlled chip evacuation
• Compliant with both ANSI and ISO insert standards

Compatibility

Compatible with the 4W2A and DM5G cutter series. Insert conforms to ANSI code PNCU0805GNFR-P S IN05S and ISO code PNCU0805GNFR-P. Designed for screw-held toolholders accepting PNCU0805 insert size geometry in right-hand orientation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the machine powered down and locked out per facility lockout/tagout procedures. Seat the insert fully in the pocket and torque the clamping screw to the toolholder specification provided by the cutter body manufacturer. Inspect the insert pocket for debris or wear before seating a new insert. Do not exceed the recommended cutting parameters for the IN05S grade and the target workpiece material.
