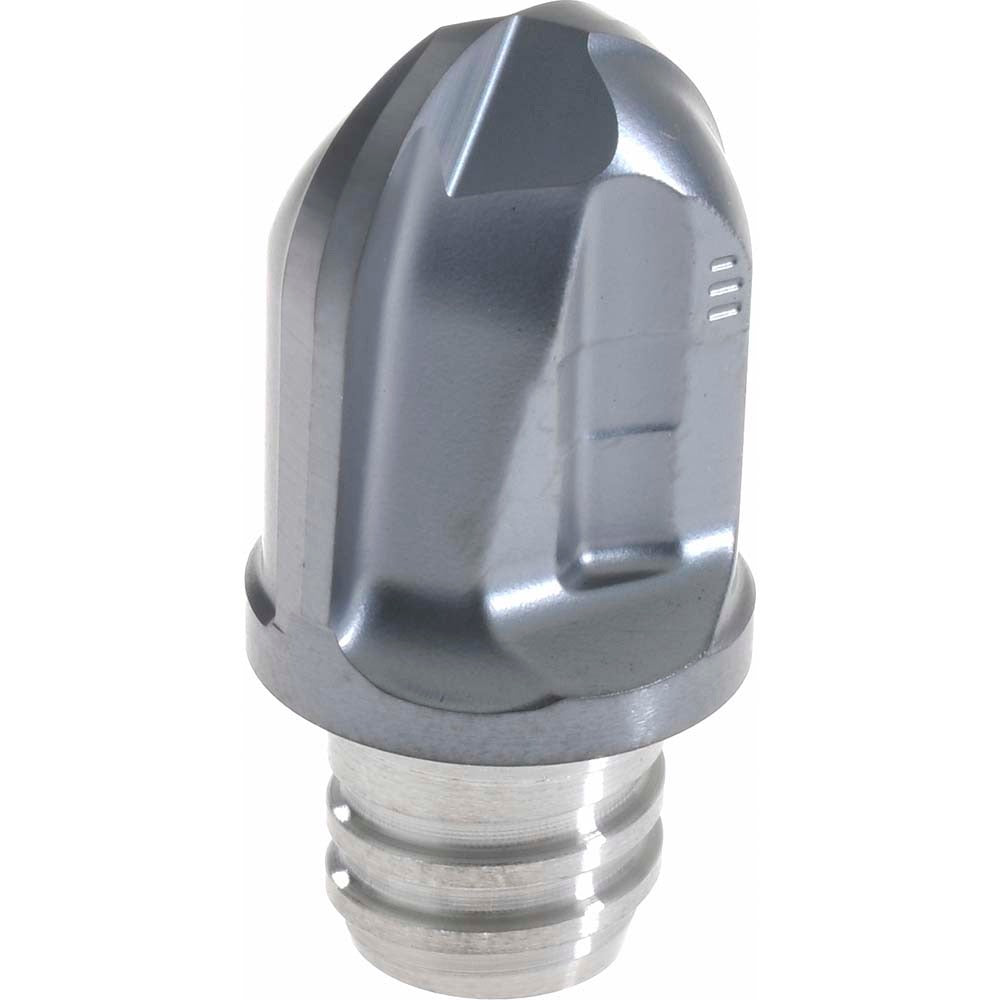

Ingersoll Cutting Tools 5810592 Ball Nose Milling Tip

Product Description

The INGERSOLL CUTTING TOOLS 5810592 is a ball nose replaceable milling tip designed for high-performance milling operations in demanding machining environments. Built from solid carbide and finished with a PVD-applied TiAlN coating, this tip delivers thermal resistance and edge wear protection across a broad range of workpiece materials. It features a 0.5-inch cutting diameter, a 0.5-inch maximum depth of cut, and a 0.25-inch corner radius. With 2 flutes and a 0.64-inch functional length, it is engineered for the Chip Surfer modular tooling system. Machinists and CNC operators in job shops and production environments rely on this tip for consistent performance on steel, stainless, cast iron, super-alloys, titanium, and hard materials.

This tip is part of the Chip Surfer series, a modular replaceable-tip milling platform that allows the tip to be swapped at the machine without replacing the full tool body. It is suited for end milling, profiling, and contouring applications where a ball nose geometry is required. The T08 thread interface connects the tip to compatible Chip Surfer holders. Typical applications include finish milling on steel and stainless steel components, as well as hard material machining where TiAlN coating performance is critical.

Key Features

• Ball nose geometry for profiling, contouring, and 3D surface milling
• TiAlN coating applied via PVD process for thermal and wear resistance
• Solid carbide construction with IN2005 manufacturer grade designation
• 2-flute design supports chip evacuation in ferrous and hard material cuts
• T08 thread interface for use with Chip Surfer modular holder system
• 0.25-inch corner radius with 90-degree included angle

Compatibility

Designed for use with Chip Surfer series modular milling holders using a T08 thread interface. Compatible workpiece materials include steel (P), stainless steel (M), cast iron (K), super-alloys and titanium (S), and hard materials (H).

Installation Notes

Installation is performed by a machinist or CNC operator at the machine. Power down or lock out the spindle before threading the tip onto the holder. Use the appropriate torque wrench and interface tools specified for the Chip Surfer system when seating the tip. Coolant-through is not supported on this tip; confirm flood or mist coolant delivery at the holder level as needed.
