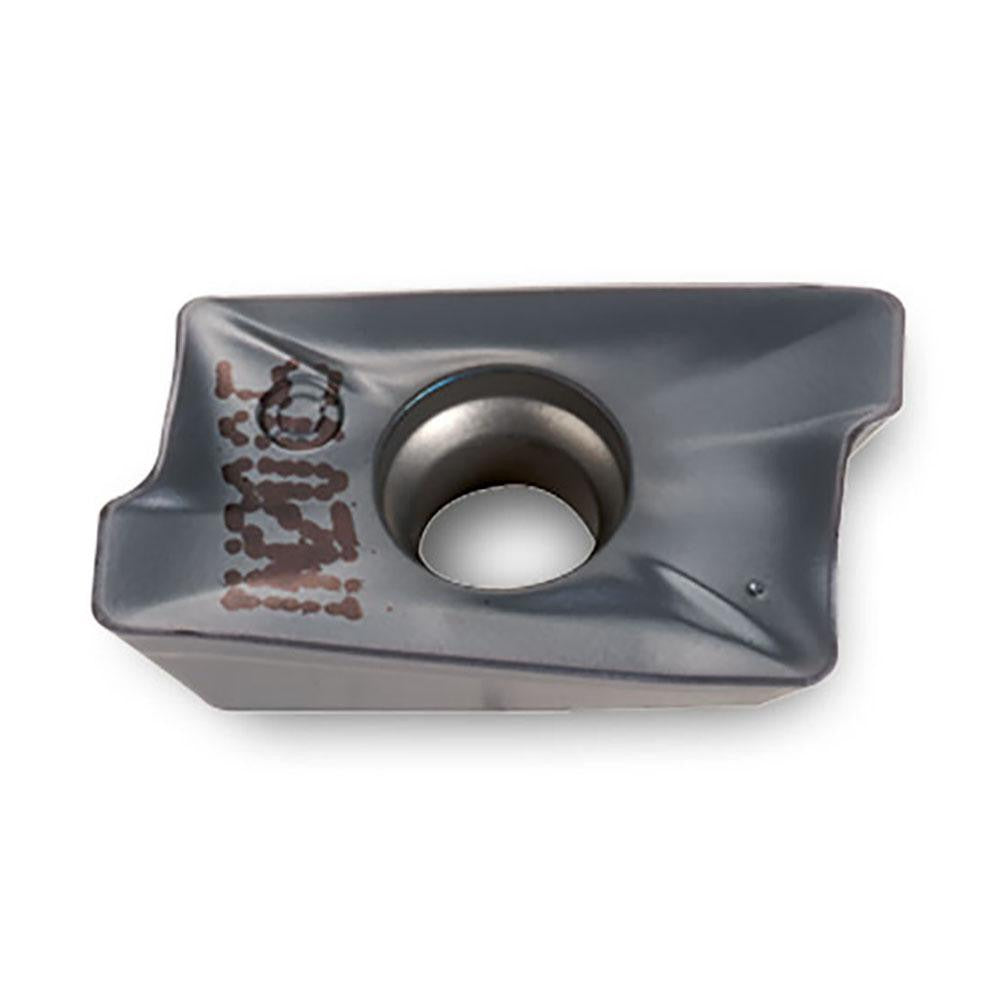

Ingersoll Cutting Tools 5805671 Milling Insert IN2030

Product Description

The INGERSOLL CUTTING TOOLS 5805671 is a solid carbide milling insert designed for high-performance face and shoulder milling operations. It carries the ISO designation AOMT180508R IN2030 and the ANSI designation APEH64R01 IN2030, both identifying it as a parallelogram-style insert in the APEH series. The insert is coated with TiAlN via a PVD process, providing heat and wear resistance suited to demanding cutting environments. With a positive rake geometry, a sharp cutting edge style, and a relief angle of 11 degrees, it is engineered to reduce cutting forces and deliver clean chip evacuation. Licensed machinists and tooling specialists install these inserts in compatible indexable milling cutter bodies.

This insert is intended for milling steel, stainless steel, cast iron, superalloys, and titanium - covering ISO material groups P, M, K, and S. It is applicable in both roughing and finishing passes where a right-hand, single-sided insert with a positive rake is appropriate. The IN2030 grade uses a coarse grain solid carbide substrate well suited to interrupted cuts and variable-condition machining encountered in job shop and production environments alike. Compatible cutter series include 12J1E, 12S1E, 22J3E, 23J6G, 2J1E, and 4W2A.

Key Features

• TiAlN PVD coating for elevated heat resistance and extended tool life across multi-material applications
• Positive rake geometry with sharp cutting edge style to reduce cutting forces and improve surface finish
• Parallelogram insert shape (APEH series) with 85-degree included angle for shoulder and face milling
• Two cutting edges per insert, right-hand orientation, single-sided configuration
• Coarse grain carbide substrate (IN2030 grade) suited to interrupted cuts and variable-condition machining
• Screw-held mounting method for secure, repeatable indexing in compatible cutter bodies
• Conforms to both ANSI and ISO insert standards for broad tooling compatibility

Compatibility

Compatible with Ingersoll cutter series 12J1E, 12S1E, 22J3E, 23J6G, 2J1E, and 4W2A. Designed as an OEM-style indexable insert for use in Ingersoll APEH-series indexable milling cutter bodies that accept screw-clamped inserts of this geometry and size.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque driver for the clamping screw to avoid stripping threads or cracking the carbide substrate - refer to the cutter body manufacturer's torque specification. Handle carbide inserts with care; edges are sharp and the substrate is brittle under impact.
