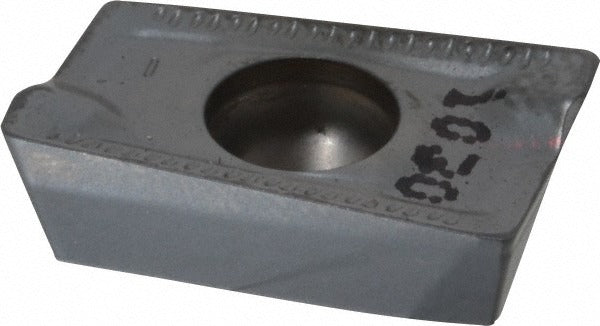

Ingersoll Cutting Tools 5802439 Milling Insert IN1030

Product Description

The INGERSOLL CUTTING TOOLS 5802439 is a solid carbide milling insert carrying ISO designation APKT160408R-HR and ANSI code APKX53R01 IN1030. It is a single-sided, right-hand parallelogram-style insert with a positive rake geometry and two cutting edges. The insert is coated with TiCN via a PVD process on a coarse-grain solid carbide substrate. With an inscribed circle of 0.375 inches, a thickness of 0.207 inches, and a corner radius of 0.031 inches, this insert is engineered for productive milling in demanding materials. Licensed machinists and CNC milling operators install these inserts in compatible indexable milling cutters.

This insert is intended for milling operations in steel, stainless steel, superalloys, and titanium. The HR chip breaker geometry supports work in these tough materials by controlling chip flow and reducing cutting forces. The positive rake angle and sharp cutting edge style make it well suited for finishing and semi-finishing passes where surface quality and tool life in difficult-to-machine alloys are the primary concerns. It fits compatible Ingersoll cutter bodies and is held in place by a screw-clamp holding method.

Key Features

• ISO code APKT160408R-HR with ANSI equivalent APKX53R01 IN1030 for cross-reference identification
• TiCN coating applied via PVD process on coarse-grain solid carbide substrate for wear resistance in steel and superalloys
• Positive rake geometry with sharp cutting edge style reduces cutting forces and heat generation
• HR chip breaker controls chip formation in steel, stainless steel, superalloys, and titanium
• Two cutting edges per insert; right-hand, single-sided configuration
• Screw-clamp holding method provides secure, repeatable seating in compatible cutter bodies

Compatibility

Compatible with Ingersoll cutter series 12J1B, 12N1B, 12S1B, 22J3B, 22J5B, and 2J1B. Rated for primary workpiece materials steel (P), stainless steel (M), and superalloys and titanium (S) per material grade codes.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the cutter body is secured or removed from the spindle before replacing inserts. Use the correct Torx or hex key for the insert clamping screw as specified by the cutter body manufacturer. Inspect the insert pocket seat and screw threads for debris or damage before seating a new insert to ensure proper clamping force and runout.
