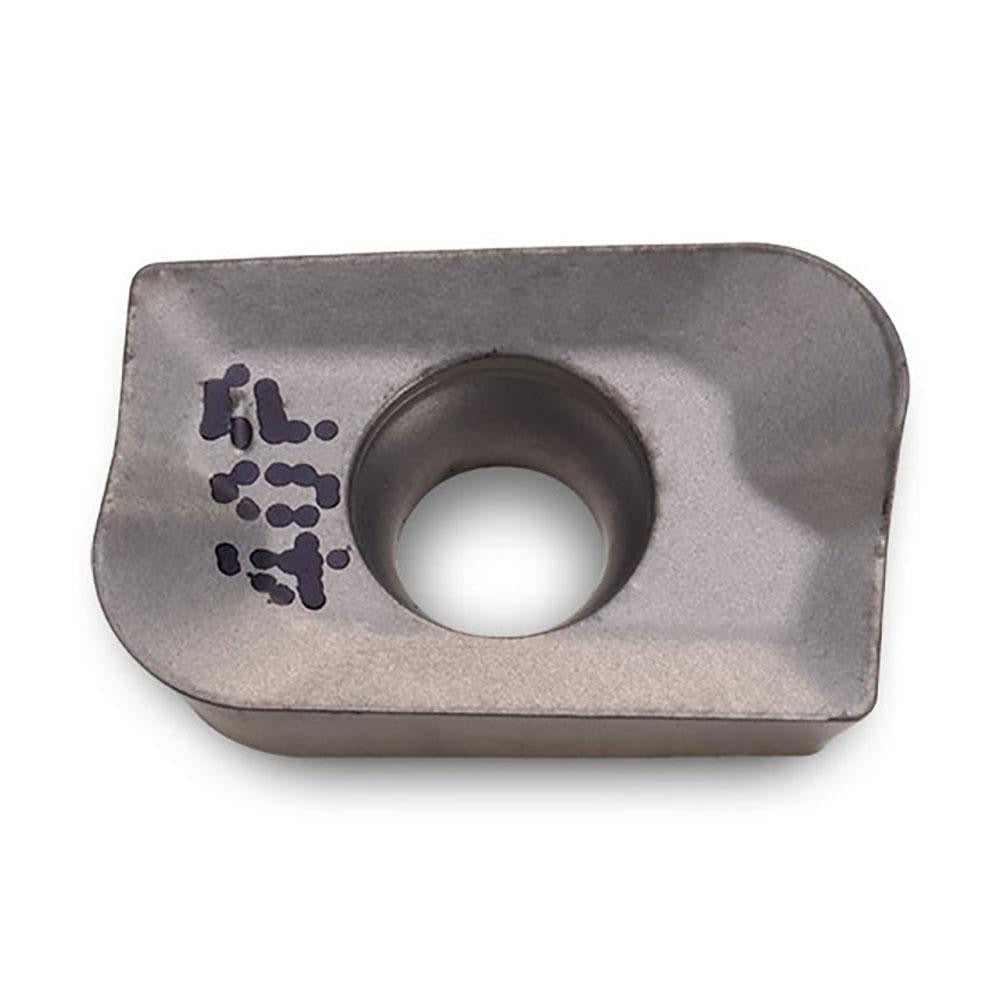

Ingersoll Cutting Tools 5800681 Milling Insert APKT120324R IN40P

Product Description

The INGERSOLL CUTTING TOOLS 5800681 is a solid carbide milling insert designed for precision metal removal in milling operations. It carries the ISO designation APKT120324R and manufacturer grade IN40P, with a bright uncoated finish suited for cutting applications where coating is not required. The insert features a parallelogram shape with a positive rake angle and an 11-degree relief angle, which reduces cutting forces and promotes clean chip evacuation. With a corner radius of 0.093 inches and two cutting edges, it delivers consistent, repeatable performance in steel milling. It is held in place by a screw-type clamping method and is designed for right-hand cutting orientation.

This insert is intended for use in steel milling applications, classified under material grade C5 and C6 and primary workpiece material code P (steel). It fits into compatible milling cutter bodies and is appropriate for both production shops and maintenance machining environments. The insert is single-sided with a sharp cutting edge style and a common chip breaker configuration. It is suited for use by machinists, toolroom technicians, and CNC machine operators working with steel workpieces in light to medium milling passes.

Key Features

• Solid carbide construction, bright uncoated finish for steel cutting without coating interference
• Positive rake angle with 11-degree relief reduces cutting forces and extends tool life
• Corner radius of 0.093 inches for controlled surface finish on steel workpieces
• Two cutting edges per insert maximize value per unit
• Screw-type insert holding method ensures secure, repeatable seating in the cutter body
• Conforms to ANSI code APEB42R03 IN40P and ISO code APKT120324R for standardized specification and sourcing

Compatibility

Compatible with Ingersoll cutter series 12J1Q, 22J*Q, 22J3Q, and 2J1Q. Designed as an OEM-style replacement insert for milling cutter bodies accepting APKT120324R geometry inserts.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before replacing inserts. Use the appropriate Torx or hex key to seat and torque the clamping screw per the cutter body manufacturer specifications. Inspect the insert pocket and clamping screw for wear or debris before installing a new insert.
