Ingersoll Cutting Tools 5523577 Cnmg Turning Insert TT7015

Product Description

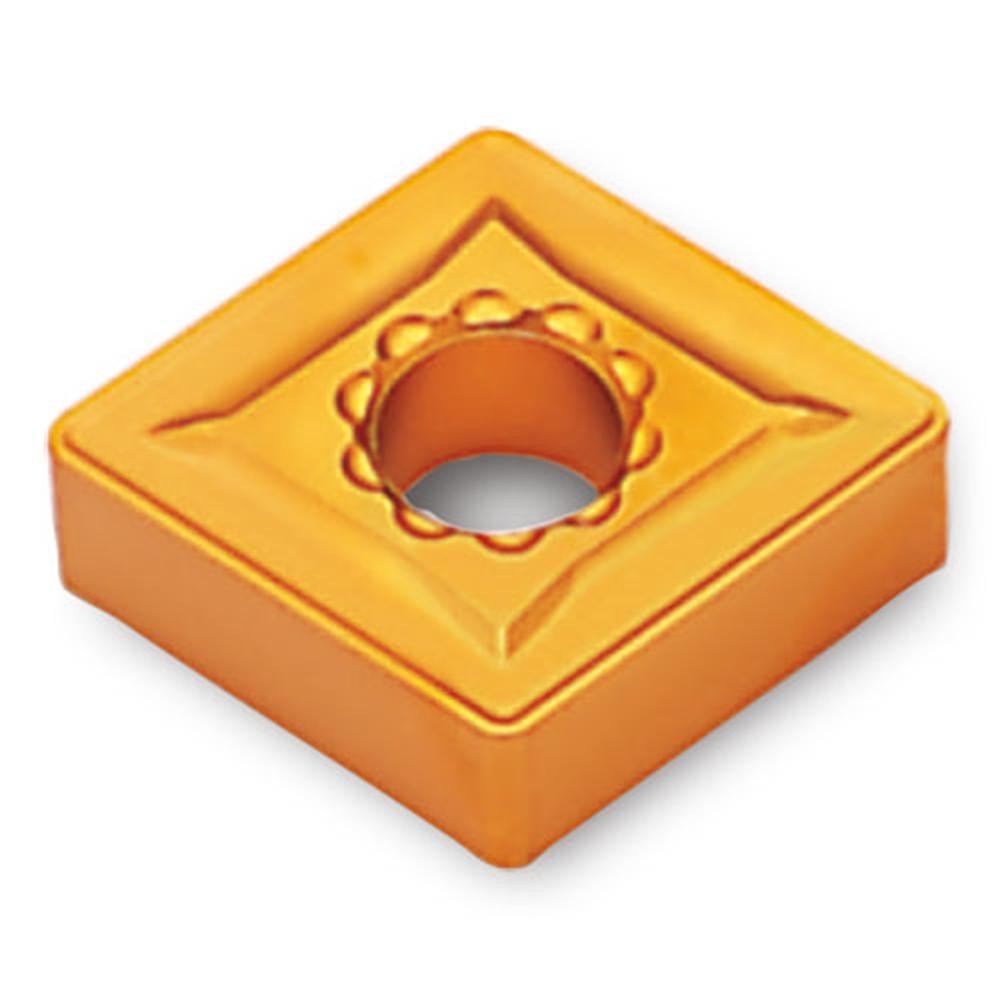

The INGERSOLL CUTTING TOOLS 5523577 is a CNMG-style solid carbide turning insert designed for negative-rake external turning operations. Coated via CVD with a TiCN and Al2O3 multilayer finish under the manufacturer grade TT7015, this insert is engineered for productive cutting in cast iron applications. The diamond-shaped insert body features an 80-degree included angle, a 0.031 inch corner radius, and four usable cutting edges, giving machinists extended tool life per insert. The RT chip breaker geometry controls chip flow during moderate to heavy roughing passes. Licensed machinists and CNC lathe operators are the primary users of this insert.

This insert is intended for turning centers and CNC lathes performing external turning on cast iron workpieces, covering both roughing and semi-finishing passes. The CNMG form factor seats in standard CNMG insert pockets using a clamp-style holding method. With a maximum depth of cut of 0.236 inch and an inscribed circle diameter of 0.500 inch, it suits medium to heavy stock removal on gray iron, ductile iron, and similar ferrous castings in production and job-shop environments alike.

Key Features

• TT7015 grade CVD coating with TiCN and Al2O3 layers for wear and thermal resistance on cast iron
• Diamond insert shape (80-degree included angle) provides a strong cutting edge with good versatility in turning profiles
• Four cutting edges per insert reduce per-edge tooling cost
• RT chip breaker geometry assists chip control during roughing cuts
• Negative rake geometry compatible with rigid, high-production setups
• Clamp-style holding method for secure seating in standard CNMG toolholders

Compatibility

Designed as a direct-fit replacement for standard CNMG 432 insert pockets using clamp-style toolholders. ANSI code CNMG432RT TT7015; ISO code CNMG120408RT TT7015.

Installation Notes

Turning insert replacement should be performed by a qualified machinist with the machine in a full stop and all motion axes locked out per shop lockout/tagout procedures. Use the appropriate torx or hex key to release the clamp screw before swapping the insert seat. Inspect the insert pocket and clamp for debris or wear before seating the new insert. Do not overtighten the clamp screw beyond toolholder manufacturer guidelines.
