Ingersoll Cutting Tools 5523324 Vnmg Turning Insert

Product Description

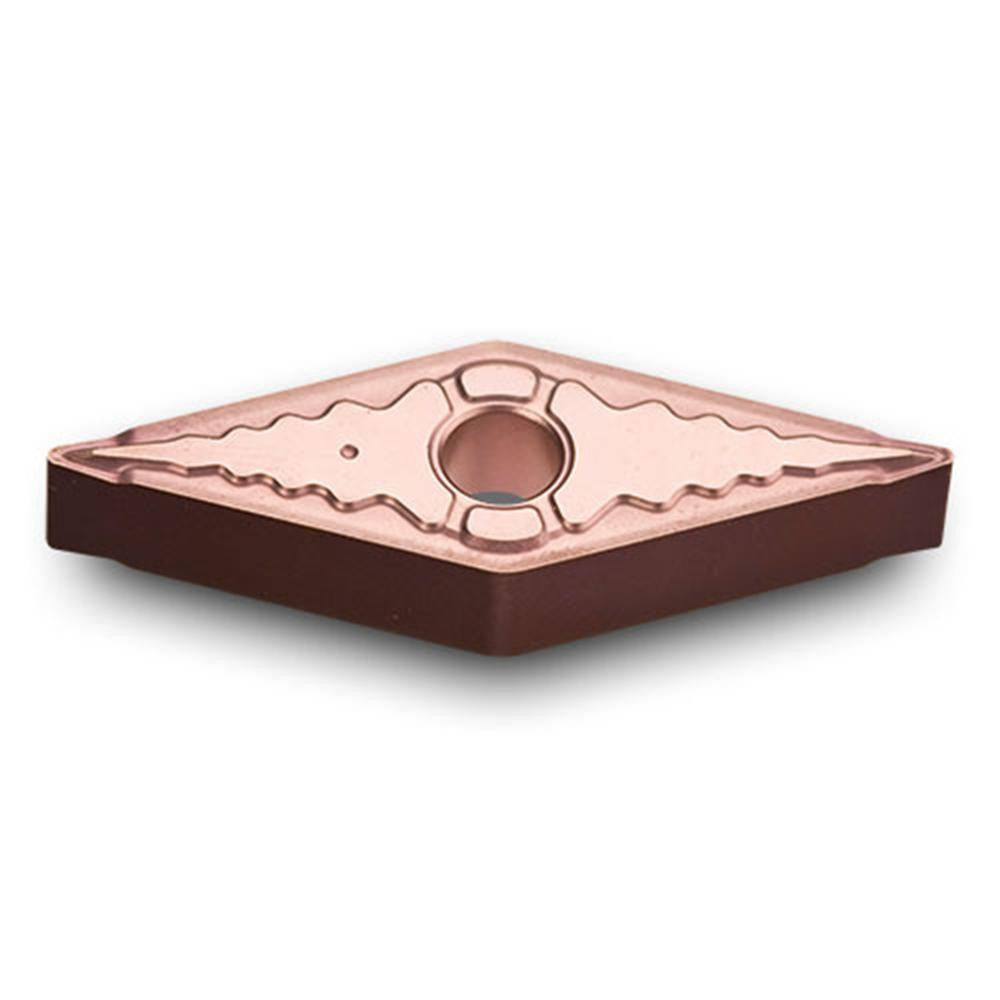

The INGERSOLL CUTTING TOOLS 5523324 is a VNMG-style indexable turning insert designed for precision material removal on CNC lathes and turning centers. Built from carbide substrate with a PVD-applied AlTiN and Titanium Nitride coating in the TT5080 grade, this insert delivers thermal resistance and edge hardness suited to demanding cutting environments. The diamond-shaped insert body carries a 35-degree included angle, a 0.016 inch corner radius, and an inscribed circle of 0.375 inches. Four cutting edges are available per insert, making it an efficient choice for production turning operations requiring consistent tool life.

This insert is intended for use in turning operations targeting stainless steel, superalloys, and titanium workpieces - materials that generate high cutting temperatures and demand coating systems that resist oxidation and crater wear. The EA chip breaker geometry supports controlled chip evacuation in these materials. With a neutral hand orientation and clamp-style holding, it fits standard VNMG insert pockets on production lathes used in aerospace, medical, and industrial manufacturing environments. The maximum depth of cut is 0.059 inches, making it appropriate for finishing and light-to-medium roughing passes.

Key Features

• TT5080 grade carbide with PVD AlTiN and Titanium Nitride coating for high-temperature cutting resistance
• VNMG insert style with 35-degree diamond shape and 4 usable cutting edges
• 0.016 inch corner radius for controlled surface finish in finishing applications
• EA chip breaker geometry optimized for stainless steel, superalloy, and titanium workpieces
• Neutral hand orientation and clamp holding method for broad toolholder compatibility
• 0.059 inch maximum depth of cut suited to finishing and light roughing passes

Compatibility

Designed for use in standard VNMG insert pocket toolholders accepting a 3/8-inch inscribed circle insert with clamp-style retention. ISO code VNMG160404EA TT5080 identifies the insert geometry and grade for toolholder matching. Primary workpiece material codes M and S correspond to stainless steel and superalloy or titanium classifications per ISO turning insert standards.

Installation Notes
