Ingersoll Cutting Tools 5522835 Turning Insert Ccmt Carbide

Product Description

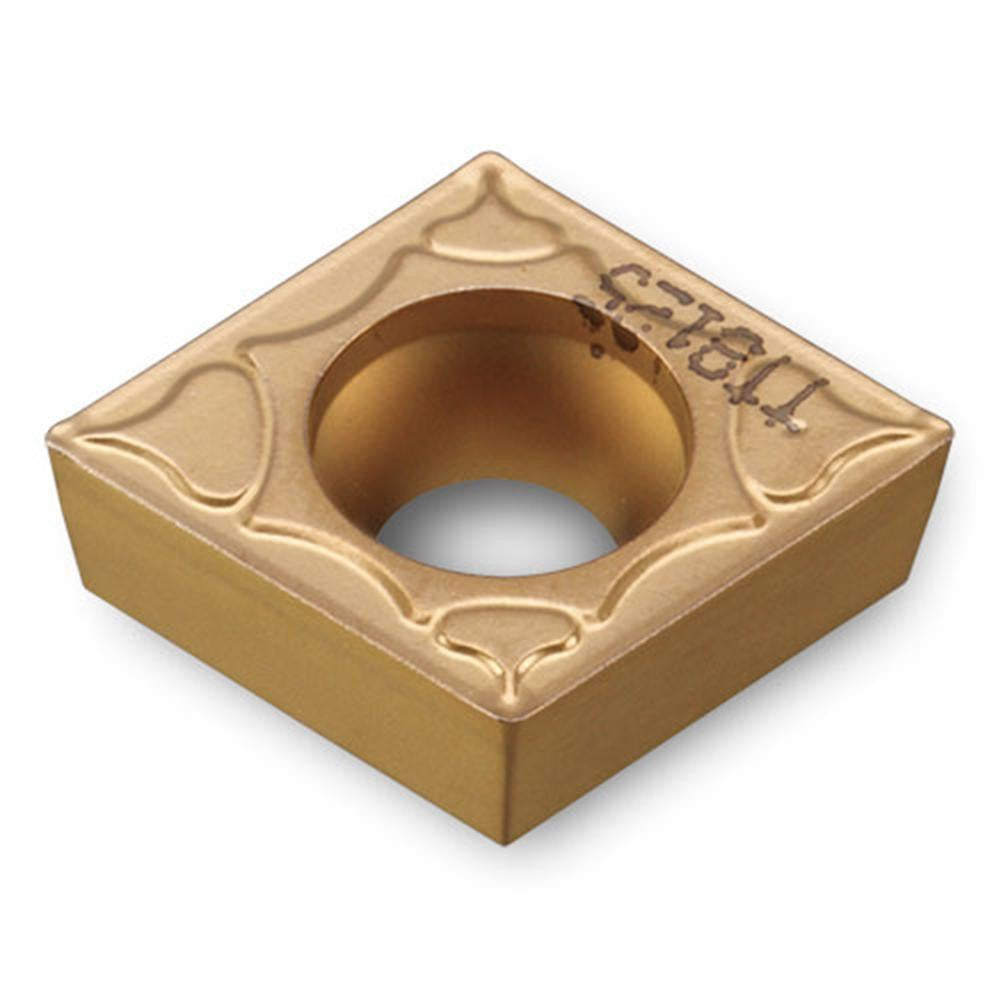

The INGERSOLL CUTTING TOOLS 5522835 is a CCMT-style solid carbide turning insert designed for precision external and internal turning operations on CNC and manual lathes. Manufactured in the TT9080 grade with a PVD-applied AlTiN and TiN dual coating, this insert delivers extended tool life and thermal resistance in demanding cutting environments. The 80-degree diamond (C) insert shape provides a strong cutting geometry, while the positive rake and PC chip breaker promote efficient chip control and reduced cutting forces. With a 1/4-inch inscribed circle and a 0.0156-inch corner radius, it is suited for medium finishing to semi-finishing passes.

This insert is engineered primarily for machining stainless steel, carbon and alloy steels, and super-alloys including titanium - workpiece material codes P, M, and S per ISO classification. It is held in place by a screw-lock method and seats into standard CCMT-compatible toolholders. Typical applications include shaft turning, facing, and contour work on production CNC lathes in job shop, aerospace, and general manufacturing environments. The neutral hand orientation makes it versatile across a range of holder configurations.

Key Features

• TT9080 PVD-coated solid carbide grade with AlTiN and TiN coating for high heat and wear resistance
• 80-degree diamond insert shape (C) with positive rake for reduced cutting forces and clean chip evacuation
• PC chip breaker geometry optimized for stainless steel, steel, and super-alloy/titanium workpieces
• Screw-lock insert holding method for secure, repeatable seating in CCMT toolholders
• Neutral hand orientation for flexible use in both right-hand and left-hand holder applications
• ISO-standard geometry coded CCMT060204PC TT9080 for cross-reference with global toolholder systems

Compatibility

Designed for use in standard CCMT-compatible screw-lock turning toolholders accepting a 1/4-inch inscribed circle insert. ANSI code CCMT21.51PC TT9080; ISO code CCMT060204PC TT9080.

Installation Notes

Installation is performed by a machinist or tooling technician on a lathe or turning center. Power down and de-energize the machine before indexing or replacing inserts. Seat the insert firmly against the toolholder pocket and tighten the clamping screw to the toolholder manufacturer's specified torque using the appropriate Torx or hex key. Inspect the insert seat and shim for debris or damage before seating a new insert to ensure accurate tool-tip positioning.
