Ingersoll Cutting Tools 5522304 Dcmt Turning Insert TT9080

Product Description

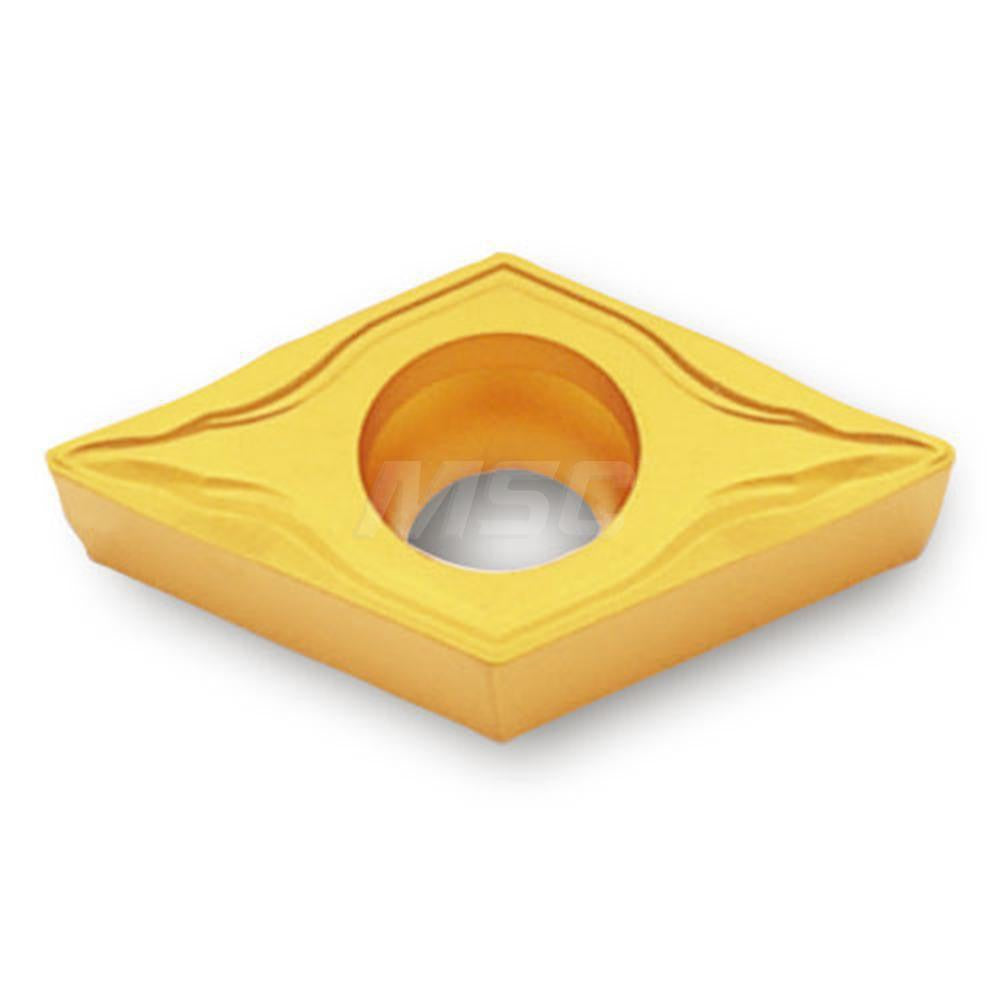

The INGERSOLL CUTTING TOOLS 5522304 is a DCMT-style carbide turning insert designed for precision external and internal turning operations on CNC and manual lathes. It features a diamond insert shape with a 55-degree included angle, a 7-degree relief angle, and a 0.016-inch corner radius. The TT9080 grade substrate is coated with AlTiN (Aluminum Titanium Nitride) via a PVD process, delivering thermal resistance and hardness at the cutting edge. With a positive rake geometry and FG chip breaker, this insert promotes controlled chip evacuation and reduced cutting forces. Licensed machinists and CNC operators working in job shops or production environments are the primary users.

This insert is suited for turning steel, stainless steel, superalloy, and titanium workpieces, corresponding to ISO material codes P, M, S. The FG chip breaker geometry is optimized for finishing and light semi-finishing passes, making it appropriate for tight-tolerance surface finish requirements. The screw-lock holding method (Clearance Code C, Tolerance Code M) provides secure seating in compatible DCMT toolholders used in production turning cells or manual turning applications where consistent depth of cut and dimensional accuracy are required.

Key Features

• DCMT diamond insert shape with 55-degree included angle for versatile turning geometry
• TT9080 grade with PVD-applied AlTiN coating for extended tool life on difficult-to-machine alloys
• Positive rake angle reduces cutting forces and minimizes heat generation at the workpiece
• FG chip breaker promotes controlled chip formation during finishing passes
• Screw-lock insert holding method ensures repeatable, secure seating in the toolholder pocket
• Neutral hand orientation for flexible use in both right- and left-hand turning setups

Compatibility

Designed for use in DCMT-style toolholders accepting a 3/8-inch inscribed circle insert. ISO designation for this insert is DCMT11T304FG TT9080. Verify toolholder pocket geometry, clearance code, and tolerance code before installation.

Installation Notes
