Ingersoll Cutting Tools 5513934 Turning Insert K10 Carbide

Product Description

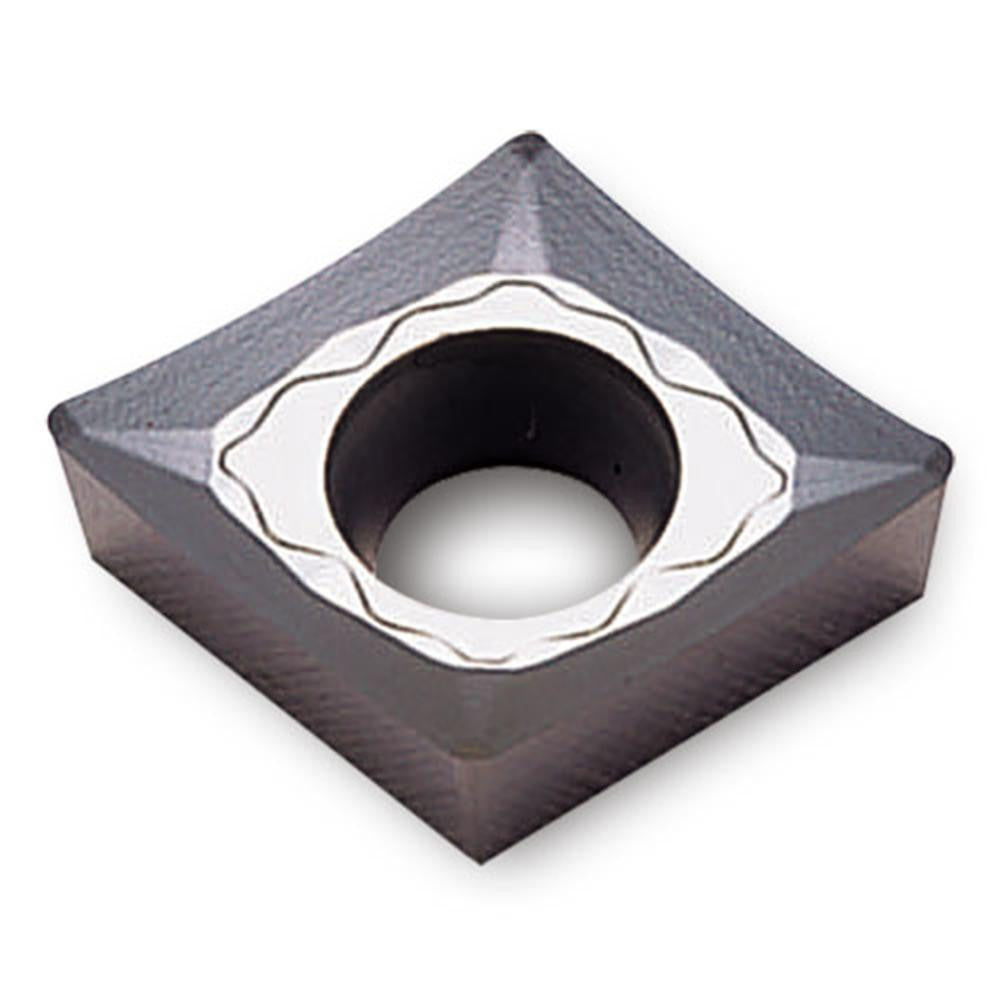

The INGERSOLL CUTTING TOOLS 5513934 is a solid carbide turning insert designed for precision metal cutting operations on lathes and turning centers. Manufactured to ANSI insert code CCGT21.50.5 and ISO insert code CCGT060202, this insert features an 80-degree diamond (rhombic) shape with a positive rake and positive side clearance geometry. It carries a K10 grade designation, indicating an uncoated, bright-finish carbide formulation engineered for high wear-resistance across cast iron, superalloys, titanium, and non-ferrous metals. With a 0.254-inch insert length, a 1/4-inch inscribed circle, and a 0.008-inch corner radius, this insert suits finish to medium roughing work. It is screw-held and neutral-handed, fitting standard CCGT-style toolholders used by machinists and CNC turning professionals.

This insert is suited for use on CNC and manual lathes in both job shop and production environments. It targets applications involving cast iron components, superalloy and titanium workpieces, and non-ferrous metals such as aluminum and copper alloys. The FL chip breaker geometry supports roughing and medium machining passes, controlling chip flow across a range of feed rates and depths. With a maximum depth of cut of 0.129 inches, it works well in moderate material removal scenarios where edge integrity and surface finish consistency are priorities. Licensed machinists and CNC operators in aerospace, automotive, and general manufacturing will find this insert appropriate for demanding turning assignments.

Key Features

• ANSI code CCGT21.50.5 and ISO code CCGT060202FL K10 for straightforward toolholder matching
• 80-degree diamond insert shape with positive rake and positive side clearance for clean chip action
• K10 uncoated solid carbide grade with high wear-resistance on cast iron, superalloys, titanium, and non-ferrous metals
• FL chip breaker supports roughing and medium machining operations
• 0.008-inch corner radius balances edge strength with surface finish quality
• Neutral hand orientation and screw-held mounting for versatile setup in standard CCGT toolholders

Compatibility

Designed as an OEM-style replacement and direct-fit insert for standard CCGT-series screw-clamp turning toolholders accepting a 1/4-inch inscribed circle, ANSI size code 21.50.5, ISO size code 060202 insert geometry.

Installation Notes

Installation is performed by a qualified machinist or CNC technician. Power down and lock out the machine before seating or indexing the insert. Use the manufacturer-specified torx or hex key to secure the clamping screw to the toolholder without overtightening, which can fracture carbide. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
