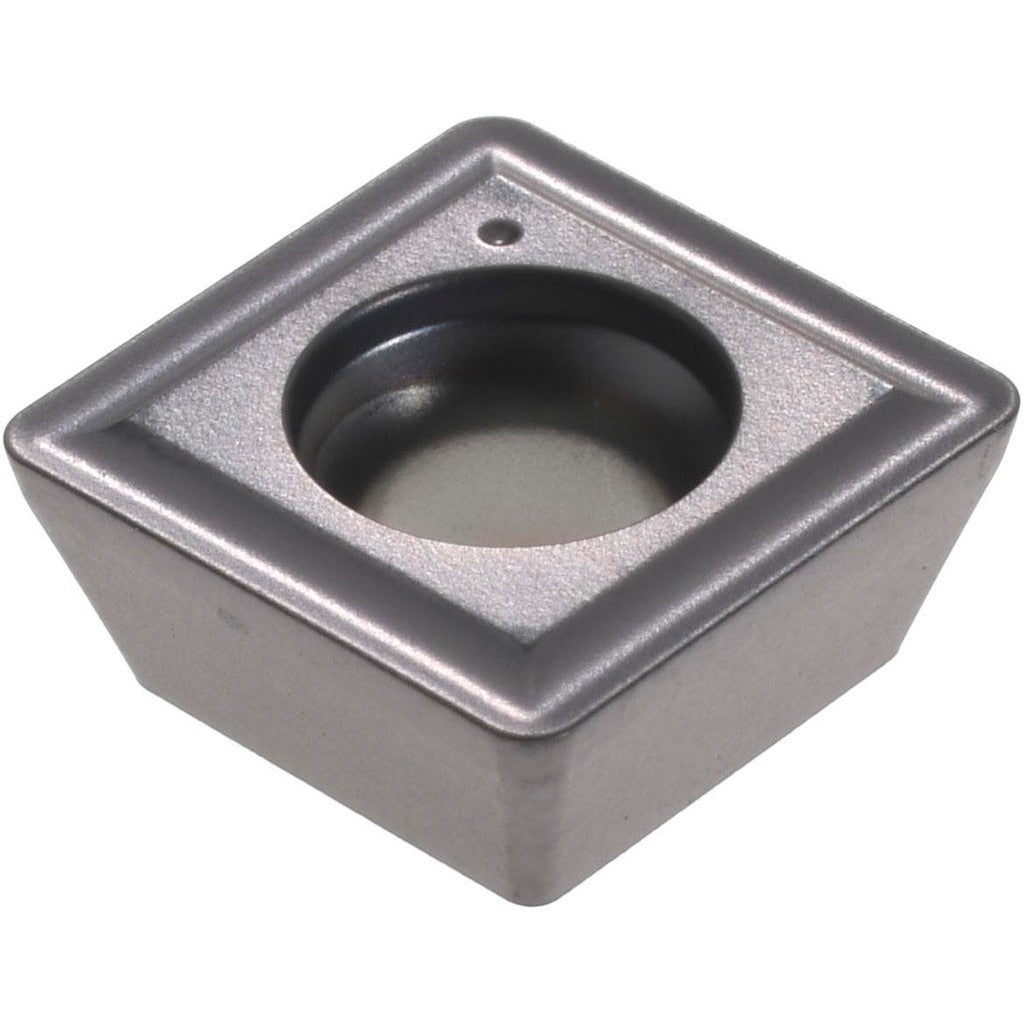

Ingersoll Cutting Tools 5140193 Indexable Drill Insert

Product Description

The INGERSOLL CUTTING TOOLS 5140193 is a square carbide indexable drill insert engineered for high-performance drilling applications in demanding machining environments. Manufactured to the SHLT090408N-PH1 ANSI and ISO standard, this insert carries the IN2005 grade designation and features a TiAlN coating applied via PVD process. The 0.386-inch inscribed circle and 0.175-inch thickness place it in the 09 insert size class. The PH1 chipbreaker geometry and positive rake angle promote efficient chip evacuation and reduced cutting forces. Designed for use in compatible Q-style indexable drill bodies, this insert is sold individually with a minimum order quantity of 10.

This insert is suited for a wide range of primary workpiece materials including steel, cast iron, stainless steel, superalloys, titanium, and hard materials, corresponding to ISO material grades P, M, K, S, and H. It is a practical choice for production environments running CNC turning centers or machining centers where indexed inserts are rotated or replaced at regular intervals to maintain consistent hole quality and dimensional accuracy. Each insert provides four cutting edges, maximizing cost-per-edge value in high-volume drilling operations.

Key Features

• Carbide substrate with TiAlN coating via PVD process for wear and heat resistance
• IN2005 manufacturer grade rated for steel, cast iron, stainless steel, superalloys, titanium, and hard materials
• Four cutting edges per insert for extended tool life and lower cost per edge
• PH1 chipbreaker with positive rake geometry for efficient chip control and reduced cutting forces
• 0.386-inch inscribed circle, 0.175-inch thickness, 0.03-inch corner radius per SHLT090408N-PH1 standard
• Compatible with Q-style indexable drill bodies

Compatibility

Designed for use with Q-style compatible indexable drill bodies in the SHLT-N-PH1 series. ANSI and ISO designation SHLT090408N-PH1 should be cross-referenced against the drill body manufacturer specifications to confirm fitment.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or rotating the insert. Use the correct torx or insert-clamp key specified by the drill body manufacturer to secure the insert at the proper clamping force. Inspect the insert pocket and clamping mechanism for wear or debris before each insert change to ensure proper seating and accurate hole geometry.
