Ingersoll Cutting Tools 5120071 Replaceable Drill Tip 17mm

Product Description

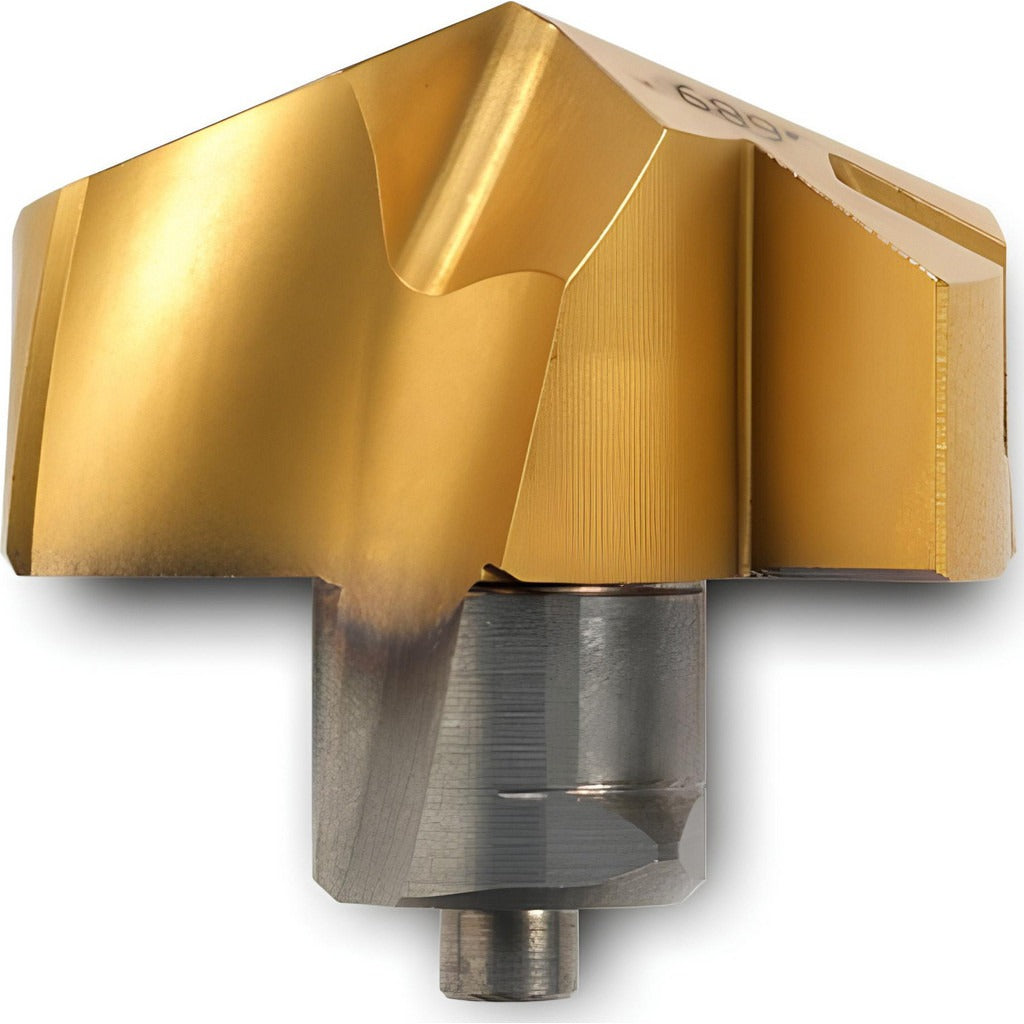

The INGERSOLL CUTTING TOOLS 5120071 is a replaceable drill tip designed for high-productivity drilling applications in steel and similar materials. Built to the TPA1710R01 IN2505 specification, this tip features a 17.00 mm cutting diameter and a 140-degree point angle for efficient chip formation and accurate entry. The solid carbide construction is PVD-coated with TiAlN and TiN layers, providing heat resistance and extended tool life under demanding cutting conditions. Coolant-through capability delivers cutting fluid directly to the cutting edge, improving chip evacuation and reducing thermal buildup. This tip is intended for use by machinists and tool room professionals working with CNC drilling equipment.

This replaceable tip is suited for drilling and spot drilling operations in steel workpieces classified under ISO material grade P15 to P30. It installs into compatible TPA-series drill bodies using a clamp-style holding method and is sized for Insert Seat Size 17. The helical, regular-spiral flute geometry with two flutes promotes controlled chip removal during through-hole and blind-hole operations in production and job-shop environments.

Key Features

• 17.00 mm cutting diameter with 140-degree standard point angle for accurate drill entry
• Solid carbide construction with PVD-applied TiAlN and TiN coating for heat and wear resistance
• Coolant-through design channels fluid directly to the cutting zone for improved chip evacuation
• Two helical flutes with regular spiral geometry for consistent chip flow
• Clamp-style insert holding method for secure, repeatable tip seating
• ANSI-standard geometry; compatible with TPA-series drill body, Insert Seat Size 17

Compatibility

Designed for use with TPA-series drill bodies requiring Insert Seat Size 17. Optimized for primary workpiece materials classified as steel (ISO P-code: P15 to P30).

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered off and in a locked-out state. Seat surfaces on both the tip and drill body should be clean and free of chips or debris before seating the tip. Use the appropriate torque tool as specified by the drill body manufacturer for the clamp fastener - do not overtighten, as this can damage the carbide tip or seat. Verify coolant-through passages are clear and unobstructed before returning the tool to service.
